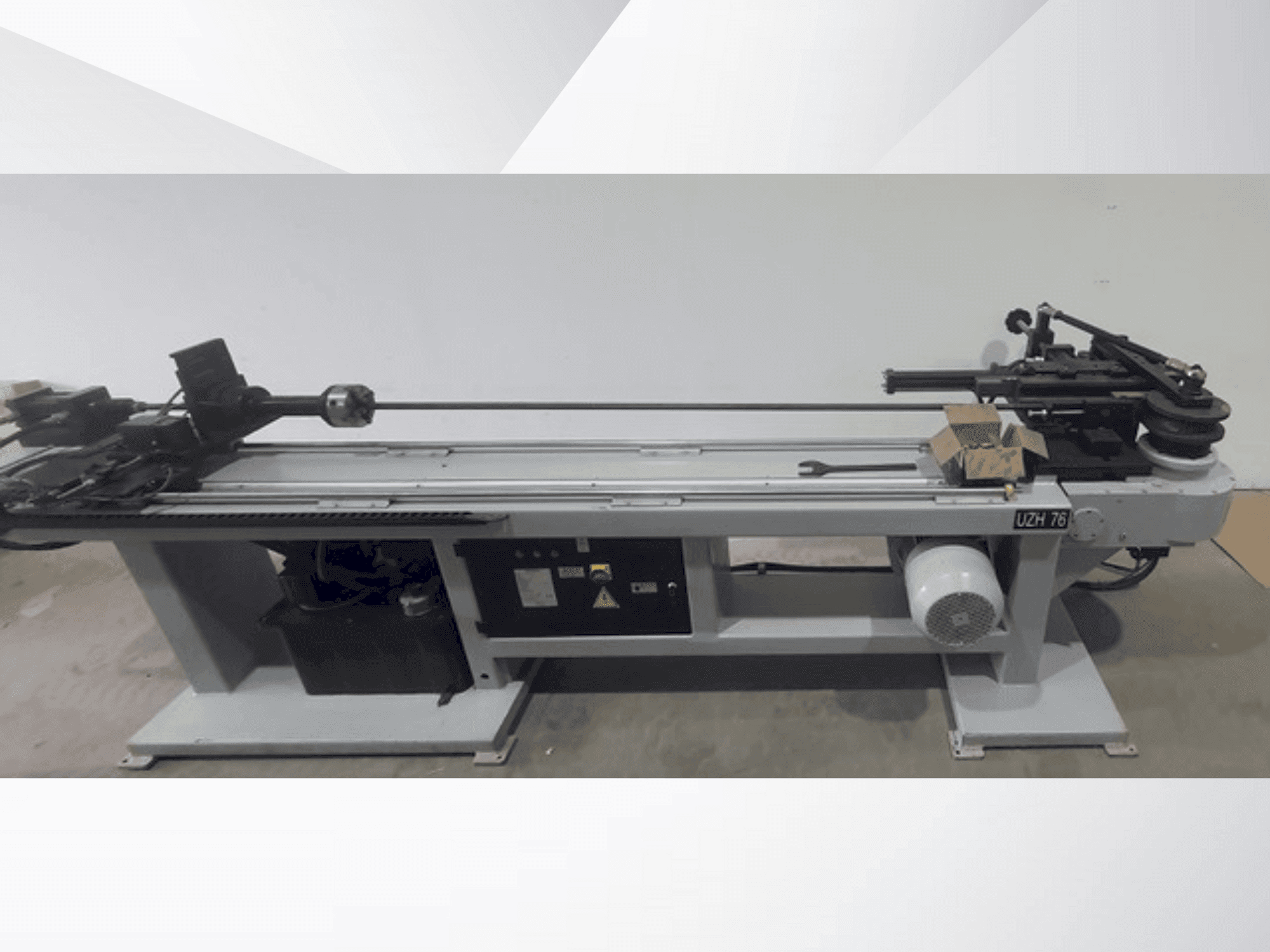

This UZMA MAKINA UZH76 was manufactured in 2016. It features a maximum tube diameter of 76 mm, a bending radius of 250 mm, and a wall thickness capacity of 4 mm. The bending angle reaches up to 190° with a speed of 48°/sec. Powered by a 13 kW total motor capacity and a hydraulic pressure of 140 bar. Consider the opportunity to buy this UZMA MAKINA UZH76 plate rolling machine. Contact us for more information.
Overview
- brand: UZMA
- year: 2016
- MODEL: MAKINA UZH76
- application type: Rolling
- Location: Hungary
- machine type: Plate Rolling Machine
Technical Information - UZMA MAKINA UZH76
Dimensions
- Machine Depth: 4400 mm
- Machine Height: 1200 mm
- Machine Weight: 1800 kg
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Maximum hydraulic pressure (bar): 140
- Oil tank capacity (l): 65
- Tool height (mm): 100
- Mandrel length (mm): 3150
- Working height (mm): 1030
Technical Machine Benefits
- Voltage frequency: 380v/50hz/trifaze
- Control voltage: 24v dc
- Hydraulic motor power (kw): 5. 5
- Main drive motor power (kw): 7. 5
- Maximum bending speed (°/s): 48
- Maximum bending angle (°): 190
- Bending direction: right
- Maximum tube diameter (mm): 76
- Maximum bending radius (mm): 250
- Maximum wall thickness (mm): 4
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
