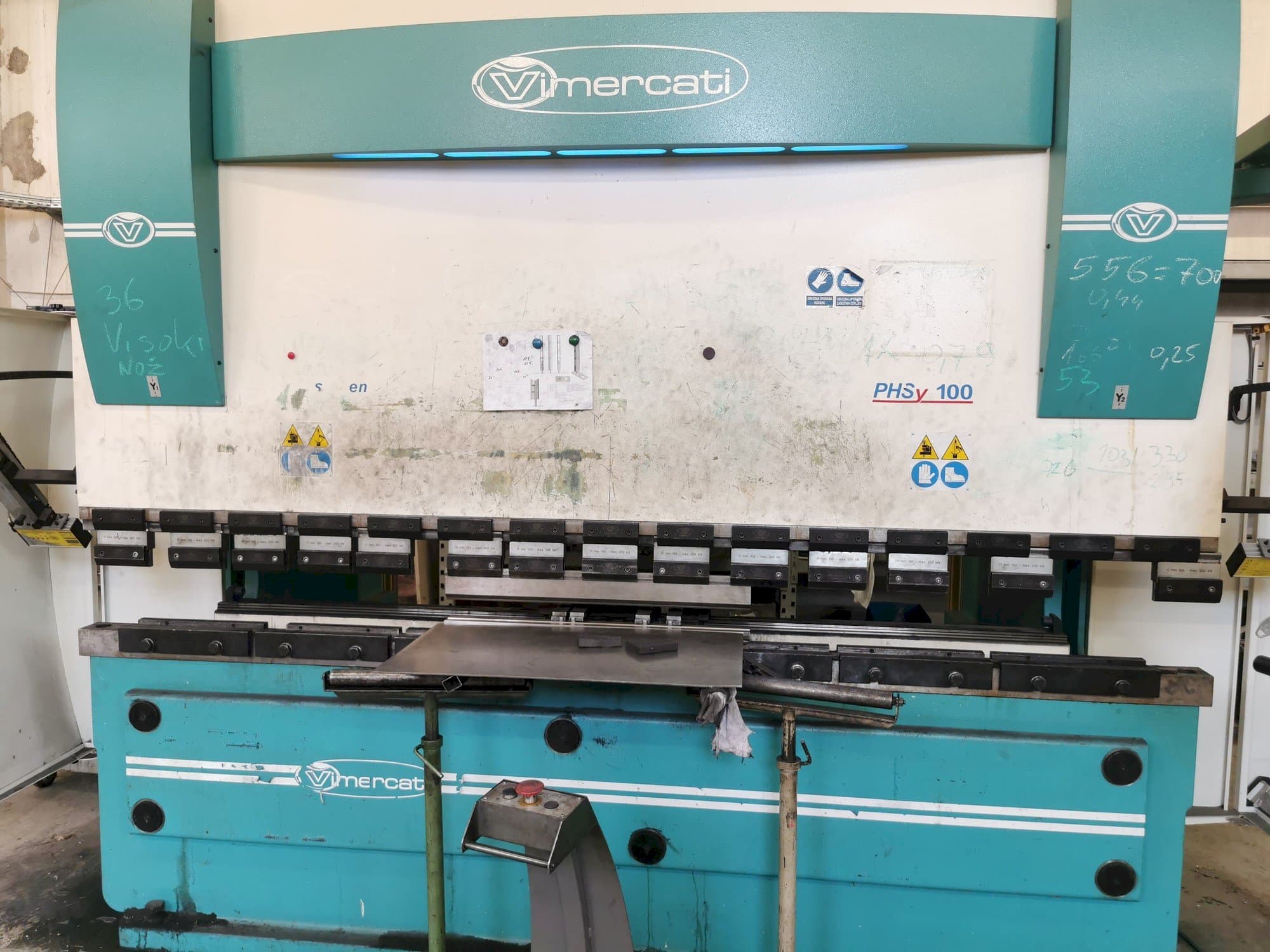

Front view of Vimercati PHSY 100x3050  machine

Vimercati - PHSY 100x3050SI-BEN-VIM-2006-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This Vimercati PHSY 100x3050 Bending machine was manufactured in the year 2006 in Italy and has 11186 production hours. It is equipped with a CYBELEC ModEva 10S control unit. The machine has a pressing force of 800 kN and a bending length of 3050 mm.


  • brand: Vimercati
  • year: 2006
  • MODEL: PHSY 100x3050
  • production hours: 11186
  • application type: Bending
  • Location: Slovenia
  • machine type: Bending machines
  • availability: Sold
  • control unit brand: CYBELEC

Technical Information - Vimercati PHSY 100x3050

General Data

  • Measurements width: 1900 mm
  • Measurements depth: 3650 mm
  • Measurements height: 3000 mm
  • Machine weight: 9000 kg

Control Unit

  • Brand: CYBELEC
  • Model: ModEva 10S

Main drive

  • Pressing force: 800 kN
  • Bending length: 3050 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between uprights: 2550 mm
      • - Max. Distance between work bench: 380 mm
      • - Blade stroke: 200 mm
      • - Approach speed: 100 mm/s
      • - Work speed: 0,10 mm/s
      • - Return speed: 120 mm/s
      • - X axis assembly stroke: 500 mm
      • - R axis assembly stroke: 150 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
