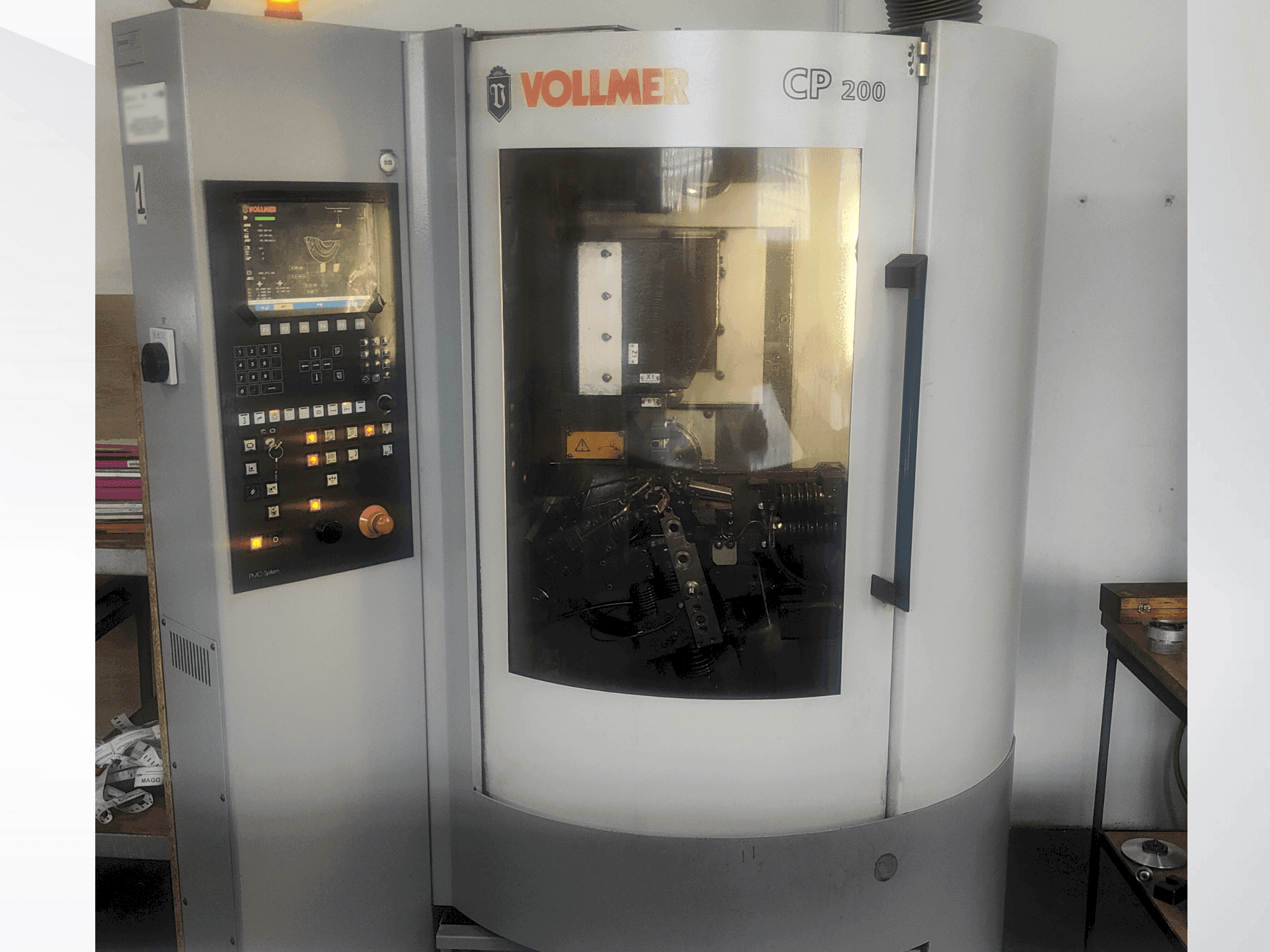

Front view of VOLLMER CP 200  machine

VOLLMER - CP 200PL-GRI-VOL-2013-00001

40,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This grinding machine was manufactured in 2013. It is designed for face and top grinding of TCT circular saw blades, accommodating blade diameters from 80 to 650 mm and tooth pitches from 6 to 100 mm. Features include adjustable hook angles from -10° to +30° and clearance angles from 5° to 25°. It supports a grinding wheel diameter of 125 mm and operates at speeds up to 20 teeth/min. For more information about this grinding machine, please reach out to us.

Overview

  • brand: VOLLMER
  • year: 2013
  • MODEL: CP 200
  • production hours: 14044
  • application type: Grinding
  • Location: Poland
  • machine type: Grinding Machine
  • availability: Immeditely

Technical Information - VOLLMER CP 200

General Data

  • Measurements width: 960 MM
  • Measurements depth: 1502 MM
  • Measurements height: 1900 MM
  • Machine weight: 850 KG

    Additional Equipment

    • - Coolant System: Coolant tank capacity: approx. 125 liters

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Bevel grinding:tooth top angle: up to 45°
        • - Tooth face angle: up to 15°
        • - Tooth height difference: as required
        • - Grinding wheel:outside diameter: 125 mm
        • - Bore diameter: from 32 mm
        • - Peripheral speed: approx. 27 m/s
        • - Grinding speed: 0. 1 mm/s to 20 mm/s
        • - Working speed: up to 20 teeth/min

      Extra information

      • - Circular Sawblade: Outside diameter: 80 to 650 mm Bore diameter: from 10 mm Blade thickness: < 5 mm Tooth pitch: 6 to 100 mm Grinding path length: < 20 mm Hook angle: -10° to +30° Clearance angle: 5° to 25°

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
