VOUMARD - 203 C 31RO-GRI-VOU-1985-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used VOUMARD 203 C 31 For Sale | gindumac.com

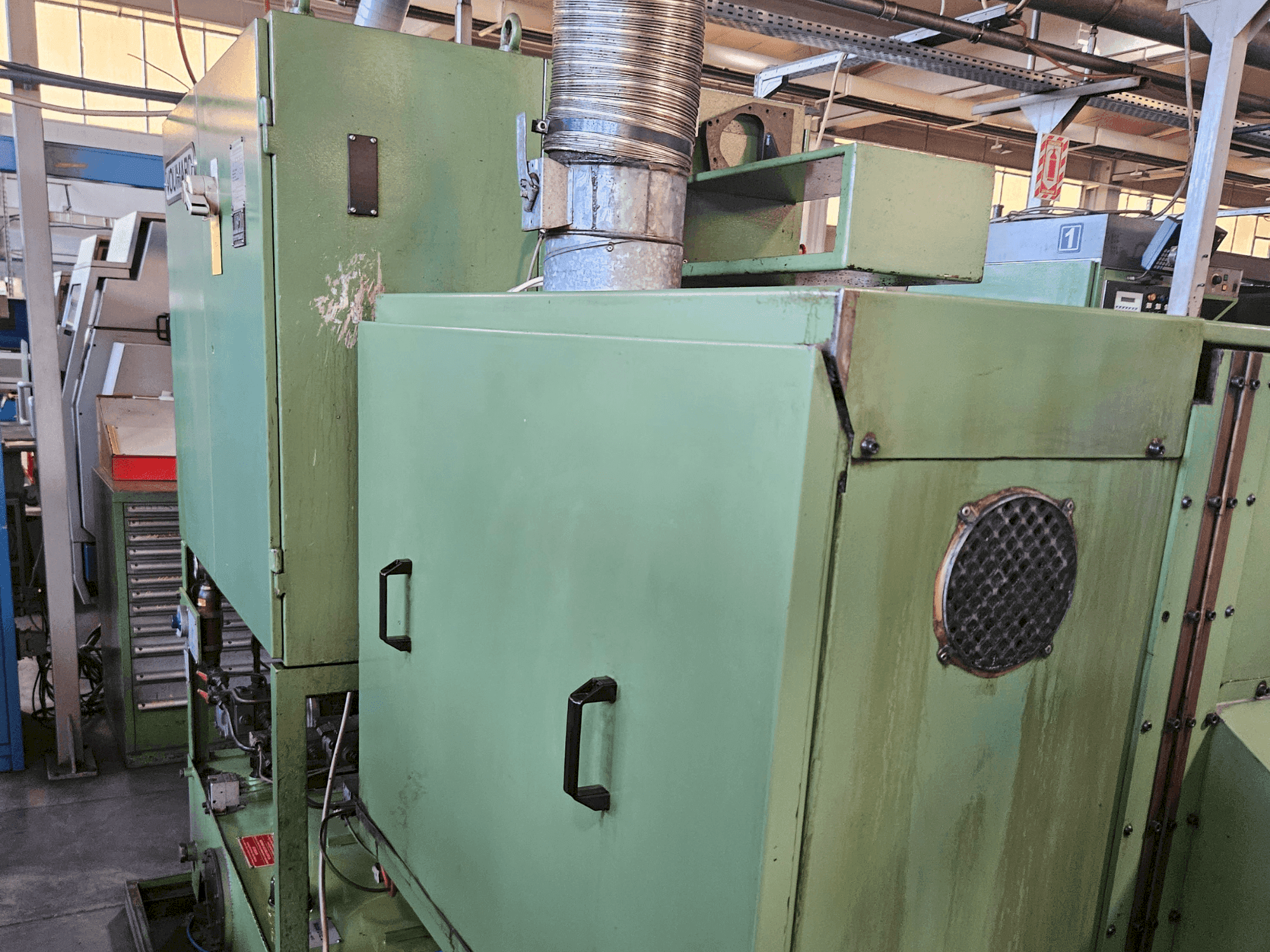

This VOUMARD 203 C 31 was manufactured in 1985. It features a swing diameter of up to 380 mm, internal grinding capacity ranging from 5 mm to 120 mm, and a grinding depth of 160 mm. The spindle speed reaches up to 6,000 RPM, supported by a powerful 9-15 kW motor. Ideal for precise internal grinding tasks. Contact us for more information.
Overview
- brand: VOUMARD
- year: 1985
- MODEL: 203 C 31
- application type: Grinding
- Location: Romania
- machine type: Internal Grinding Machine
- availability: Immediately
Technical Information - VOUMARD 203 C 31
General Data
- Measurements width: 1700 mm
- Measurements depth: 2200 mm
- Measurements height: 1800 mm
- Machine weight: 4500 kg
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 9 kW - 15 kW
Workpiece
- Workpiece drm over bed: 380 mm
Additional Information
- Technical Machine Benefits:
- - Table travel longitudinal (z): 300–550 mm
- - Table travel transverse (x): 100 mm
- - Swing diameter over table: 380 mm
- - Swing over ways: 380 mm
- - Spindle through-hole: 30 mm
- - Internal grinding capacity min: 5 mm
- - Internal grinding capacity max: 120 mm
- - Grinding depth: 160 mm
- - Electrical supply: 3-phase, 380 v, 50 hz; plate rated 35 a
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
