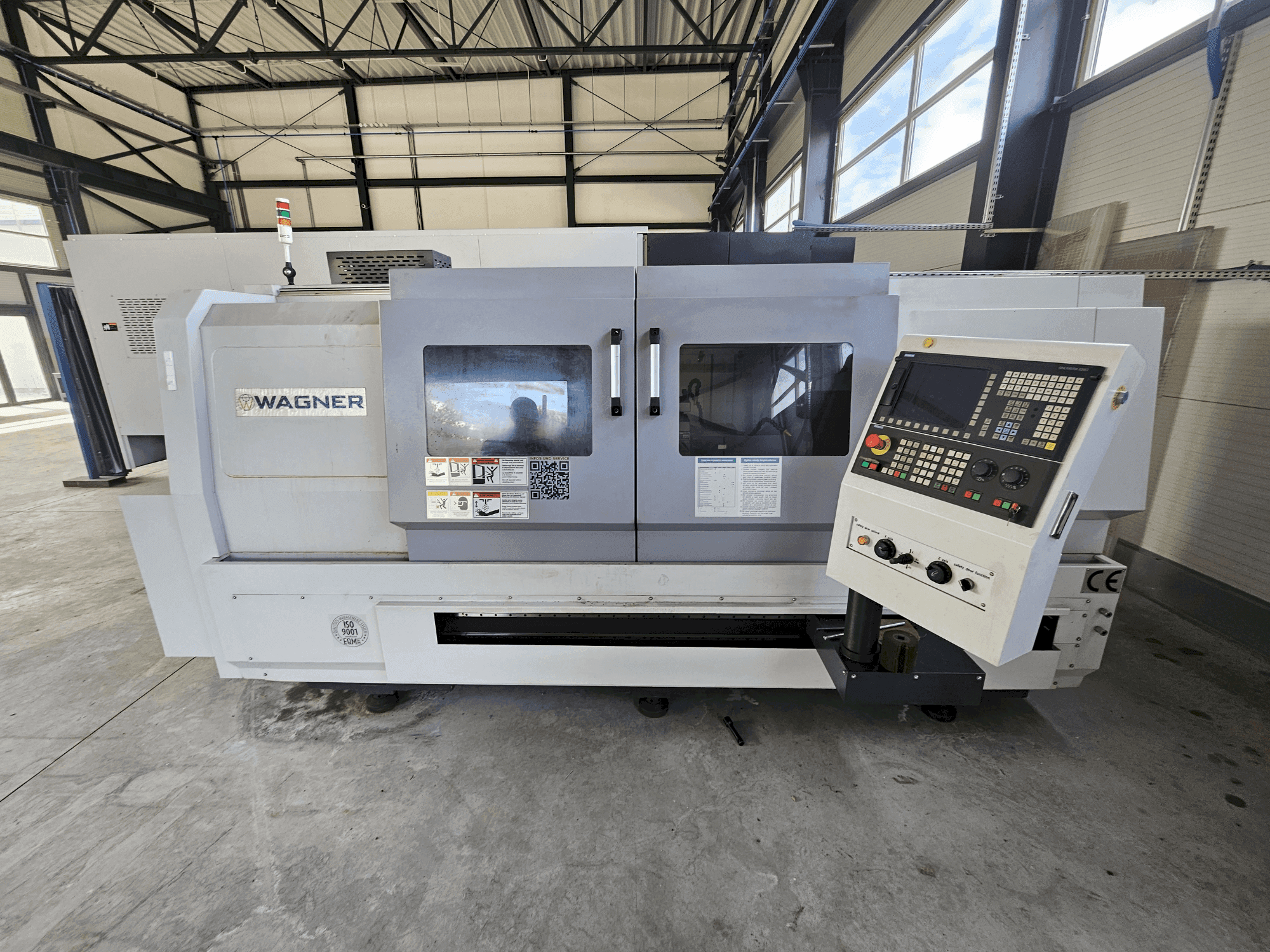

This Wagner WDE 500 PLUS was manufactured in 2021. It features a max turning diameter over bed of 500 mm and a spindle speed range up to 2200 rpm. Equipped with Siemens 828 B-T control for enhanced precision and a spindle motor power of 15 kW. Ideal for robust turning operations. Machine dimensions are 3400 × 1600 × 2100 mm, weighing approximately 5000 kg. For more information about this machine, please reach out to us.
Overview
- brand: WAGNER
- year: 2021
- MODEL: WDE 500 PLUS
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - WAGNER WDE 500 PLUS
General Data
- Measurements width: 1600 mm
- Measurements depth: 3400 mm
- Measurements height: 2100 mm
- Machine weight: 5000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 8287D
Main drive
- Spindle speed range: 20 – 2200 1/MIN
- Spindle motor power: 15 kW
- Spindle bore: 81 mm
- Number of axis: 2
Movement
- X-AXIS Movement: 280 mm
- Z-AXIS Movement: 1435 mm
Workpiece
- Workpiece drm over bed: 500 mm
- Workpiece drm over support: 260 mm
Tail Stock
- Pinol diameter: 75 mm
- Pinol tool taper: MK 5
General Data
- Measurements width: 1600 mm
- Measurements depth: 3400 mm
- Measurements height: 2100 mm
- Machine weight: 5000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 8287D
Main drive
- Spindle speed range: 20 – 2200 1/MIN
- Spindle motor power: 15 kW
- Spindle bore: 81 mm
- Number of axis: 2
Movement
- X-AXIS Movement: 280 mm
- Z-AXIS Movement: 1435 mm
Workpiece
- Workpiece drm over bed: 500 mm
- Workpiece drm over support: 260 mm
Tail Stock
- Pinol diameter: 75 mm
- Pinol tool taper: MK 5
Additional Information
- Technical Machine Benefits:
- - Right and left spindle rotation
- - Rapid feed (z, x axes): 15000 mm/min
- - Repeatability accuracy: ±0. 005 mm
- - Positioning accuracy: ±0. 01 mm
- - Max. Distance between centers: 1500 mm
- - Bed width: 500 mm
- - Spindle nose camlock: din 55029 kk8
- - Linear guides on x and z axes
- - Precision ball screws, hardened and ground
- - Telescopic cover on z-axis
- Qualitative Machine Benefits:
- - Machine in very good condition, with very low working hours
- - Tail Stock Tailstock adjustment: manual Tailstock quill travel: 100 mm Mount Position (Assembly) Electronic handwheels with incremental preselection Feed lever with latch function Rapid feed override with selector switch Movable operator panel Constant cutting speed Media Automatic central lubrication Work lamp Complete coolant system Enclosure with 2 sliding doors and safety glass windows 1 set of foundation bolts CE compliance Control Unit Siemens 828 B-T control ShopTurn operation with Manual Machine mode
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
