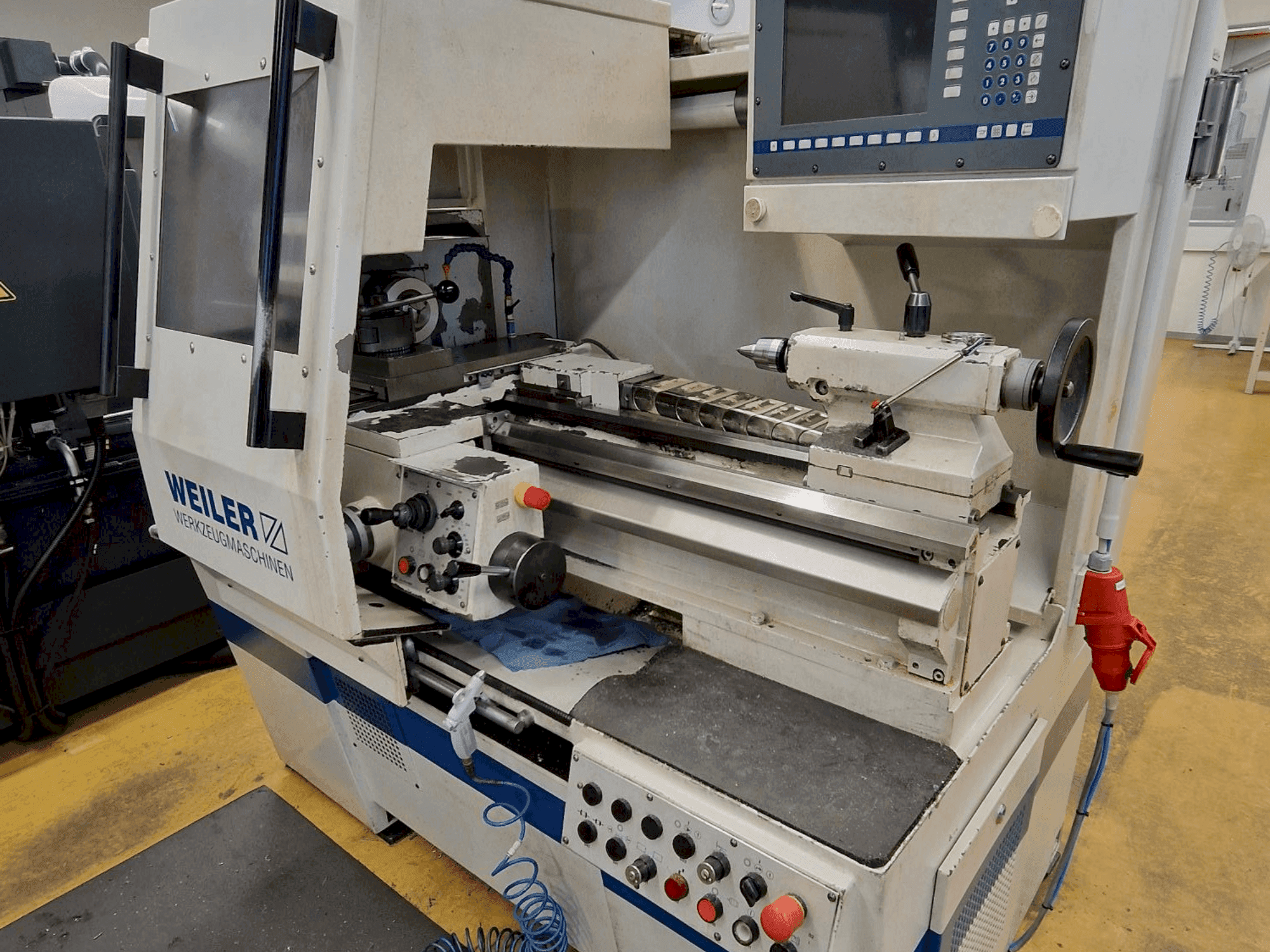

Weiler - E30DE-TUR-WEI-1990-00001

Additional equipment

• Multifix holder B mounted
• Fixed steady rest (option) clamping range: 15-100 mm
• Moving steady rest (option) clamping range: 10-85 mm
• Collets ranging from 3-28 mm (increments of 0.5 mm)
• Tailstock with an MK3 chuck

Machine Benefits

Technical Machine Benefits

• Drive power 100% / 60% ed: 9/11 kw
• Max. Torque on the turning spindle: 180 nm
• Total speed range: 1-4500 min⁻¹
• Feed drive: three-phase ac feed drives
• Feed range longitudinal: 0-20 mm/rev
• Ellganggeschwindghell longitudinal/plan: 10/7. 5/5/3. 5 m/min
• Quill diameter: 50 mm
• Quill stroke: 110 mm
• Inner taper of quill: mk 3

Extra Information

Swing diameter over facing slide: 160 mm Bed width: 240 mm Sliding movement of the facing slide: 180 mm Bed slide guide length: 395 mm Turning tool cross-section (height/width): 20 x 20 mm Spindle head according to DIN 55027 Gr. 5 Spindle diameter in the front bearing: 70 mm Inner taper of the main spindle: Mk 5 Workpiece Metric thread range: 0.1 - 400 mm Inch thread range: G/1" 1/4 - 56 Module thread range: 0.125 - 28 mm DP thread range: 1-224 G/" Number of threads max.: 50
