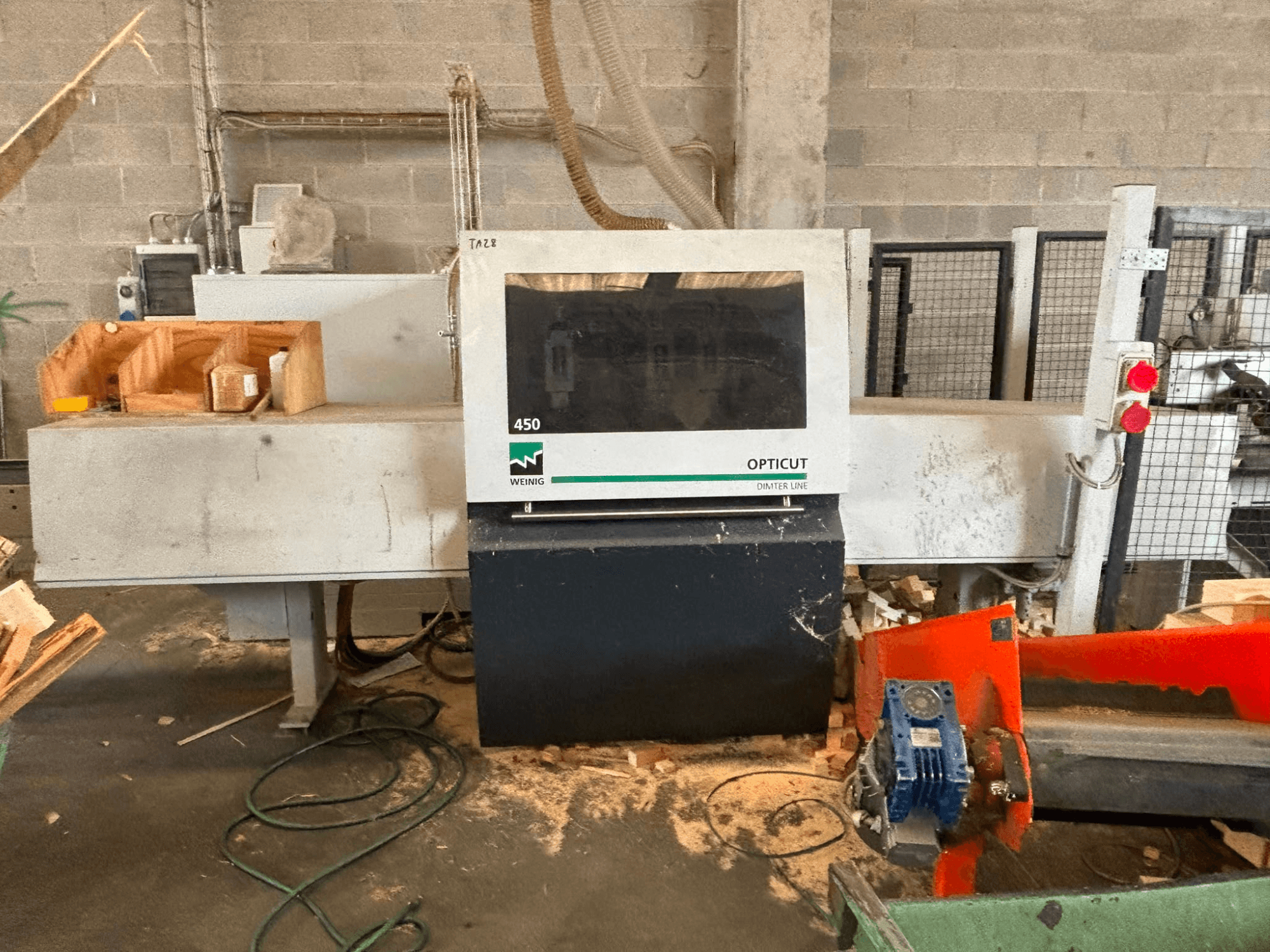

WEINIG / DIMTER - OptiCut 450DE-SAW-WEI-2019-00001

Working Height: 900 mm

Feed Direction: Left-hand feed

Blade Diameter: 500 mm

Blade Bore: 30 mm

Input Length, Min.: 500 mm

Input Length, Max.: 6,300 mm

Wood Width, Min.: 30 mm

Wood Width, Max.: 310 mm

Wood Thickness, Min.: 12 mm

Wood Thickness, Max.: 120 mm

Maximum Rectangular Wood Section: 310 × 12 mm

Maximum Rectangular Wood Section: 190 × 120 mm

Minimum Fixed Length After Sawing: 150 mm

Minimum Fixed Length at End of Board: 180 mm

Maximum Board Curvature: 10 mm/m

Length Tolerance: ±3 mm

Cutting Thickness Accuracy: ±0.8–1.5 mm

Feed Speed, Continuously Adjustable: Max. 300 m/min

Cutting Cycle Time, Including Braking and Acceleration: 0.6–1.0 sec.

Saw Motor Power: 7.5 kW (10 HP)

Feed Motor Power: 5.0 kW (7 HP)

Vario Conveyor Motor Power: 2.5 kW (3.4 HP)

Electrical Connection: Approx. 18 kW

Operating Voltage: 400 V / 50 Hz

Control Voltage: 230 VAC / 24 VDC

Nominal Current: 30 A

Fuses: 35 A

Compressed Air Consumption: Approx. 1,200 Nl/min

Operating Pressure: Approx. 8 bar

Extraction Air Velocity: Approx. 30 m/sec.

Extraction Air Volume: Approx. 1,800 m³/h

Sorting Conveyor Width: 250 mm

Usable Conveyor Width: 210 mm

Maximum Workpiece Width: 300 mm

Exit Conveyor Length: 7.5 m

Automatic Width Measurement: Laser distance sensors

Width Measurement Accuracy: Max. ±2 mm

Number of Active Products: Max. 16

Minimum Wood Thickness for Measurement: 12 mm

Scrap Pit Width: 250 mm

Maximum Scrap Length: Approx. 120 mm

Heavy-Duty Ejector: For workpieces over 20 kg

Ejector Plate Height: 80 mm

Writing Length: Workpiece length − 10 mm

Control Panel: OptiCom Pro 18.5"

Display Type: Industrial TFT touchscreen

Display Resolution: 1366 × 768 pixels

Front Protection: IP65

Board Infeed Capacity: Up to 6.3 m

Marking Station: 2 marking positions

Marking Bench Length: 5 m

Electrical System: 400 V / 50 Hz

UPS: 24 V supply

Operating Hours: 42,874 h
