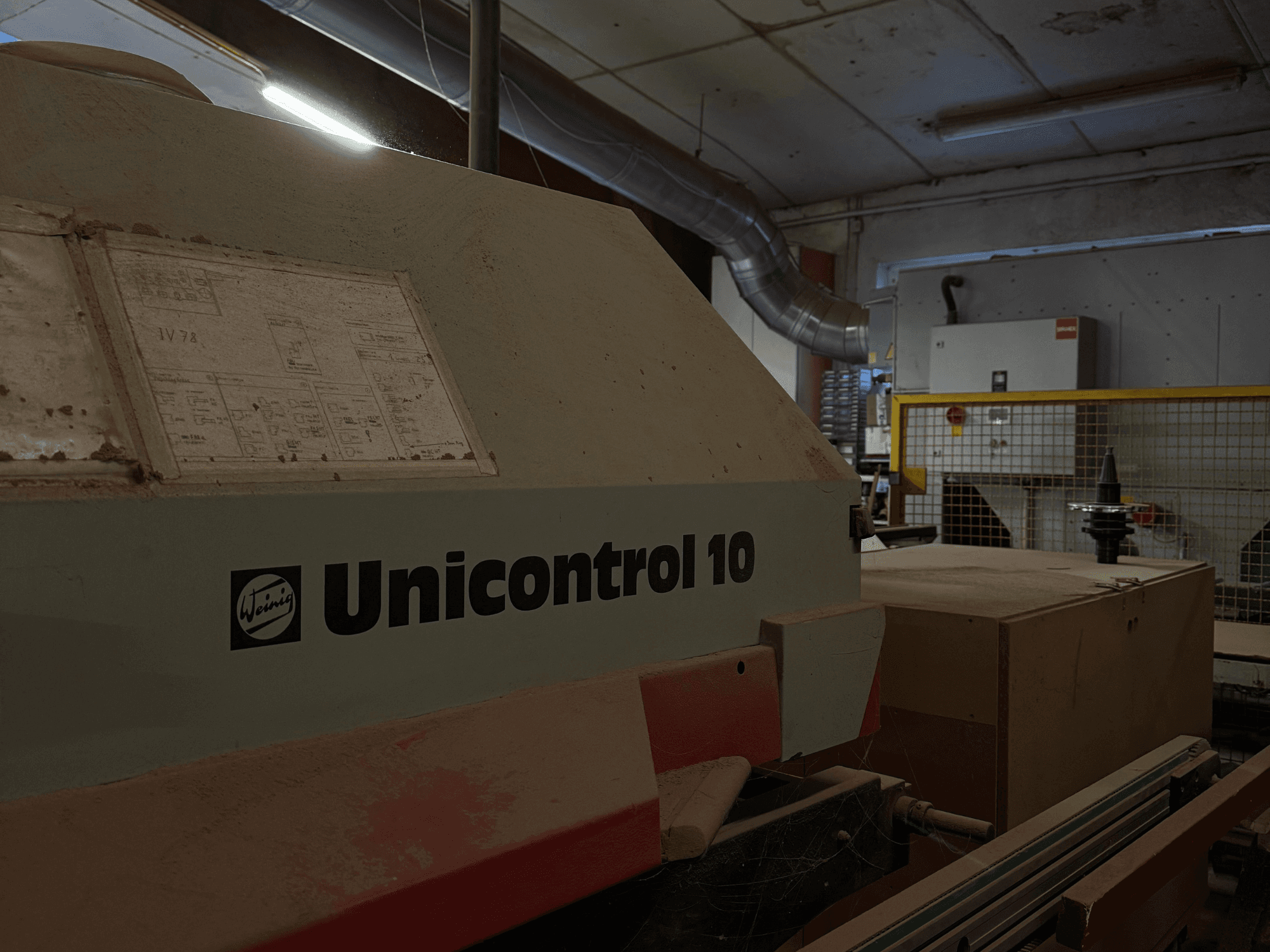

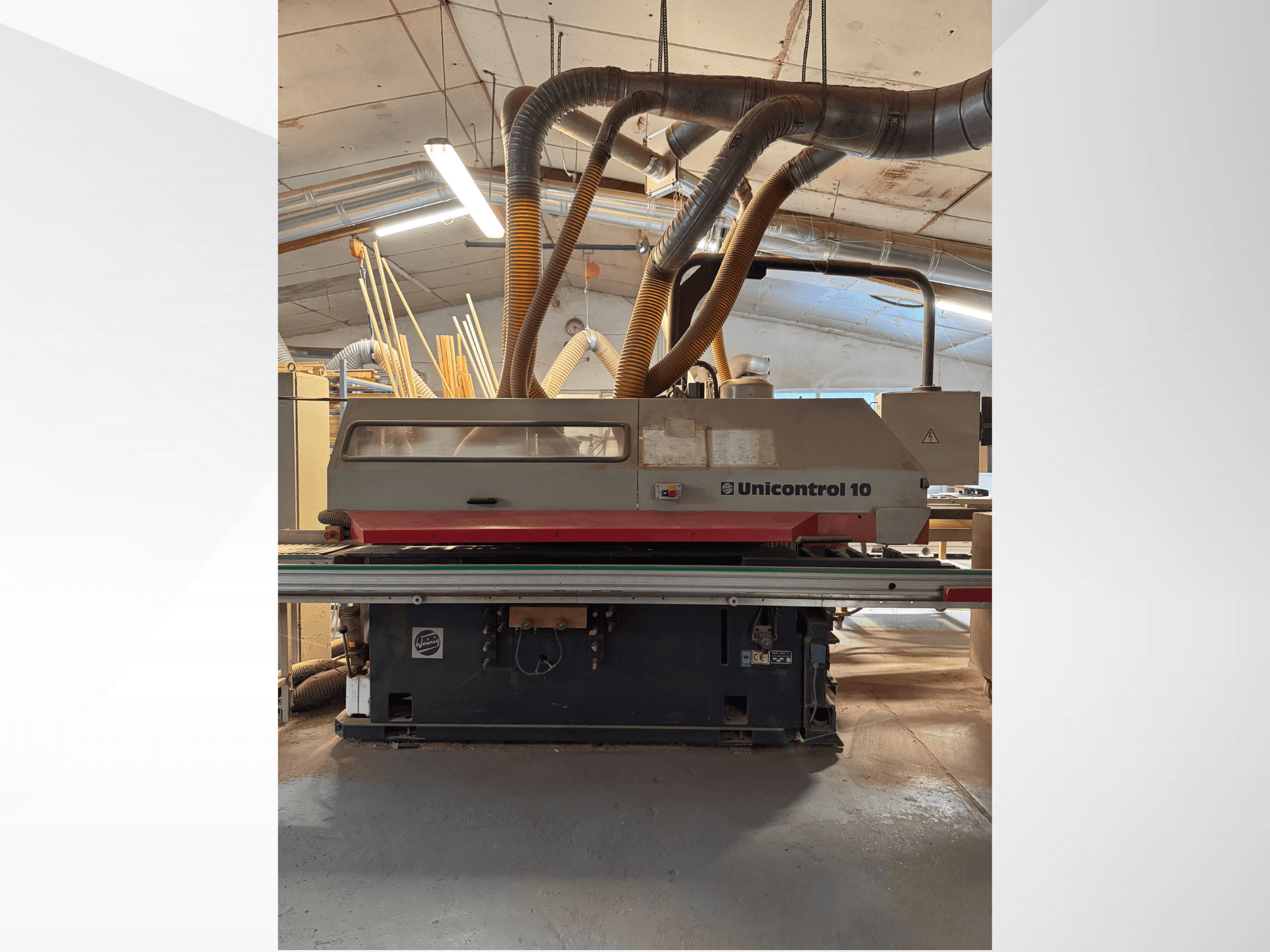

WEINIG / DIMTER - Weinig Unicontrol 10-5DE-MIL-WEI-1998-00001

• Capacities

  • Working width: 40–220 mm

  • Working height (longitudinal machining): 40–100 mm

  • Working height (cross machining): 40–100 mm (counter wood height 80 mm)

  • Workpiece length (longitudinal): min. 220 mm + 2 x tenon length

  • Workpiece length (cross): min. 275 mm + 1 x tenon length with 320 mm tool diameter

• Feed (cross machining)

  • Motor power: 0.3 kW

  • Feed speed: 3–25 m/min

  • Workpiece clamping: 2 clamping claws

  • Length stop: with scale and reading magnifier for frame or sash outer dimensions

  • Counter: pneumatically clocked, 4 positions (not for studio windows), up to wood height max. 80 mm

  • Double part package: single or double part feeding, with cross separation and retention system

    • 1st piece (lying on the stop) wood width: 55–90 mm

    • 2nd piece wood width: 130 mm

• Feed (longitudinal machining)

  • Motor power: 2.2 kW

  • Feed speed: 4–18 m/min (infinitely variable via frequency converter)

  • Feed roller spacing: 100/120 mm

  • Feed roller width: 30/50 mm

  • Feed roller diameter: 95 mm

• Machining units

  • Crosscut saw

    • Motor power: 3 kW

    • Spindle diameter: 40 mm

    • Spindle speed: 2800 rpm

    • Tool swing: max. 400 mm

    • Axial adjustment: pneumatic against 4-fold turret

  • 1st spindle with tenon and slot

    • Motor power: 11 kW

    • Spindle diameter: 50 mm

    • Spindle speed: 3250 rpm

    • Tool swing: max. 320 mm

    • Tool clamping length: 320 mm

    • Axial adjustment range: 240 mm

    • Number of tools: 4 x 80 mm

    • Axial adjustment: hydraulic

  • 1st profiling spindle

    • Motor power: 11 kW

    • Spindle diameter: 50 mm

    • Spindle speed: 6000 rpm

    • Tool diameter: max. 232 mm

    • Tool zero swing circle: 130–140 mm

    • Tool clamping length: 320 mm

    • Axial/radial adjustment range: 240/80 mm

    • Number of tool positions: 4 x 80 mm

    • Axial adjustment: hydraulic

  • 2nd profiling spindle

    • Motor power: 11 kW

    • Spindle diameter: 50 mm

    • Spindle speed: 6000 rpm

    • Tool diameter: max. 232 mm

    • Tool zero circle: 130–140 mm

    • Tool clamping length: 320 mm

    • Axial/radial adjustment range: 240/80 mm

    • Number of tool positions: 4 x 80 mm

    • Axial adjustment: hydraulic

  • Mechanical spindle brakes

    • For profiling spindle(s)

    • For crosscut saw and profiling/sawing units

  • Profile milling unit (horizontal, top; in front of last profiling spindle)

    • Radially indexed: 2 positions

    • Axially indexed: 2 positions

    • Motor power: 3 kW

    • Spindle diameter: 40 mm

    • Spindle speed: 5850 rpm

    • Tool swing: 130 mm

    • Tool clamping length: 40 mm

    • Axial adjustment range: 52 mm

    • Radial adjustment range: 125 mm

  • Profile milling unit (vertical, right; at end of machine)

    • Radially indexed: 2 positions

    • Axially indexed: 2 positions

    • Motor power: 3 kW

    • Spindle diameter: 40 mm

    • Spindle speed: 5850 rpm

    • Tool swing: 210 mm

    • Tool clamping length: 160 mm

    • Axial adjustment range: 90 mm

    • Radial adjustment range: 100 mm

  • Length tenoning and slotting spindle (640 mm tool clamping length, instead of 320 mm spindle)

    • Motor power: 15 kW

    • Spindle speed: 2925 rpm

    • Number of tool positions: 8 x 80 mm

    • Axial adjustment range: 560 mm

Additional equipment

• Laser guide light for crosscut saw for section detection

• Studio window device

  • Swiveling length stop +/- 60° with electronic digital display and pneumatic clamping

  • Sliding counter bar

  • Special pressure for slanted part production

  • Restriction: wood thickness max. 120 mm

  • At -60°: workpiece width max. 110 mm with 80 mm tenon length, or max. 150 mm with counter profiles

• Milling package

  • Synchronization device with automatic immersion (on 1st profiling spindle)

  • Support rail with sliding belt

  • High/low clocked feed roller up to the 2nd profiling spindle to shorten the milling path

  • Software extension with 100 freely programmable milling types

• Two axially clocked feed rollers opposite both profiling spindles for production of narrow, short parts

• Rung guide

  • Automatically clocked guide bar in the stop for rung production

  • Rung support bar from above in the area of the vertical-right profile milling unit at the end of the machine

• Electronic height adjustment for feed with electronic digital display

• Automatic turning system for one-man operation, including conveyor be
