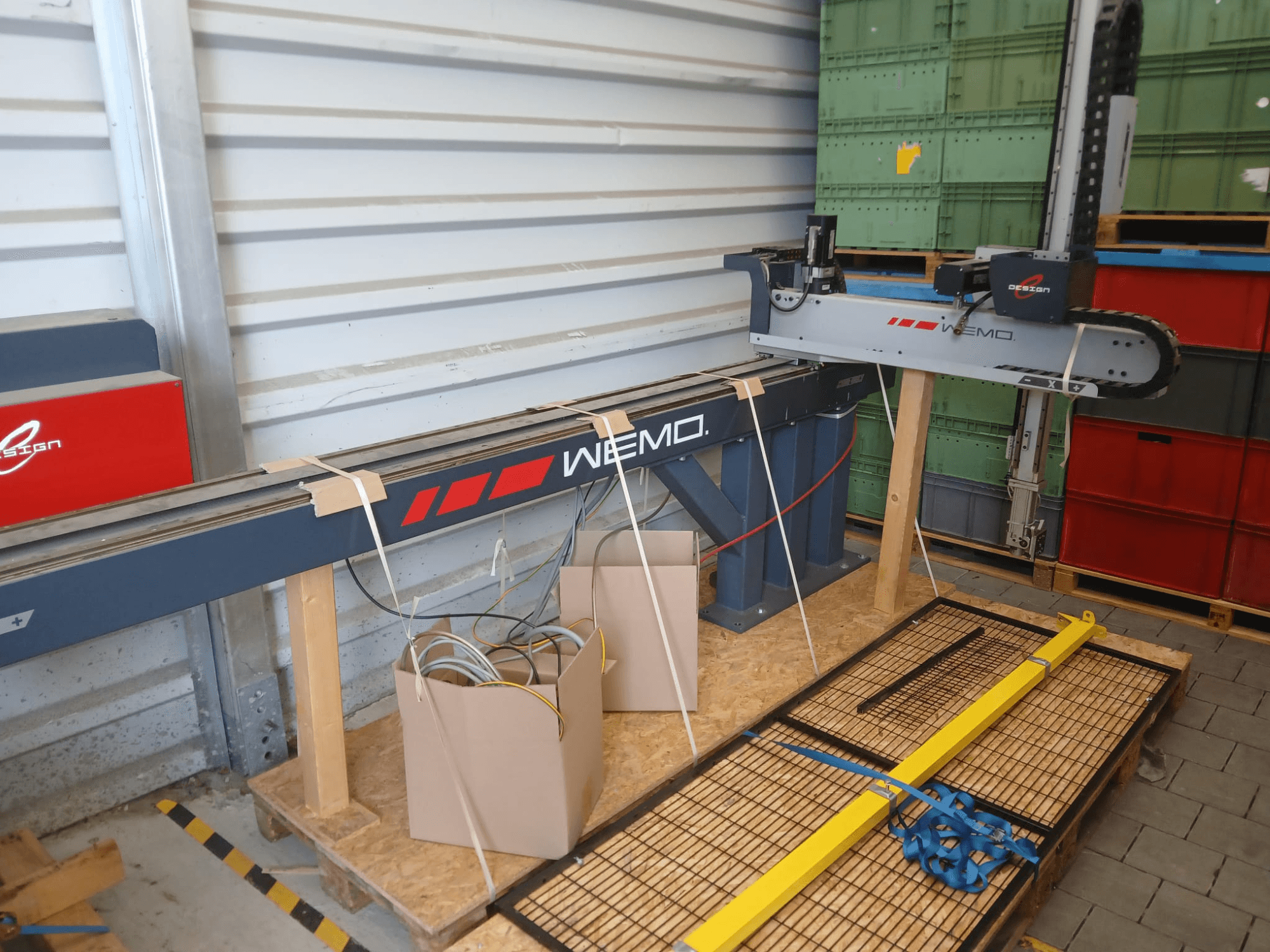

This 3-axis WEMO 16-5 eDesign gantry robot was manufactured in 2019. It features a maximum X-axis stroke of 800 mm, a Y-axis stroke of 1,800 mm, and a Z-axis stroke of 4,550 mm, with a maximum handling weight of 13 kg. Designed for injection molding automation and part handling, consider the opportunity to buy this WEMO 16-5 eDesign gantry robot. Contact us for further details.
Overview
- brand: WEMO
- year: 2019
- MODEL: 16-5 eDesign
- application type: Robotics
- Location: Germany
- machine type: Gantry Robot
Technical Information - WEMO 16-5 eDesign
Movement
- Number of Axes: 3
Technical Specification
- Max. Handling Weight: 13 kg
Additional Information
Robot Type: Gantry Robot (Top Entry Cartesian Robot)
Application: Injection Molding Automation / Part Handling
Machine Size: 250–500 t
Maximum X-Axis Stroke: 800 mm
Maximum Y-Axis Stroke: 1,800 mm
Maximum Z-Axis Stroke: 4,550 mm
Power Supply: 3 × 400 V AC + N + PE
Frequency: 50 Hz
Rated Current: 16 A
Compressed Air Pressure: 6 bar
Programming System: WIPS
Operating Hours: Approx. 1,000 h
Previous Use: Redundant Backup System
Condition: Dismantled and Stored on Pallets
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
