WMW - BP 160 CNC

2008

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

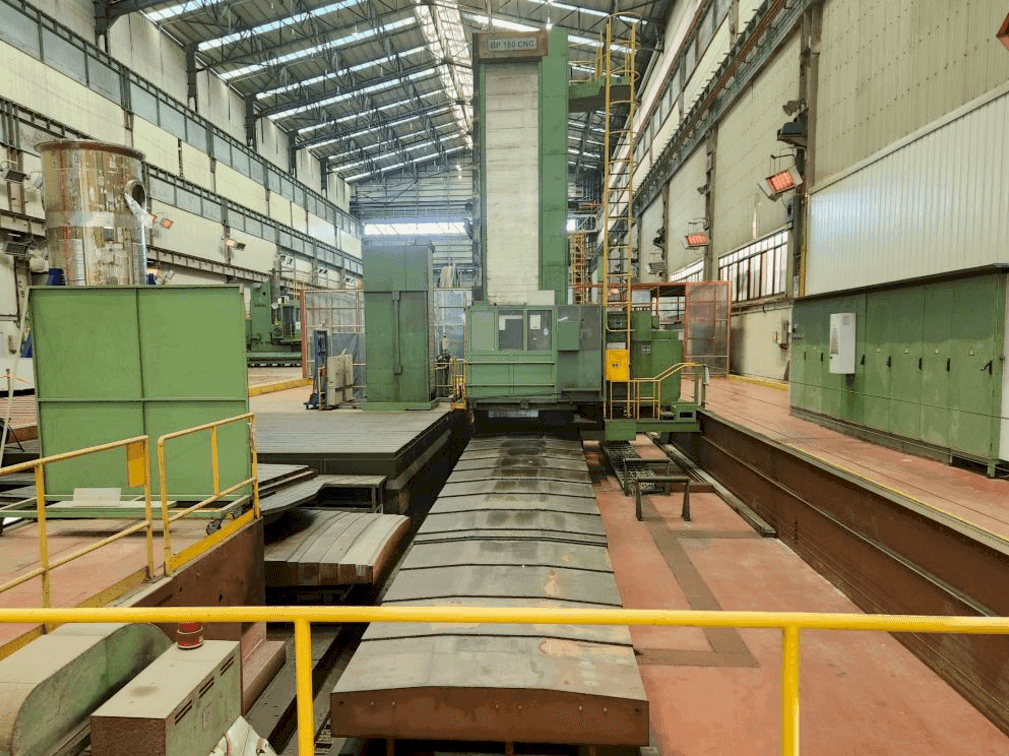

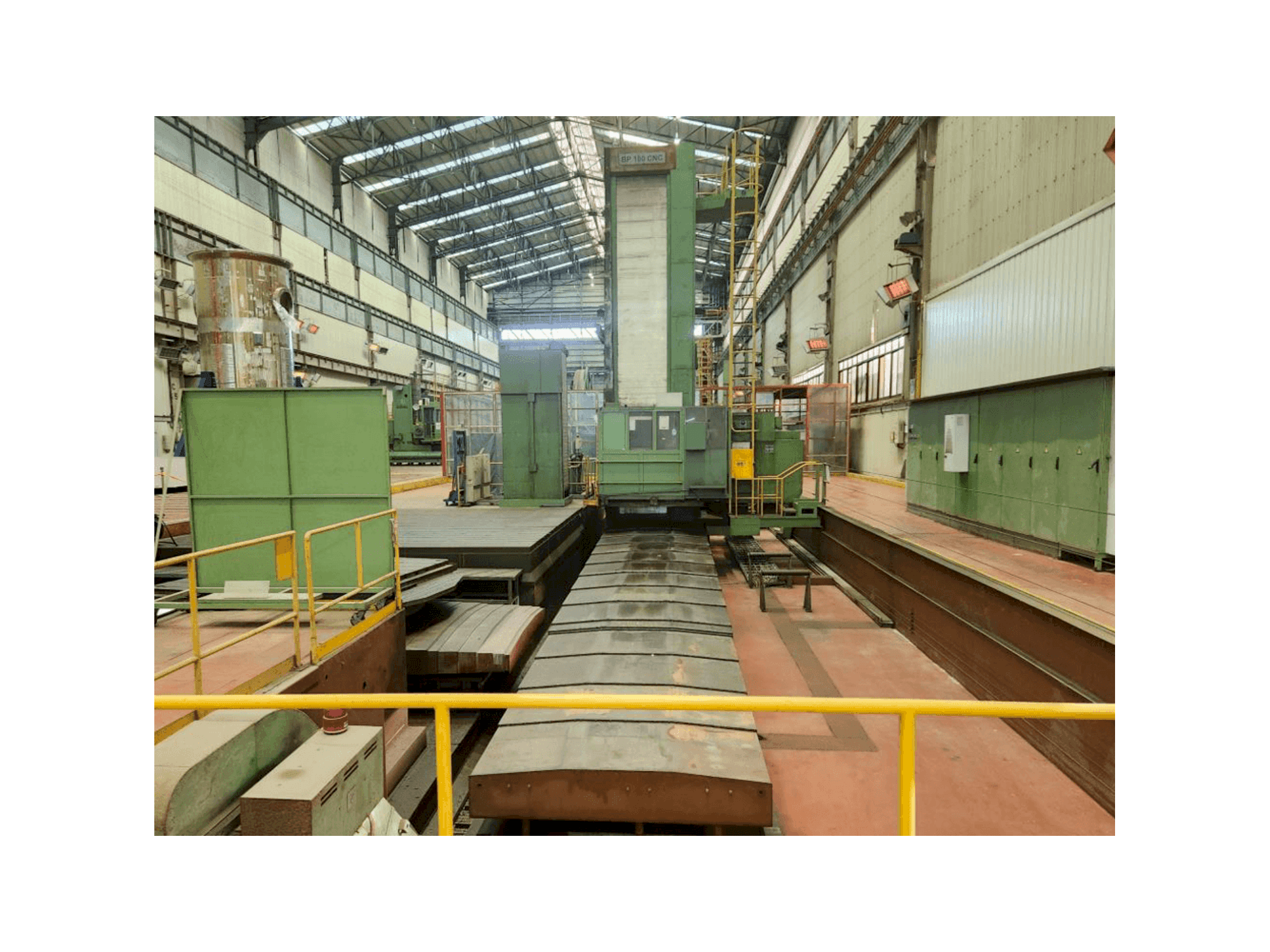

WMW BP 160 CNC Horizontal Floor type boring and milling machine

This WMW BP 160 CNC Horizontal Floor type boring and milling machine was made in the year 2008. It is equipped with a Siemens 840D control unit. The machine has a spindle speed of 4 - 2500 rpm and a boring bar diameter of Ø 160.

Overview

brand: WMW
year: 2008
MODEL: BP 160 CNC
application type: Boring
Location: South Korea
machine type: Boring Machine
availability: Sold
control unit brand: Siemens
GINDUMAC ID: KR-BOR-WMW-2008-00001

Technical Information

Control Unit

Brand: Siemens
Model: 840D

Main drive

Spindle speed range: 4 - 2500 1/MIN
Spindle motor power: 100 kw
Tool taper: ISO 50

Movement

X-AXIS Movement: 11000 mm
Y-AXIS Movement: 5000 mm
Z-AXIS Movement: 1200 mm
V-Axis Movement: 2000 mm
W-Axis Movement: 1000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Spindle torque 12,000nm
- - Boring bar diameter Ø 160
- - Ram section 500 x 620mm
- - Feed rate of x, y-axis 15,000mm/min
- - Feed rate of z, w-axis 6,000mm/min
- - Rotary table size 2,500 x 2,500mm
- - Rotary table loading capacity 40tons
- - Floor plate size 6,000 x 6,000mm
- - Attachment u-tronic / 2-axis head / angle head / ram cover

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
