WRAVOR - Multirip 750 20-100HU-SAW-WRA-2023-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Wood Working
- ➤ Used WRAVOR Multirip 750 20-100 For Sale | gindumac.com

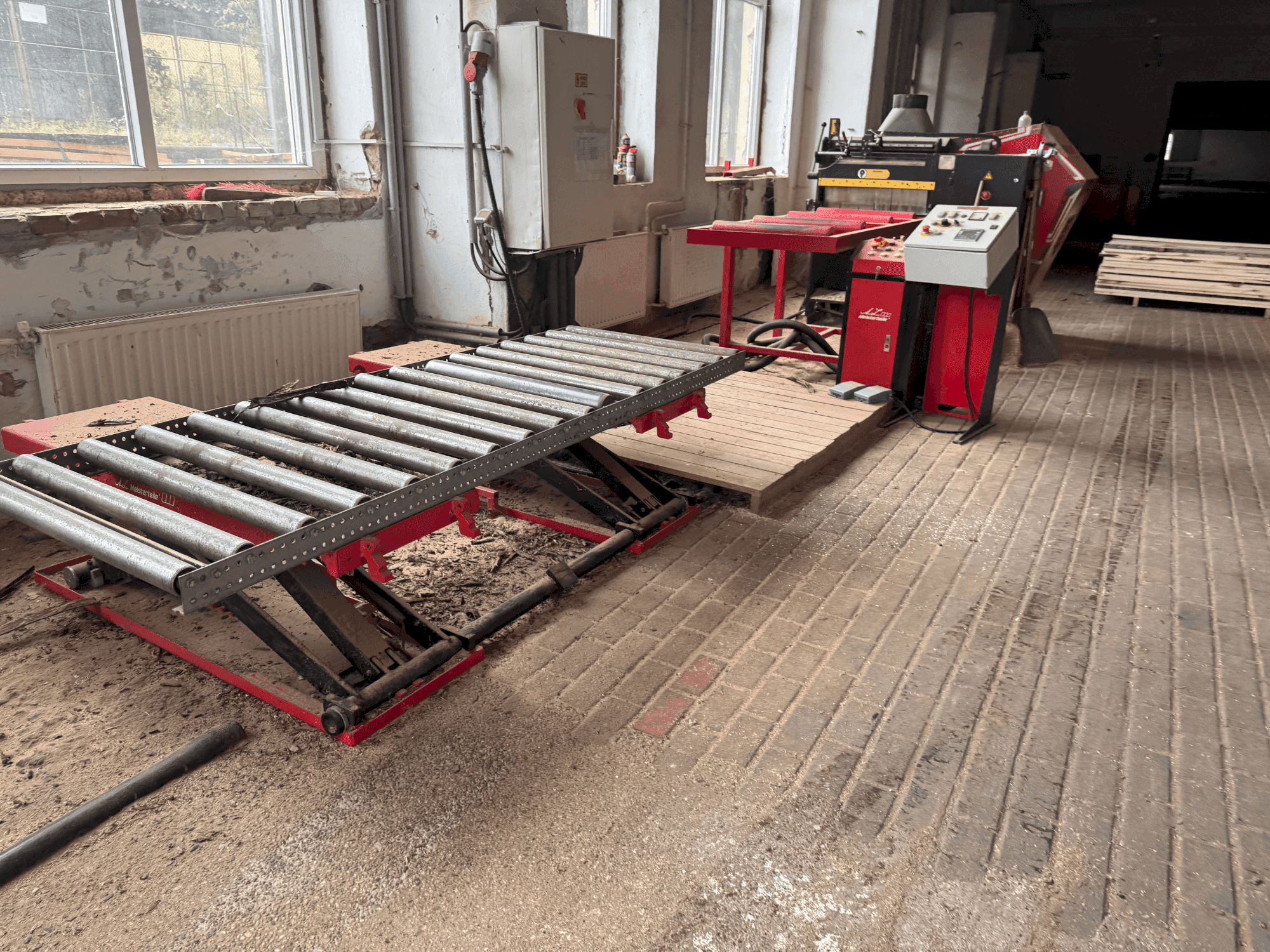

This WRAVOR Multirip 750 20-100 was manufactured in 2023. It features a maximum cutting thickness of 100mm and a width of 750mm. The machine includes a robust hydraulic system with a 60 bar operating pressure and a 1.1 kW pump drive. It also boasts a high-powered main spindle drive of 22 kW and a conveyor system powered at 0.75 kW. Consider the opportunity to buy this WRAVOR Multirip 750 20-100 Circular Wood Saw. Contact us for more information.
Overview
- brand: WRAVOR
- year: 2023
- MODEL: Multirip 750 20-100
- application type: Sawing (Wood)
- Location: Hungary
- machine type: Circular Wood Saw
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Air flow: 5000 m³/h
- Rated power: 24 kw
- Conveyor: 0. 75 kw
- Hydraulic drive: 1. 1 kw
- Permissible load on main em: 44 a
- Supply voltage: 3n ~ 400/230 v
- Frequency: 50 hz
- Control voltage: 24 vdc
- Precursor: 63 a
- Connection cable cross-section: 16 mm²
Technical Machine Benefits
- Max width: 750 mm
- Circular blade: circular blade for side cut with cleaners
- Number and type of lasers: 3 pcs – 10 mw
- Pump drive: 1. 1 kw
- Pump flow rate: 9 l/min
- Tank capacity: 5 l
- Hydraulic system operating pressure: 60 bar
- Hydraulic system safety valve: 80 bar
- Saw blades diameter: Ø 250 mm
- Air velocity: 30 m/s
Extra Information
Machine still under power. Allowed Voltage Drop When Entering the Electrical Cabinet: 5%. The number of circular blades depends on the thickness and type of wood.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
