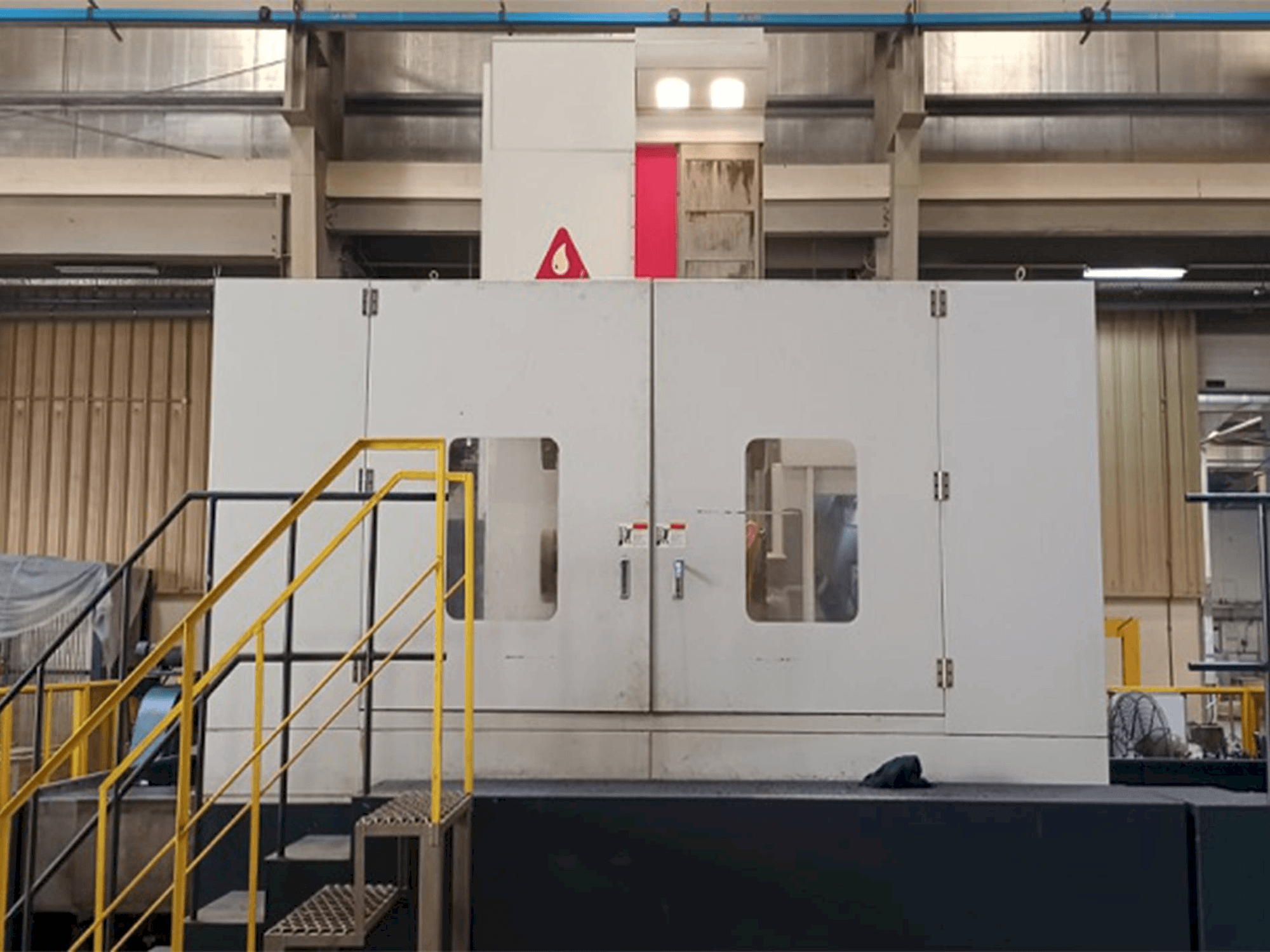

Front view of YOU JI HBM130/3022 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

YOU JI HBM130/3022

YOU JI - HBM130/3022AE-MIL-YOU-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
YOU JI HBM130/3022 Boring Machine

This YOU JI HBM130/3022 Boring Machine was manufactured in Taiwan in the year 2015. It has been power on for 21672 hours of which 3188 are cutting hours. It is equipped with a Fanuc Oi-MD control unit. This 4 axis machine has a spindle speed up to 2500 rpm. It includes a bi-directional twin arm type auto tool with 40 stations.

Overview

brand: YOU JI
year: 2015
MODEL: HBM130/3022
production hours: 3188
application type: Other Machine Tools
Location: United Arab Emirates
machine type: Boring Machine (Metal)
availability: Sold
control unit brand: FANUC

Technical Information - YOU JI HBM130/3022

General Data

Machine weight: 50000 KG

Control Unit

Model: Oi-MD
Brand: FANUC

Main drive

Spindle speed range: 2500 1/MIN
Tool taper: BBT/CAT 50
Number of axis: 4

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 2200 mm
Z-AXIS Movement: 2050 mm

Table

Table load: 20000 KG

Tools

Max weight: 25 KG
Max tool diameter: 250 mm
Max tool length: 400 mm

Media

Main electronic connection: 220V / 60Hz
Power consumption: 65 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W axis: 700 x 130 mm quil
- - Table size: 1800 x 1800 mm x b axis rotary
- - Table centre to spindle nose: 2850 mm
- - Max feed rate fanuc: 10 m/min
- - Bi-directional twin arm type auto tool: 40 stations

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
