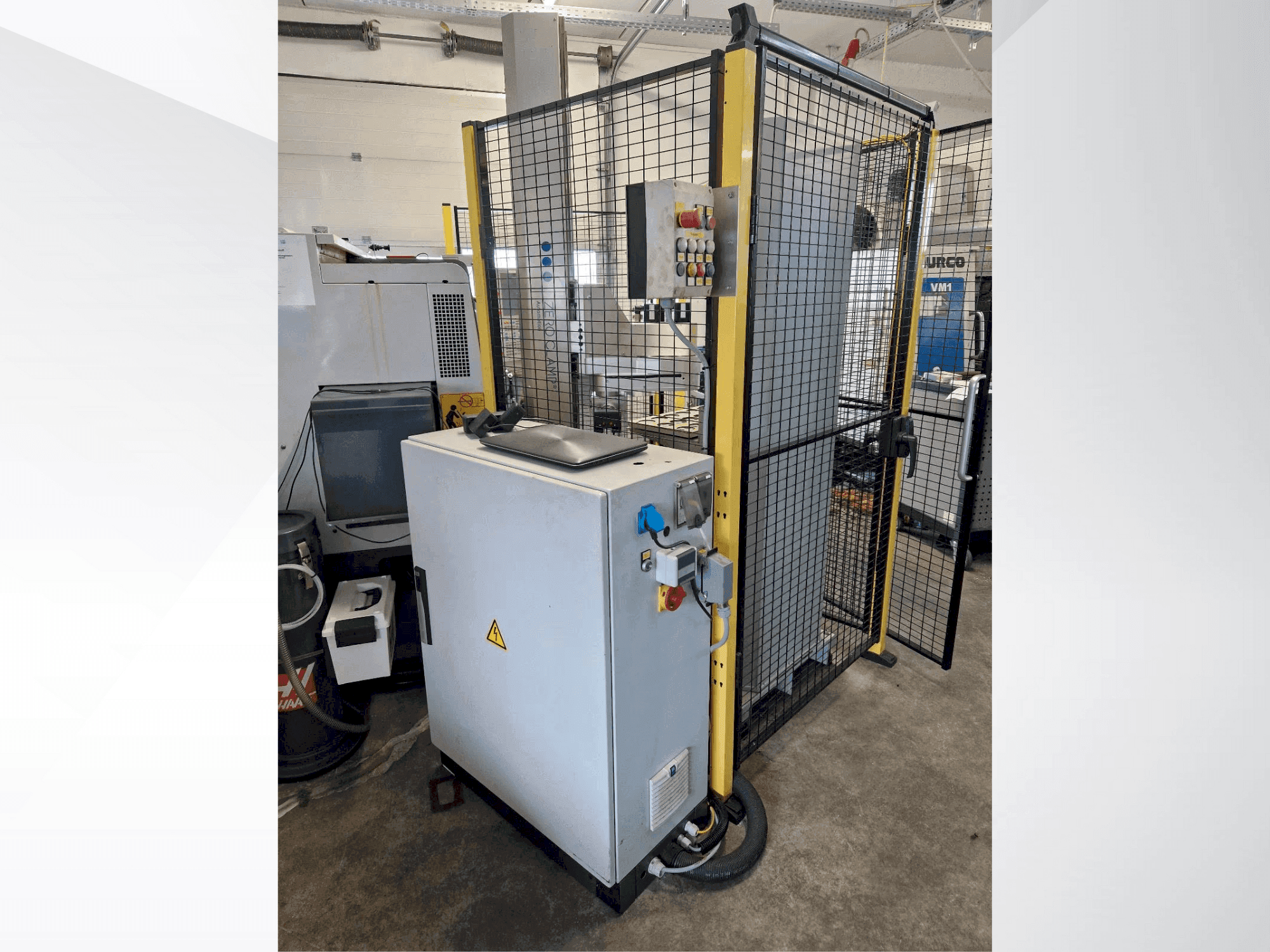

Zeroclamp - Zerobot 100PDE-ROB-ZER-2014-00001

Machine Benefits

Qualitative Machine Benefits

• Production materials that may be used are: workpieces made of metal, non-ferrous metals, non-ferrous metals and plastic that do not generate explosive dusts

Technical Machine Benefits

• Zeroclamp 100p, 2 racks, 1 gripper for turned parts, protective enclosure
• Hinged door: 3040 x 1750 x 2630 mm
• Safety fence 1 rack: 3025 x 1660 x 2520 mm (approximate) / safety fence 2 racks: 2410 x 1775 x 2520 mm (approximate) / the protective fence dimensions vary depending on the machine type.
• Dimensions racks: 663 x 666 x 1931 mm / robot dimensions: 660 x 1323. 5 x 2500 mm
• Weight of the robot: approx. 380 kg / weight of a rack without load: approx. 216 kg / weight of the protective housing: revolving door: approx. 150 kg / protective fence: not specified
• 4 axes: a, b, c, z
• Operating temperature: minimum: +5 °c / maximum: +40 °c / air humidity / maximum: 50% at +40°c / higher relative humidities are permissible at lower temperatures (e. G. 90% at +20°c). / altitude: the maximum permissible altitude is 1000m
• Electrical data: mains voltage 400 v /current 16 a /frequency 50 hz /maximum power 6. 4 kw /required phases l1, l2, l3, n, pe /voltage between phase conductor and neutral conductor approx. 230 v /voltage between two outer conductors approx. 400 v
• Pneumatic data: minimum: 6 bar /maximum: 8 bar
• Airborne noise: the a-weighted sound pressure level is below 70 db(a).
