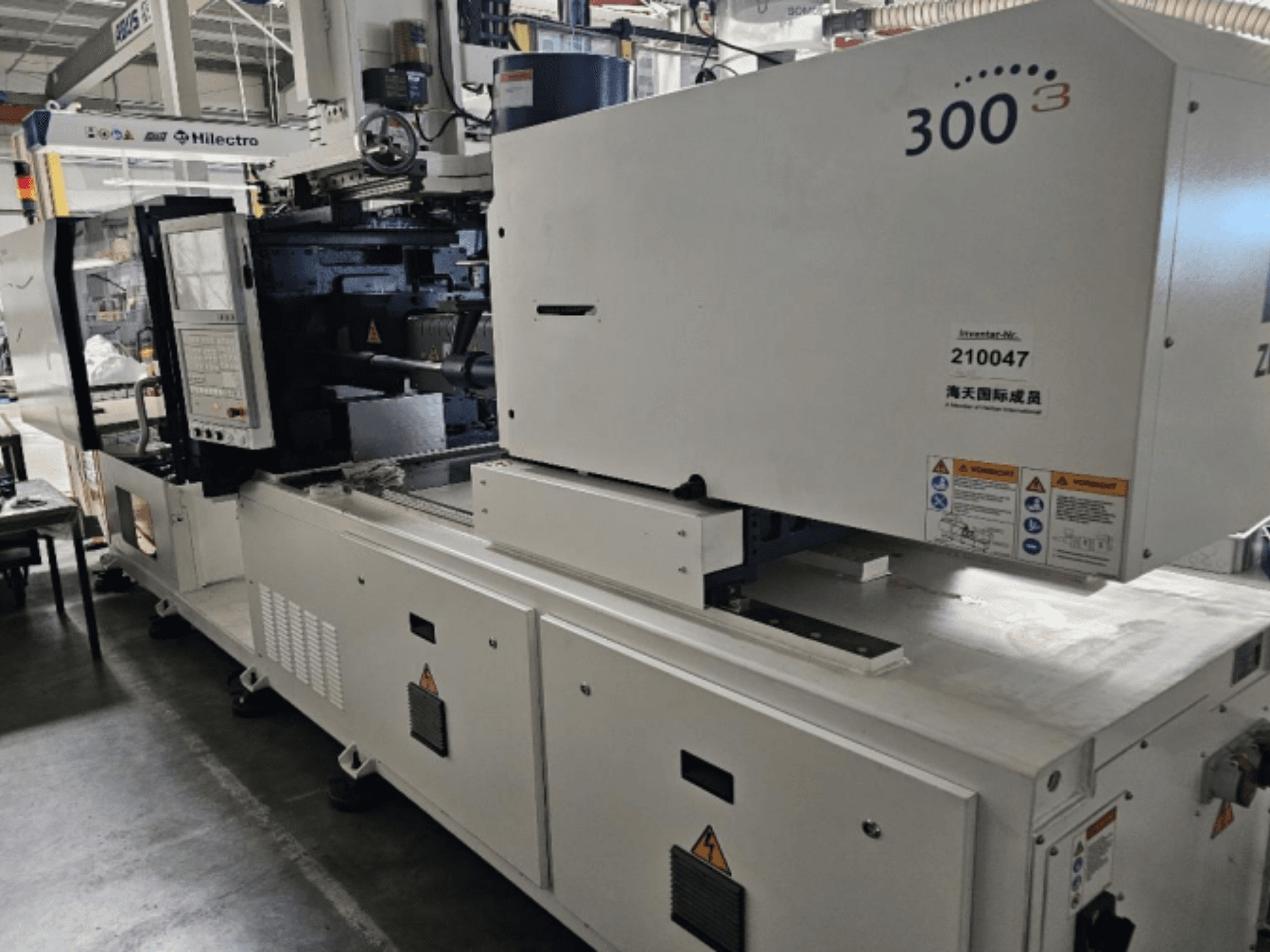

ZHAFIR ZERES - 1200 IIIDE-INJ-ZHA-2021-00001

Injection Unit

• EUROMAP 1: 300

• Screw L/D Ratio: 20

• Injection Pressure: 2000 bar

• Shot Weight (PS equivalent): 134

• Injection Rate: 177 gr/s

• Plasticizing Rate: 22 gr/s

• Max. Screw Speed: 0-400 rpm

• Max. Injection Speed: 200 mm/s

• Second Injection Unit: EE 2 V 80 / B 22 - complete with heating bands and thermal sensors

Clamping Force

• Tie Bar Distance: 470 x 470 mm

• Opening Stroke: 360 mm

• Max. Mold Height: 480 mm

• Min. Mold Height: 150 mm

• Ejector Stroke: 100 mm

• Ejector Force: 33 kN

• Oil Tank: 93 L
