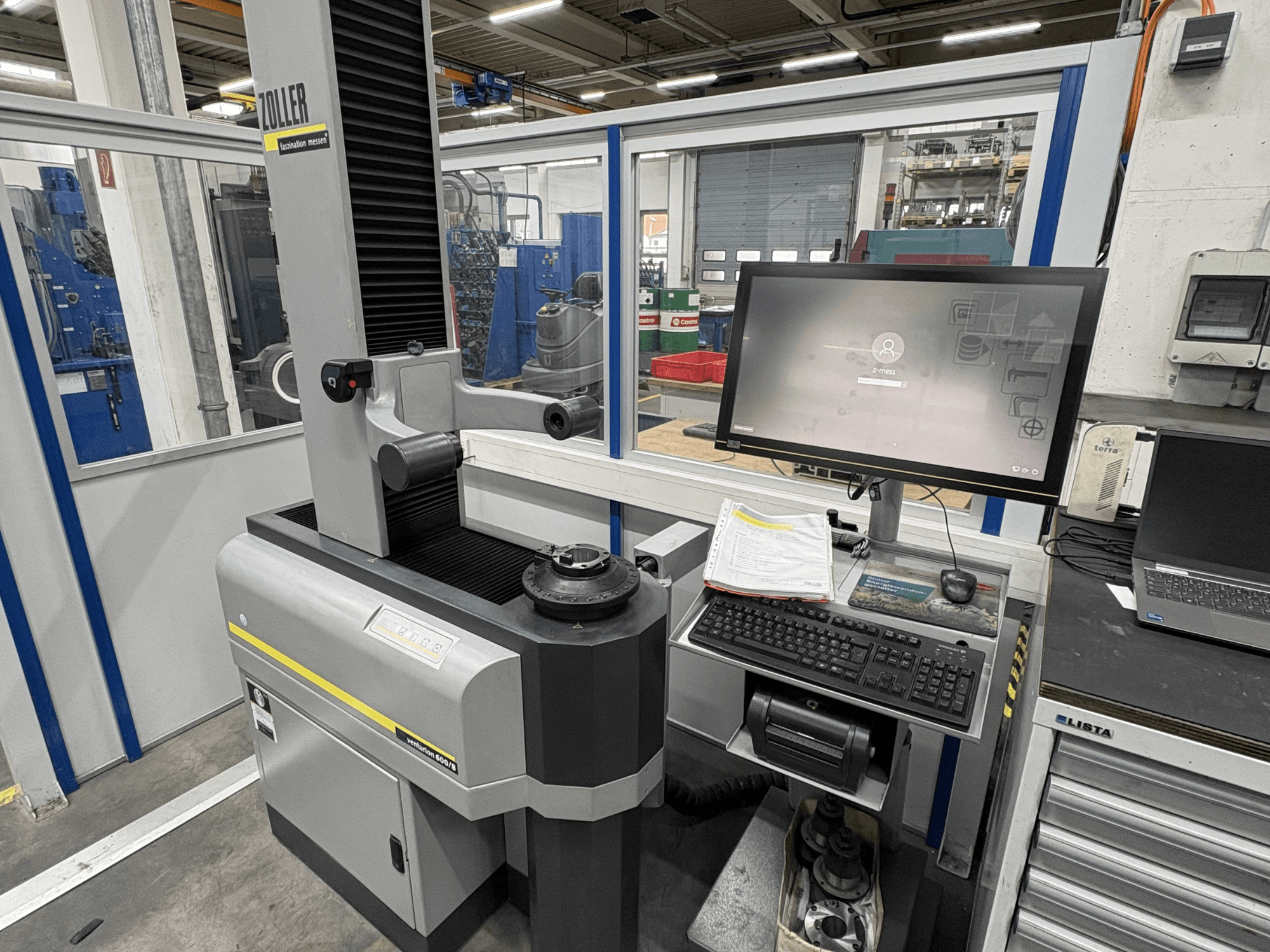

Zoller Venturion 600/8 optical measurement machine in a workshop, featuring a monitor, keyboard, and measurement platform in side view.
Zoller Venturion 600/8 optical measurement machine in a workshop, featuring a monitor, keyboard, and measurement platform in side view.

Zoller - Venturion 600/8DE-MEA-ZOL-2009-00002

14,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Optical measurement machine manufactured in 2009. This Zoller Venturion 600/8 features a maximum tool length of 800 mm and a maximum tool diameter of 440 mm. It is equipped with a tool holder for SK50 and SK40. With a maintenance contract in place and annual calibration performed, this machine is in good condition. If you are looking to get high-quality optical measurement capabilities, consider the Zoller Venturion 600/8 machine we have for sale. Contact us for further details.

Overview

  • brand: Zoller
  • year: 2009
  • MODEL: Venturion 600/8
  • application type: Measuring
  • Location: Germany
  • machine type: Optical Measurement Machine
  • control unit brand:

Technical Information - Zoller Venturion 600/8

Dimensions

  • Machine Weight: 900 kg

Movement

  • Number of Axes: 2

Additional Information

  • Condition: Good

  • Maintenance: Annual calibration performed

  • Maintenance contract: Yes

  • Operating shifts: 2

  • Tool holder: SK50 and SK40

  • Max tool length: 800 mm

  • Max tool diameter: 440 mm

  • Venturion 600/8 Pilot 3.0 CNC

  • CNC-Based Joystick Control

  • Max Tool Length Z = 800 Mm

  • Max Tool Diameter D = 440 Mm

  • Measuring Diameter D = 200 Mm

  • Power Supply 230 V

  • High Precision Spindle A.C.E. (I)

  • Runout Accuracy 0.002 Mm

  • Universal Tool Clamping For Steep Taper/ANSI/CAT/MAS-BT/HSK/Capto/KM

  • Autofocus System For Venturion 600

  • Rotary Encoder For Venturion 600

  • Presetter For Shrinking Devices (SK 50)

  • Presetter For Shrinking Devices (SK 40)

  • ZOLLER Insert D 78/VSH Size 1

  • IPC Electronics 2-Axis Pilot 3.0 CNC Version

  • Operating System Windows XP

  • Control Unit Cockpit Pilot 3.0 With 17" TFT Color Display Touchscreen Keyboard Mouse Storage For Labels And

  • Laser PrinterStandard Functions Pilot 3.0

  • Tool Management Standard

  • Data Output DNC With 3 Selectable Output Formats Included

  • Output Format Siemens 840D

  • Output Format Heidenhain TNC (TNC 407/410/415/415B/426/430/530/124)

  • Automatic Read/Write Station With Height Adjustment

  • NC1 Read/Write System Software

  • Automatic Positioning WZI Autofocus And Edge Detection Required

  • NC1 Drawing System Standard Data Interface

  • Manual Venturion/Pilot 3.0

  • Electrical Connection 230 V 50/60 Hz

  • Pneumatic Connection 6 Bar

  • Complies With DIN EN 61010 Safety Standards

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
