➤ Used ZPS S-60 CNC For Sale | gindumac.com

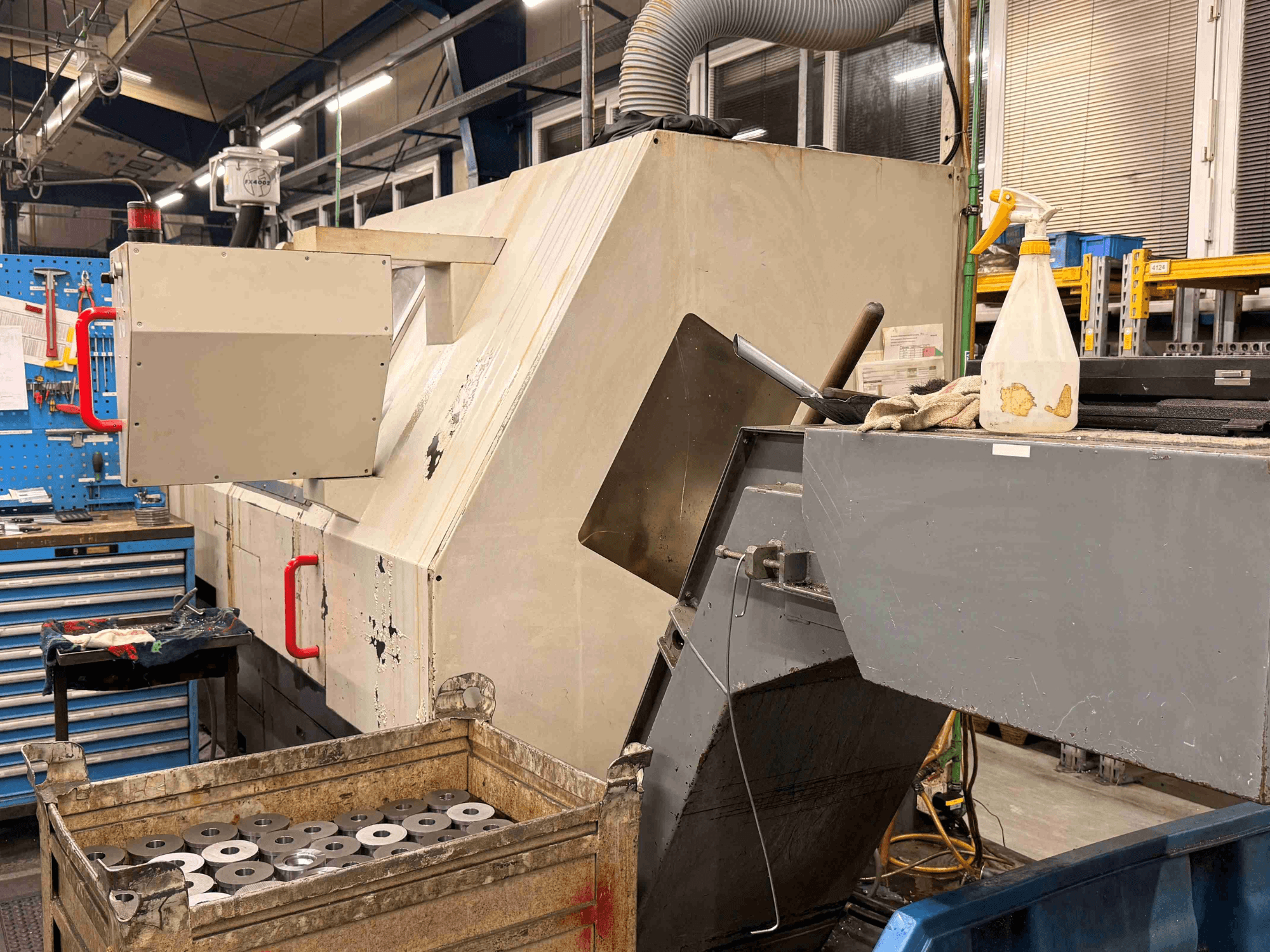

Horizontal turning machine manufactured in 2000. This ZPS S-60 CNC features a maximum machining diameter of 430 mm and a maximum machining length of 750 mm. It offers X/Z-axis travel of 275/820 mm and a spindle speed range of 20 to 3,500 rpm. If you are looking to get high-quality turning capabilities, consider the ZPS S-60 CNC machine we have for sale. Contact us for further details.

Overview

brand: ZPS
year: 2000
MODEL: S-60 CNC
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ZPS S-60 CNC

Control Unit

Control Brand: FANUC
Control Model: Series 21i-T

Dimensions

Machine Height: 2330 mm
Machine Length: 4950 mm
Machine Weight: 7500 kg
Machine Width: 2230 mm

Movement

Number of Axes: 2
X-axis Travel: 275 mm
Z-axis Travel: 820 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Power: 22 kW
Spindle Speed: 3500 RPM
Taper Size: VDI 50
Tool Stations: 12

Additional Information

Maximum swing over bed: 680 mm
Maximum machining diameter: 430 mm
Maximum machining length: 750 mm
Maximum bar capacity: 65 mm
Spindle bore: 80 mm
Turret: Duplomatic, 12 positions
Dimensions (L × W × H) excluding chip conveyor: 3,280 × 2,230 × 2,330 mm
Service/maintenance: Regularly serviced and maintained

Additional equipment

Tool holders
Clamping jaws
Other accessories (unspecified)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
