ZPS S-80/750 CNC

Photo Gallery

ZPS - S-80/750 CNCCZ-TUR-ZPS-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

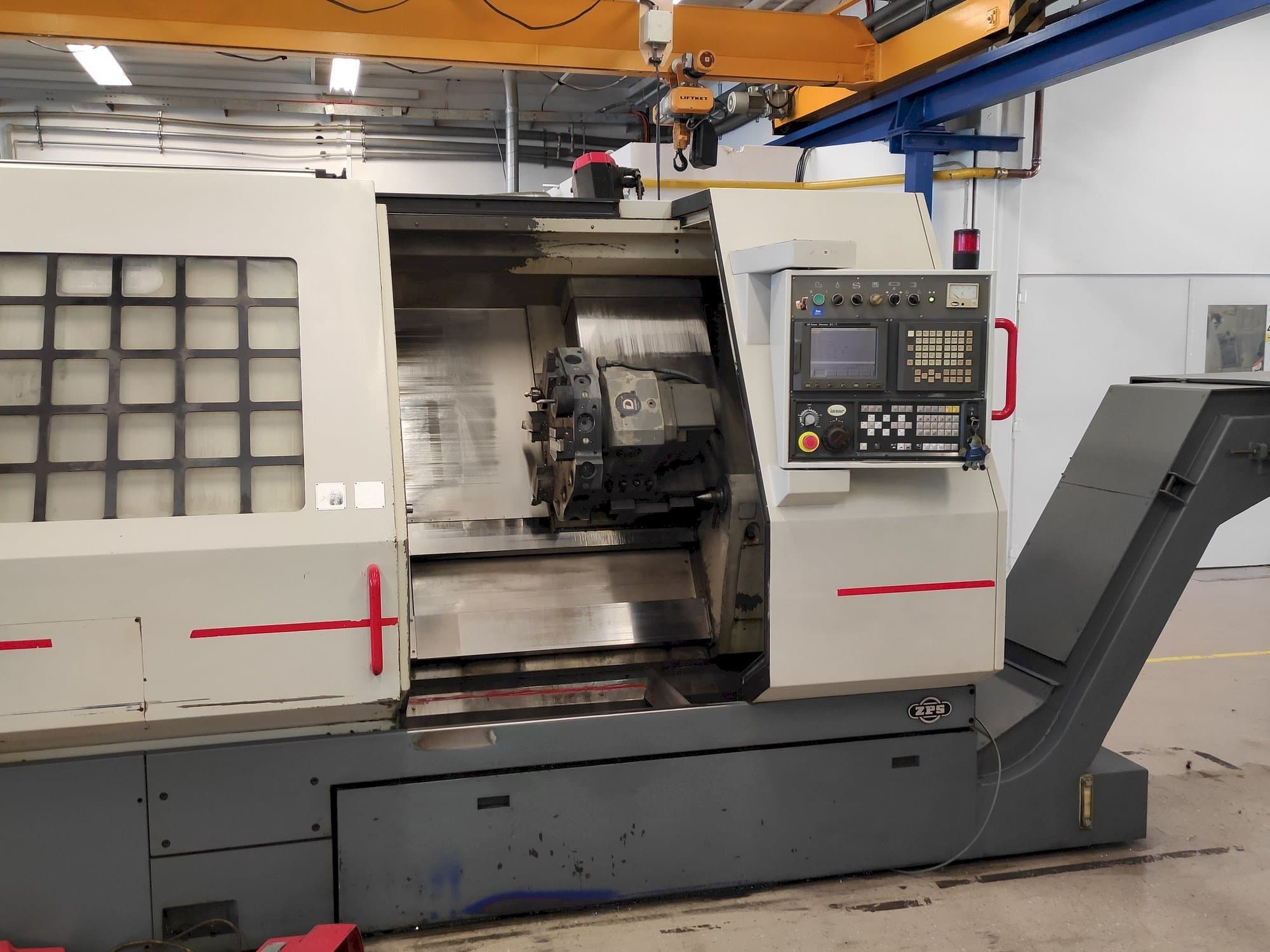

This ZPS S-80/750 CNC Lathe was made in the Czech Republic in the year 1999. This 2 axis machine is operated with a FANUC Series 21i-T control unit. It works with a spindle speed up to 3500 rpm and a cutting diameter 370 mm. This machine which is in good condition has been working in the mould and die industrie.

Overview

brand: ZPS
year: 1999
MODEL: S-80/750 CNC
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - ZPS S-80/750 CNC

General Data

Measurements width: 4950 mm
Measurements depth: 2230 mm
Measurements height: 2330 mm
Machine weight: 8600 kg

Control Unit

Model: Series 21i-T
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Spindle motor power: 22/26 kW (100/50%)
Spindle bore: 90 mm
Number of axis: 2

Movement

X-AXIS Movement: 275 mm
Z-AXIS Movement: 820 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 36 kva
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Good condition

Technical Machine Benefits

Swing over bed 680 mm
Max. Cutting diameter 370 mm
Maximum cutting length 750 mm
Max. Bar diameter 80 mm
Tailstock quill stroke 150 mm, dia. 100 mm, morse m4
3 jaw chuck, coolant

Machine History

Industries

Mould & die

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
