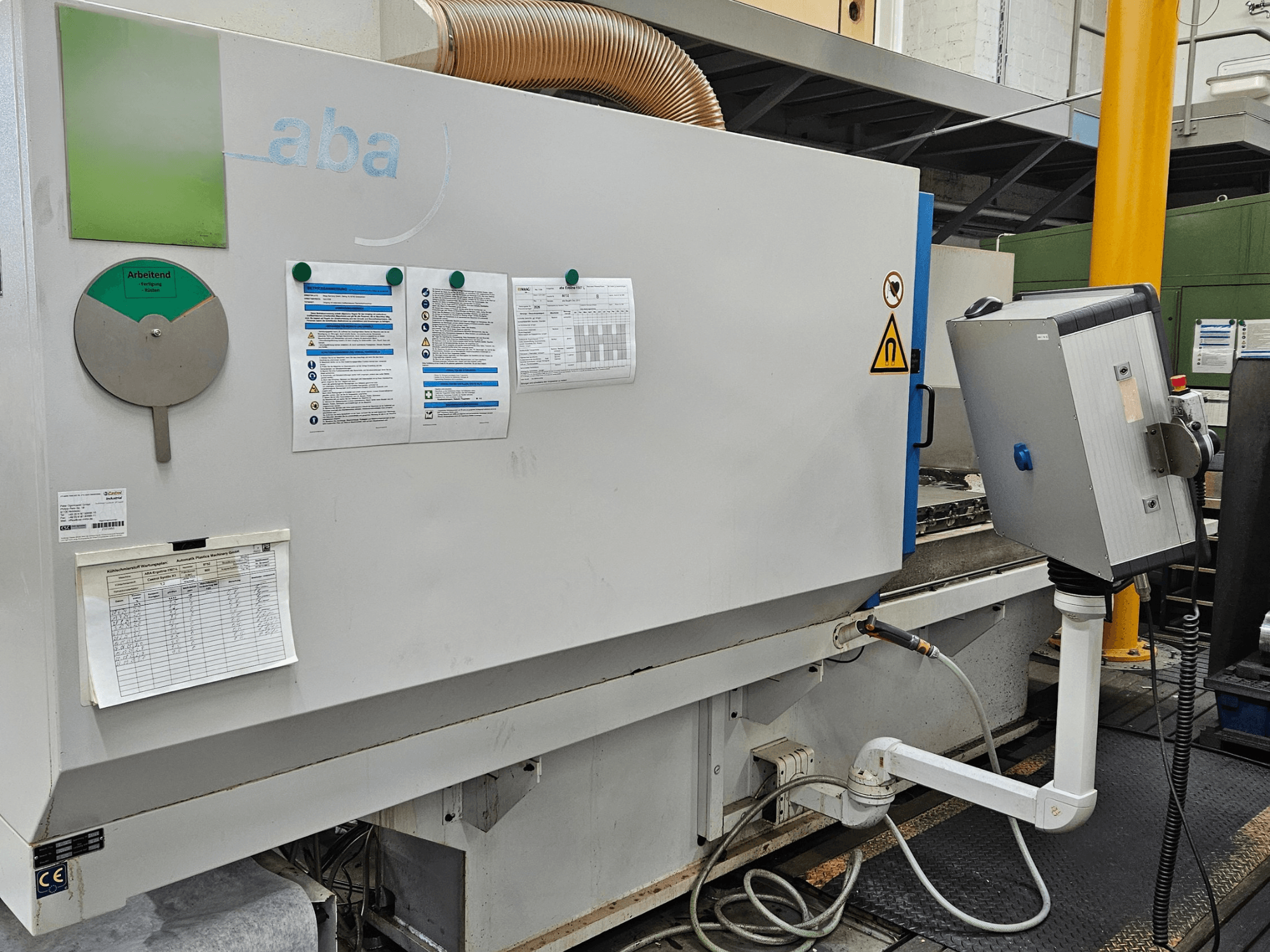

Front view of ABA ECOLINE 1507 surface grinding machine with control panel, safety warnings, and operational guidelines visible.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ABA ECOLINE 1507

Photo Gallery

ABA - ECOLINE 1507DE-GRI-ABA-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ABA ECOLINE 1507 For Sale | gindumac.com

This 3-axis ABA ECOLINE 1507 surface grinding machine was manufactured in 2010. It features a maximum grinding length of 1500 mm and a grinding width of 800 mm, with a robust table load capacity of 1500 kg. The machine is equipped with a Siemens SINUMERIK control unit and offers impressive feed speeds of up to 60,000 mm/min for the worktable. If you are looking to get high-quality grinding capabilities, consider the ABA ECOLINE 1507 machine we have for sale. Contact us for further details.

Overview

brand: ABA
year: 2010
MODEL: ECOLINE 1507
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
control unit brand: SIEMENS

Technical Information - ABA ECOLINE 1507

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK

Dimensions

Machine Weight: 7700 kg
Table Load: 1500 kg

Movement

Number of Axes: 3
X-axis Travel: 1500 mm
Y-axis Travel: 800 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Speed: 2600 RPM

Additional Information

Max. grinding length: 1500 mm
Max. grinding width: 800 mm
Distance table–spindle center: 700 mm
Tool holder: 1x grinding wheel holder
Max. feed speed grinding spindle: 2600 mm/min
Max. feed speed worktable: 60,000 mm/min
Voltage: 3 x 400 V
Total power: 90 kVA

Additional equipment

Magnetic table (included)
Paper band filter BF200 (not included)
Mechanical extraction LTA (not included)
Note: As stated, no accessories are included except for the magnetic table.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
