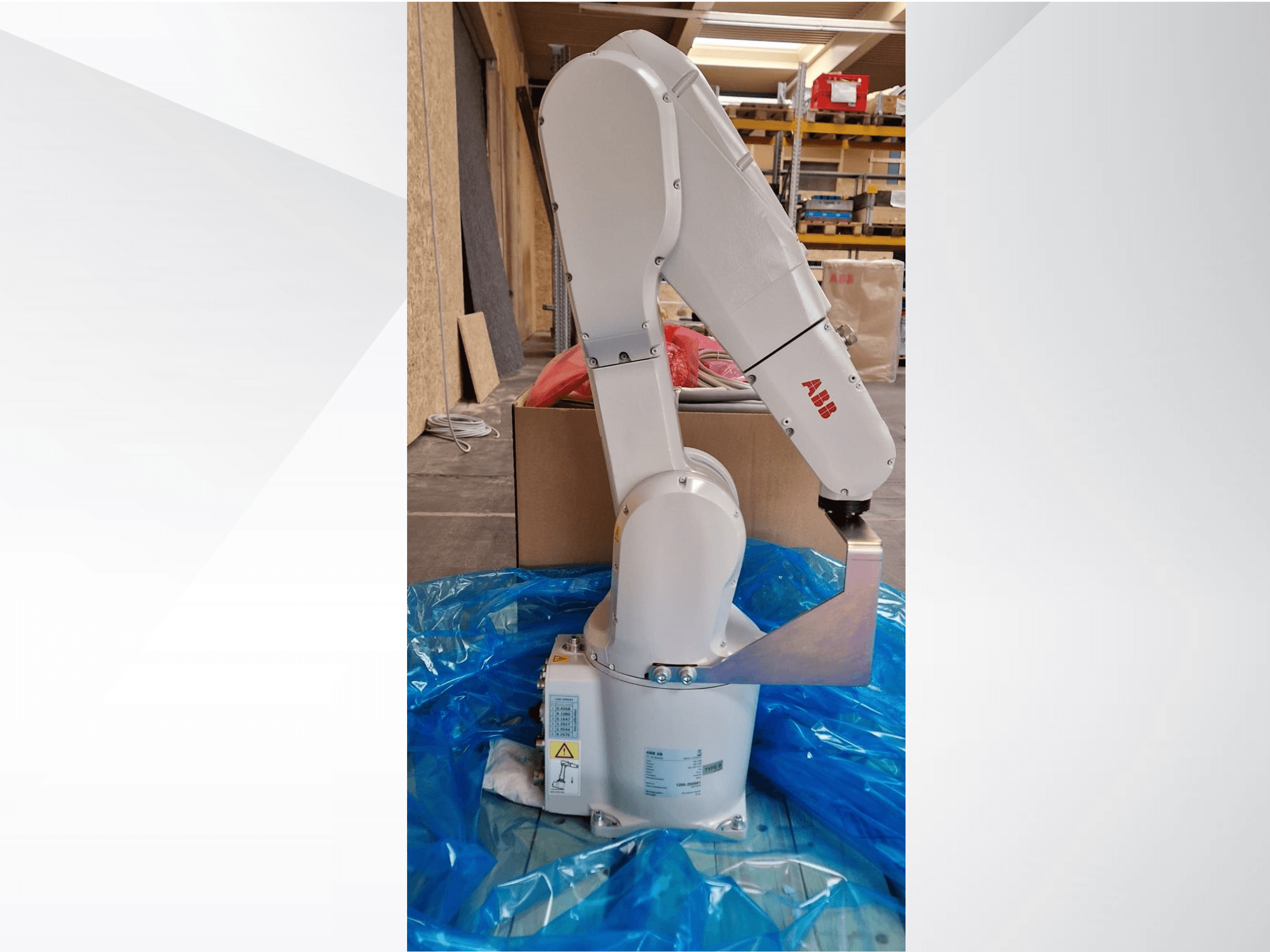

ABB robotic arm model, side view on blue tarp, showcasing articulated joints and metal end effector, with technical labels visible.
ABB robotic arm model, side view on blue tarp, showcasing articulated joints and metal end effector, with technical labels visible.

Thank you for your visit

This machine was recently sold.

Browse similar machines

ABB - IRB 1200-7/0.9 OmicoreAT-ROB-ABB-2025-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ABB IRB 1200-7/0.9 Omicore robot arm was manufactured in 2025. It is brand new and in its original packaging with a manufacturer’s warranty valid until September 2026. It features a reach of 901 mm, supports a payload of 7 kg, and operates efficiently with a power consumption of just 0.38 kW. Its compact footprint (210 × 210 mm) and weight of 54 kg make it ideal for varied applications. Contact us for more information about this machine.

Overview

  • brand: ABB
  • year: 2025
  • MODEL: IRB 1200-7/0.9 Omicore
  • application type: Robotics
  • Location: Austria
  • machine type: Robot Arm

Technical Information - ABB IRB 1200-7/0.9 Omicore

Dimensions

  • Machine Weight: 54 kg

Movement

  • Number of Axes: 6

Additional Information

General

  • 2 units available

  • Robot: brand new, in original packaging, manufacturer warranty until 23.09.2026

  • Type: ABB IRB 1200-7/0.9 OmniCore

  • Controller: OmniCore C30

  • SafeMove: No

  • Profinet: Yes

  • Ethernet: Standard

Environmental Conditions

  • Ambient temperature: +5 °C to +45 °C

  • Relative humidity: max. 95%

  • Noise level: max. 70 dB(A)

  • Emissions: EMC/EMI shielded, ESD certified

Performance

  • Reach: 901 mm

  • Payload: 7 kg

  • Additional arm load: 0.5 kg

  • Position repeatability: 0.013 mm

  • Cycle time (1 kg pick & place, 25 × 300 × 25 mm): 0.4 s

Speed & Acceleration

  • Max. TCP speed: 7.3 m/s

  • Max. TCP acceleration: 35 m/s²

  • Acceleration time (0–1 m/s): 0.06 s

Electrical Data

  • Mains voltage: 200–600 V, 50/60 Hz (controller: 220–230 V AC +10% / -15%)

  • Power consumption: 0.38 kW

Dimensions & Weight

  • Robot footprint: 210 × 210 mm

  • Weight: 54 kg

Manipulator

  • Variant: IRB 1200-7/0.9

  • Color: ABB Graphite White

  • Protection: Base 40

  • Cabling: from the side of the base

Controller

  • OmniCore C30

  • Housing: Base

  • 19" rack mounting kit: Yes

  • Operating temperature: max. 45 °C

  • Network: wired LAN, 5-port Ethernet switch

  • Additional power supply: 24 V, 8 A

  • FlexPendant: 10 m

  • Digital I/O: 16 inputs / 16 outputs

  • Operating mode selector: 3 modes, keyless

  • Integrated PROFINET device

Cables

  • Manipulator cable: 7 m

  • Power cable: EU, 3 m

  • Ethernet cable: 7 m

  • Parallel cable: 7 m

Software (RobotWare)

  • World Zones

  • Path Recovery

  • RobotStudio Connect

  • FlexPendant Essential App Package

  • FlexPendant Program Package

Applications & Interfaces

  • Communication: Ethernet, parallel, air

  • Connector Axis 4: CP/CS Bus

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
