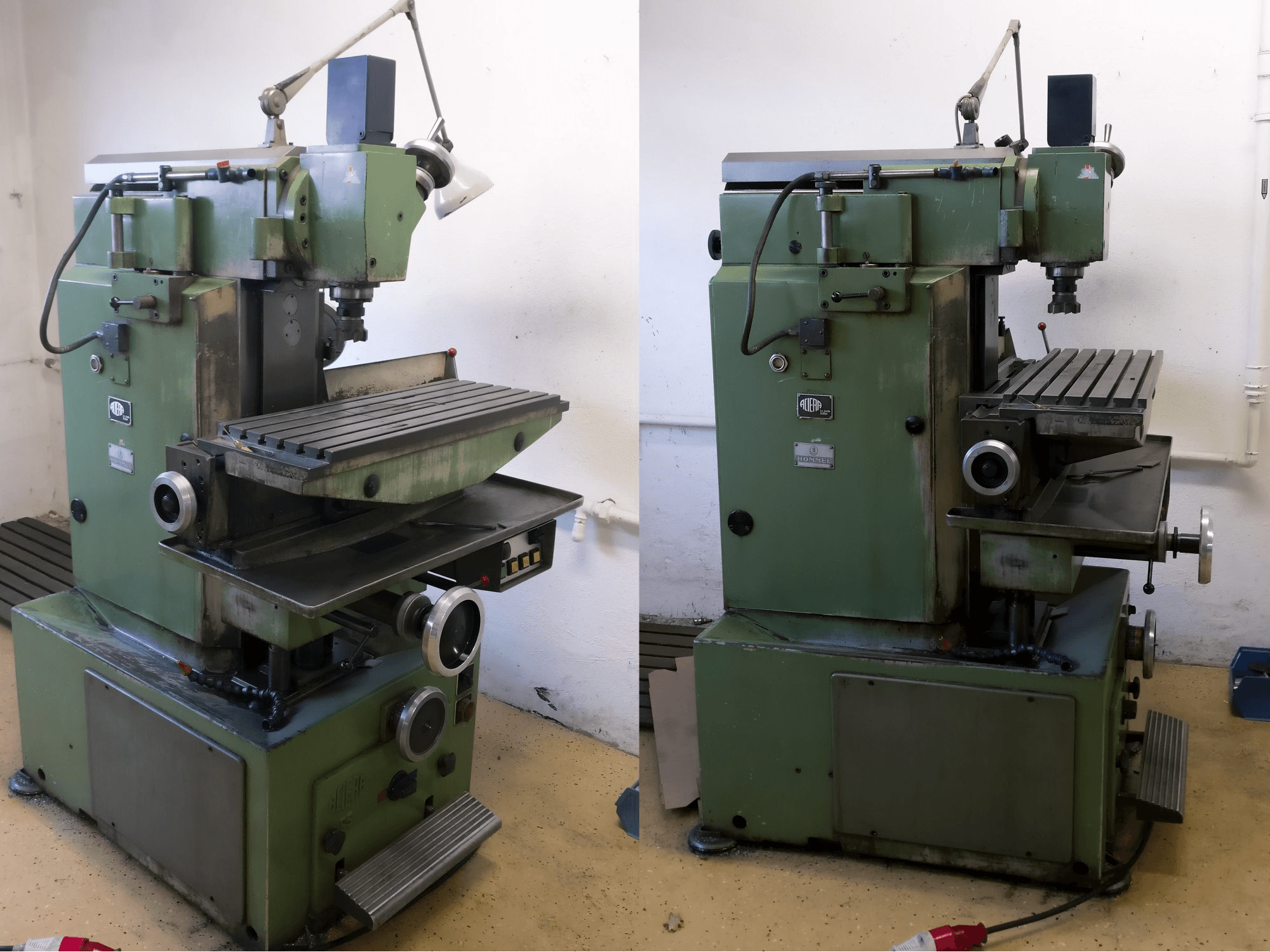

Aciera F5 Milling Machine

This Aciera F5 is a Milling Machine that has worked an estimated total of 26000 working hours since its manufacture in 1970. This compact equipment, ideal for any kind of environment, includes numerous pieces of additional equipment such as collets, diverse toolsets and a tool closet.

Overview

brand: Aciera
year: 1970
MODEL: F5
production hours: 26000
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - Aciera F5

General Data

Measurements width: 1520 mm
Measurements depth: 1320 mm
Measurements height: 1745 mm
Machine weight: 1300 kg

Main drive

Spindle speed range: 1400 1/min
Spindle motor power: 2.2 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 800 mm
X-AXIS Working Feed: 10-600 mm/min
X-AXIS Rapid traverse: 1500 mm/min
Y-AXIS Movement: 450 mm
Y-AXIS Working Feed: 10-600 mm/min
Y-AXIS Rapid traverse: 1500 mm/min
Z-AXIS Movement: 250 mm
Z-AXIS Working Feed: 10-600 mm/min
Z-AXIS Rapid traverse: 1500 mm/min

Table

Outer length: 800 mm
Outer width: 300 mm
TSlots size: 12 mm
Number of tslots: 6
Distance between: 50 mm
Max distance between vertical spindle and table: 365 mm

Additional Equipment

- Collets
- Diverse toolsets
- Tool closet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
