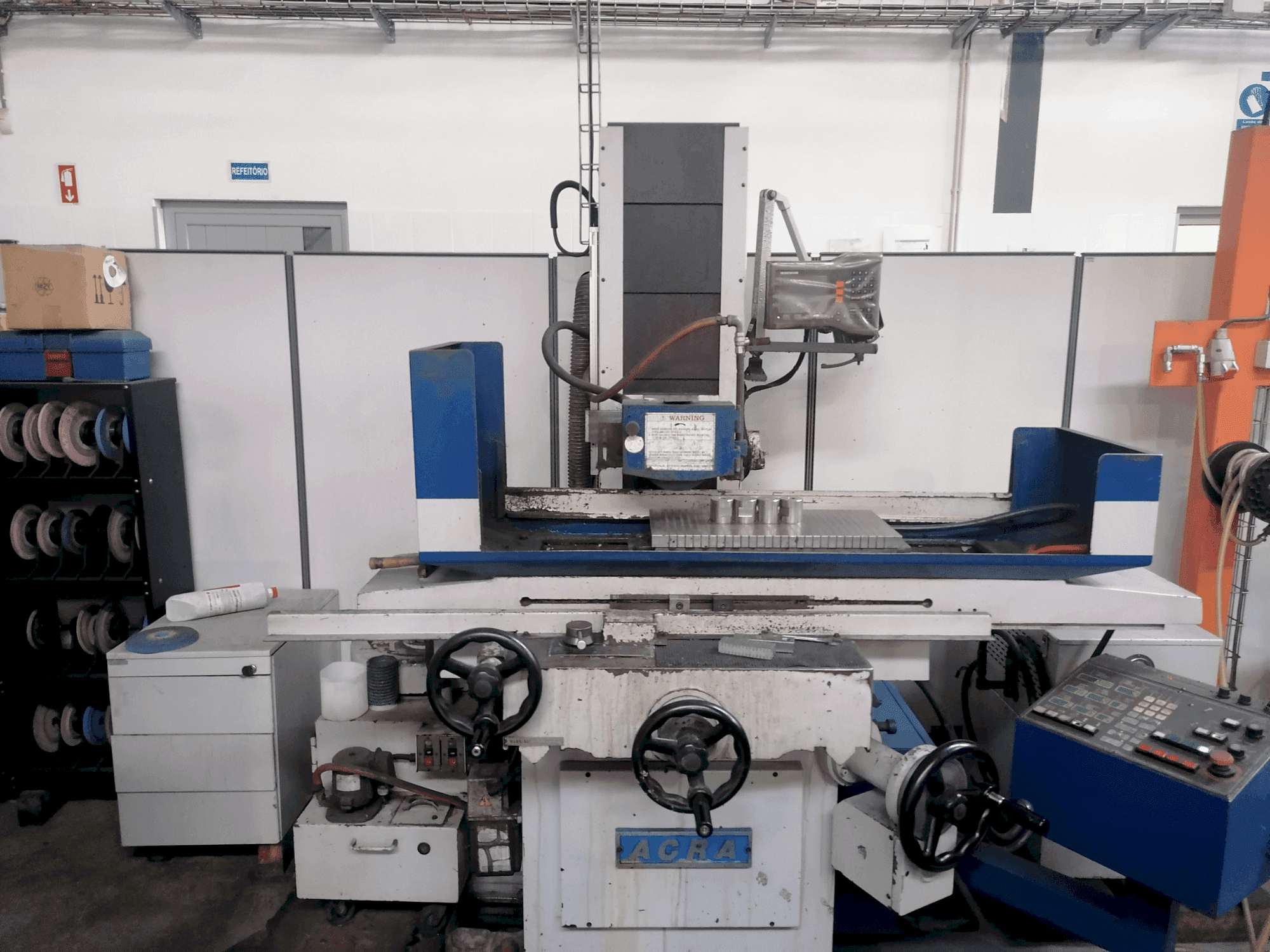

Front view of ACRA ASG 1224HS  machine

ACRA - ASG 1224HSPT-GRI-ACR-2003-00001

10,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ACRA ASG 1224HS was manufactured in 2003. A robust grinding machine featuring a table size of 12” X 24” and a maximum table travel of 14.5” X 27.5”. It supports a table load of 660 lbs and operates with a spindle motor of 5 HP. Ideal for handling substantial grinding tasks, the ACRA ASG 1224HS machine we have for sale is a significant asset for any workshop. Contact us for more information.

Overview

  • brand: ACRA
  • year: 2003
  • MODEL: ASG 1224HS
  • application type: Grinding
  • Location: Portugal
  • machine type: Grinding machines
  • availability: Immediately

Technical Information - ACRA ASG 1224HS

General Data

  • Measurements width: 7100 mm
  • Measurements depth: 9000 mm
  • Measurements height: 8800 mm
  • Machine weight: 2200 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 1,750 RPM 1/MIN
  • Spindle motor power: 5 HP
  • Number of axis: 2

Movement

  • X-AXIS Movement: 145 mm
  • Y-AXIS Movement: 275 mm

Table

  • Table load: 660 lbs

    Additional Equipment

    • - Hydraulic pump motor: 1 HP.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Robust grinding wheel speed and size, auto cross feed increment feature.
        • - Table size: 305 x 610 mm
        • - Maximum table travel: 370 x 699 mm // maximum surface ground: 305 x 610 mm
        • - Table to spindle center: 635 mm
        • - Grinding wheel size: 355 x 38 x 127 mm
        • - Table speed: 16 – 82 fpm.
        • - Table guideway: f-v.
        • - Auto cross feed increment: 0. 004” – 0. 8”.
        • - Cross feed on hand wheel (rev/gra): 0. 2”/0. 001”. // vertical feed in hand wheel (rev/gra): 0. 05” /0. 0002”.
        • - Electrics: 220 volts, 3 phase, 60 cycles.
      • Qualitative Machine Benefits:
        • - Precision controls, adjustable table and spindle settings.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
