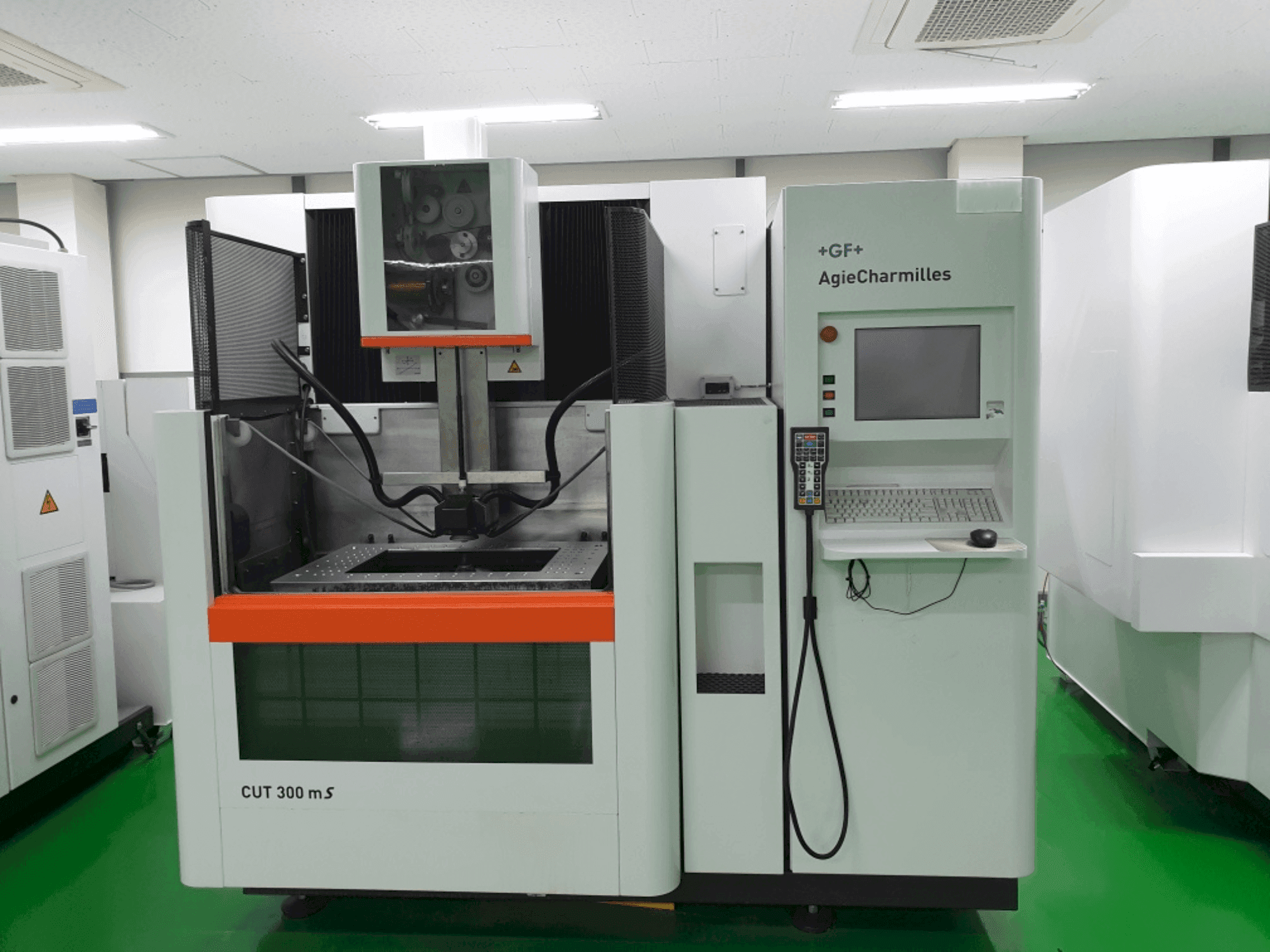

This 5-axis AgieCharmilles CUT 300MS was manufactured in 2016, featuring submerged wire-cutting technology. It supports a maximum workpiece size of 1200 × 700 × 400 mm and a weight up to 1500 kg. The machine offers rapid movement across X, Y, U, V axes at 9.8 m/min and includes integrated collision protection. If you are looking to get high-quality precision cutting capabilities, consider the AgieCharmilles CUT 300MS machine we have for sale. Contact us for more information.
Overview
- brand: AgieCharmilles
- year: 2016
- MODEL: CUT 300MS
- application type: EDM
- Location: South Korea
- machine type: Wire EDM Machine
Technical Information - AgieCharmilles CUT 300MS
Dimensions
- Machine Depth: 2600 mm
- Machine Height: 2340 mm
- Machine Weight: 3300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 550 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 400 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Workpiece dimensions (l×w×h): 1200 × 700 × 400 mm
- Dimensions of table (l×w): 860 × 650 mm
- Floor-to-table distance: 1000 mm
- Integrated collision protection: standard on 5 axes
- Max. Taper: ±45°/400 mm
Extra Information
Electricity Supply: Three-Phase Input Voltage 380/400 V Maximum Consumption: 11 kVA Paper Filters: 2 cartridges (option: 4 cartridges) Dielectric Temperature Variation: ±1 °C Total Volume of Deionization Resin (Optional): 20 liters
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
