AGIE - CUT 400 SpKR-EDM-AGI-2013-00002

Name: AGIE CUT 400 Sp
Brand: AGIE
SKU: KR-EDM-AGI-2013-00002
Price: 80000 EUR
Availability: InStock

80,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used AGIE CUT 400 Sp - Wire EDM For Sale | gindumac.com

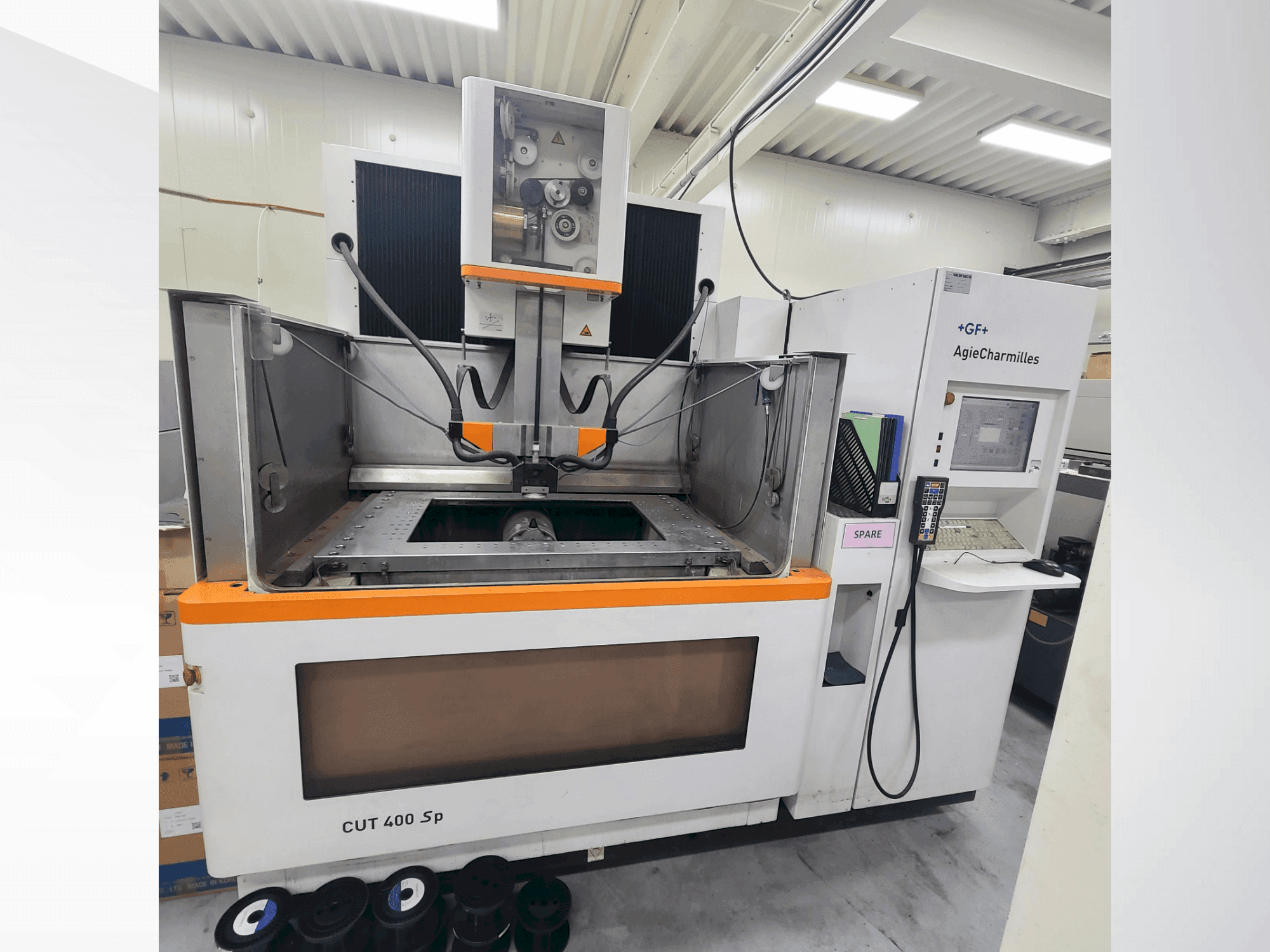

This 5-axis AGIE CUT 400 Sp wire EDM machine was manufactured in 2013. It features a high-speed CC generator, automatic threading, and rethreading for wires from 0.30 to 0.20 mm. The machine includes a PC-based control system with a touchscreen and offers advanced NC functions like 3D graphic simulation and integrated documentation. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 400 Sp machine we have for sale. Contact us for more information.

Overview

brand: AGIE
year: 2013
MODEL: CUT 400 Sp
application type: EDM
Location: South Korea
machine type: Wire EDM Machine

Technical Information - AGIE CUT 400 Sp

Main drive

Number of axis: 5

Additional Information

Additional equipment

Programmable Wire Tension: 0.3 to 3 daN / Automatic Threading and Rethreading for Wire: 0.30 to 0.20 mm
Large Spools: Weight 25 kg (K250)
NC Functions: File Management, AC CAM EASY, EDM-EXPERT, OPERATIONS ORGANIZER, Fast Measuring Cycles, 3D Graphic Simulation, Integrated Documentation, PART EXPRESS, Job List, SURFACE-EXPERT, POWER-EXPERT, PROFIL-EXPERT
Options: TAPER-EXPERT, e-Connect, e-Supervision, e-Control / Extended Taper Cutting: From 30° to 45° / Used Wire Processing: Wire Chopper
Rotating Axes: Index or Servo-Control / Automatic Part Leveling: 3D SET UP / Optical Measuring System: OMS / 3D Probing: Renishaw Probe

Machine Benefits

Technical Machine Benefits

Max. Cutting speed: 400 mm²/min
Min. Finishing: 0. 2 µm ra
Control unit: architecture: pc multiprocessors / operating system: windows / screen: lcd 15'' tft / data input: touchscreen / part program capacity: 4 mb / position measurement system / measurement resolution: linear glass scales / 0. 050 µm
Type of wire guides: closed diamond type without clearance / wire circuit / wire diameters available: 0. 30 to 0. 20 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
