➤ Used AGIE Progress 3 - Wire EDM For Sale | gindumac.com

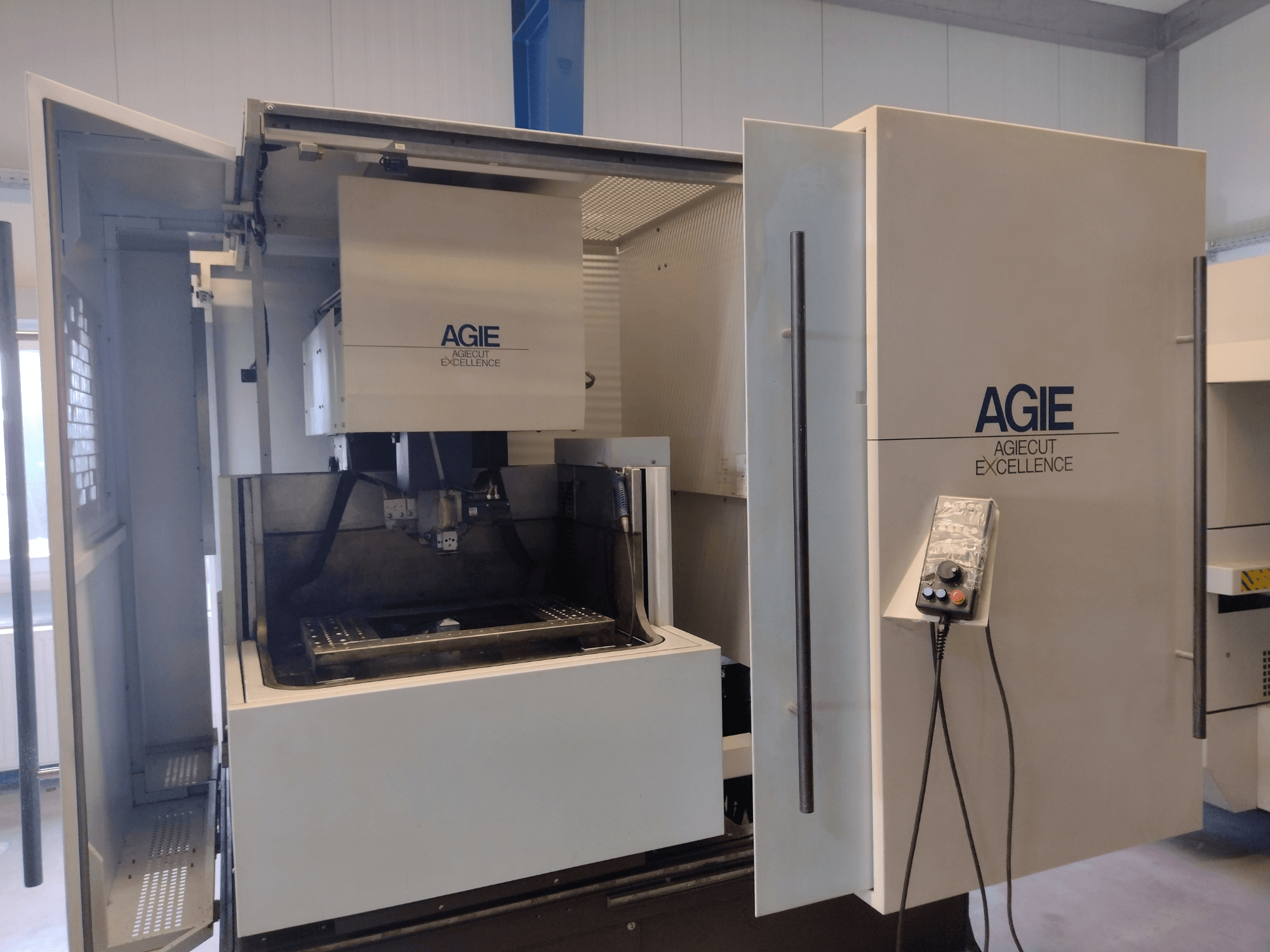

This 5-axis AGIE Progress 3 wire EDM machine was manufactured in 2006. It features travel paths of 500 x 350 x 430 mm and a maximum workpiece weight of 800 kg. The machine is equipped with the AGIE Vision control unit and includes various near-new clamping systems and a wire alignment device. If you are looking to get high-quality erosion capabilities, consider the AGIE Progress 3 wire EDM machine we have for sale. Contact us for further details.

Overview

brand: AGIE
year: 2006
MODEL: Progress 3
production hours: 3422
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: AGIE

Technical Information - AGIE Progress 3

Control Unit

Control Brand: AGIE
Control Model: Vision

Dimensions

Machine Weight: 3900 kg
Table Load: 800 kg

Movement

Number of Axes: 5
X-axis Travel: 500 mm
Y-axis Travel: 350 mm
Z-axis Travel: 430 mm

Technical Specification

Max. Wire Diameter: 0.33 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Max. Workpiece Weight: 400 / 800 kg
Max. Taper Angle: 30° / 100 mm
Space Requirement (L x W x H): 2.8 x 2.4 x 2.3 m
Power Frequency: 50 Hz
Nominal Power: 12.1 kVA
Rated Current: 17.5 A
Short-circuit Current: 10 kA
Cabinet / Generator Type: CABINET (IPG-CNC 02D)
Additional Equipment & Accessories: Various near-new clamping systems, wire alignment device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
