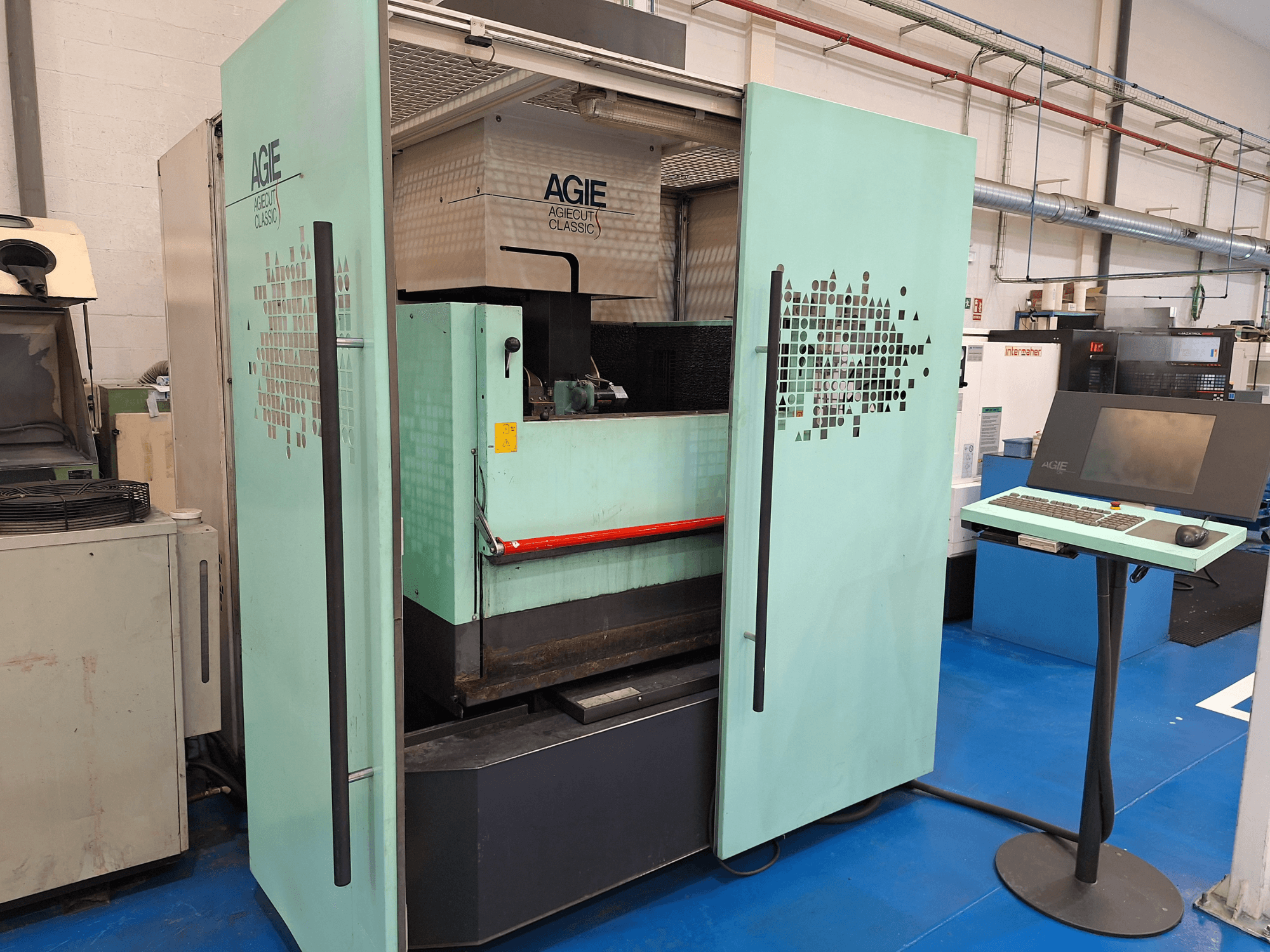

AGIE Classic 3s Wire EDM machine in front view, featuring a mint green exterior and a control panel on a stand.
AGIE Classic 3s Wire EDM machine in front view, featuring a mint green exterior and a control panel on a stand.

AGIE - Classic 3sES-EDM-AGI-2002-00002

18,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 5-axis AGIE Classic 3s wire EDM machine was manufactured in 2002. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 426 mm. The machine is equipped with a submerged head and includes a chiller, resin filters, and a wire feed/recovery system. If you are looking to get high-quality wire EDM capabilities, consider the AGIE Classic 3s machine we have for sale. Contact us for further details.

Overview

  • brand: AGIE
  • year: 2002
  • MODEL: Classic 3s
  • application type: EDM
  • Location: Spain
  • machine type: Wire EDM Machine

Technical Information - AGIE Classic 3s

Dimensions

  • Machine Weight: 3900 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 426 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.15 mm

Additional Information

  • U/V axes travel: ±70 mm

  • Number of controlled axes: 5 (X, Y, Z, U, V)

  • Taper cut: up to ±30°

  • Generator: MC 3S (Lista 030.844)

  • Axis driver (DA): DA MC 3S (Lista 030.834)

  • Electrical cabinet: Cabinet Classic 3S (Lista 027.254)

  • Power supply voltage: 3×400 V / 50 Hz

  • Installed power: 9 kVA

  • Rated current: 14 A

  • Dielectric: Deionized water

  • Heads type: Submerged with wire guide nozzles

  • Wire drive motor: +GF+ / Maxon Motor (Swiss made)

  • Circuit diagram: 628.992

Additional equipment

  • MTA chiller (included in the sale)

  • Resin filters

  • Deionizers

  • Wire feed/recovery system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
