AGIE - Agiecut Challenge 2DE-EDM-AGI-2002-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used AGIE Agiecut Challenge 2 For Sale | gindumac.com

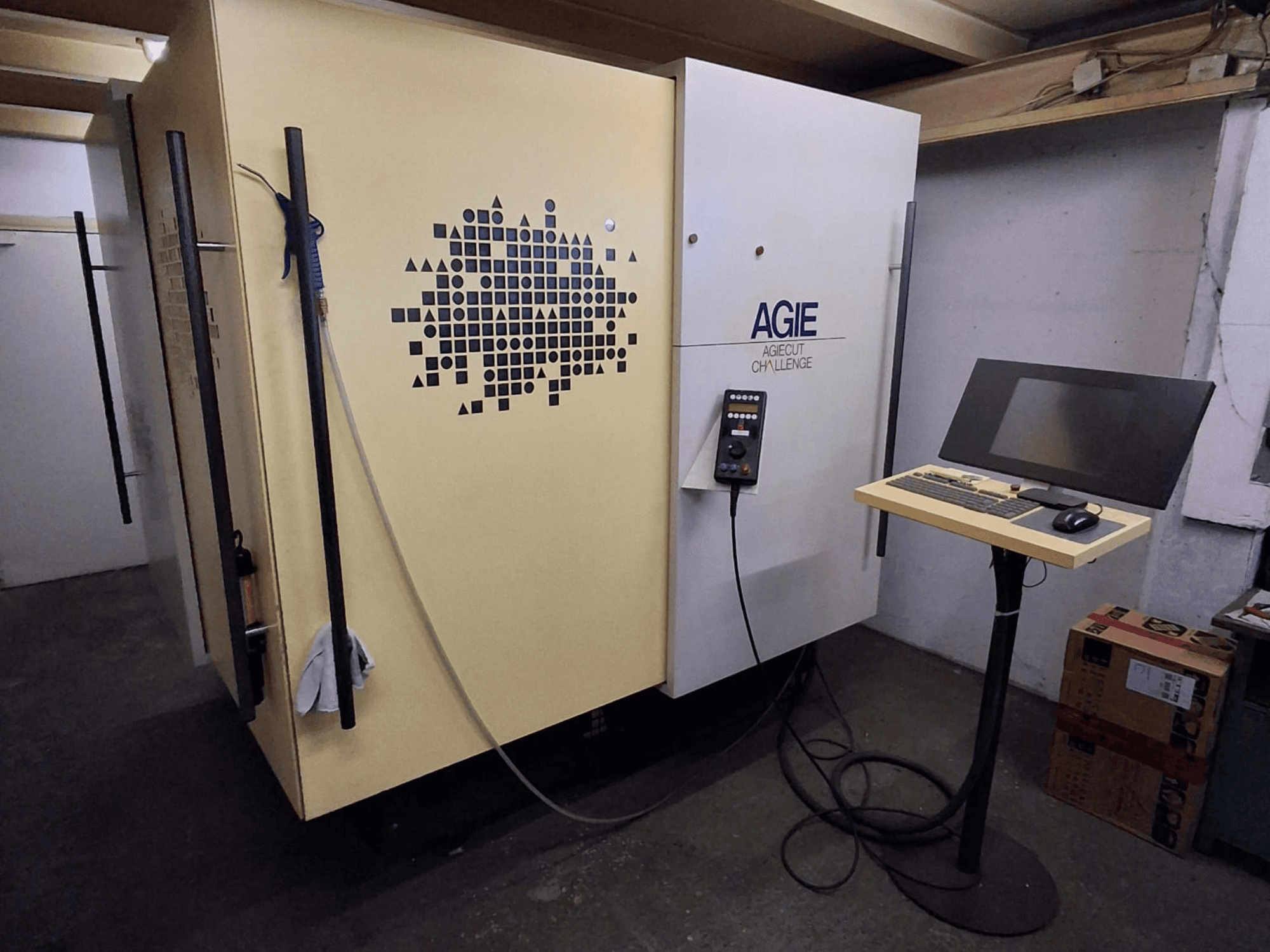

This 5-axis AGIE Agiecut Challenge 2 wire EDM machine was manufactured in 2002. It has a weight of 3600 kg and operates at a power of 9 kVA. The machine includes additional equipment such as an ICS Cool Energy i-Chiller external cooling unit and a standalone operator console terminal with screen, keyboard, and mouse. If you are looking to get high-quality wire EDM capabilities, consider the AGIE Agiecut Challenge 2 machine we have for sale. Contact us for further details.
Overview
- brand: AGIE
- year: 2002
- MODEL: Agiecut Challenge 2
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
Technical Information - AGIE Agiecut Challenge 2
Dimensions
- Machine Weight: 3600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 350 mm
- Y-axis Travel: 250 mm
- Z-axis Travel: 256 mm
Technical Specification
- Max. Wire Diameter: 0.33 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
- Voltage: 3 x 400 V
- Frequency: 50 Hz
- Power: 9 kVA
- Rated Current: 15.2 A
- Additional Equipment: ICS Cool Energy i-Chiller external cooling unit mounted on wooden pallet
- Additional Equipment: Standalone operator console terminal with screen, keyboard, and mouse
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
