CHARMILLES - ROBOFIL 240 CCDE-EDM-CHA-2003-00002

Name: CHARMILLES ROBOFIL 240 CC
Brand: CHARMILLES
SKU: DE-EDM-CHA-2003-00002
Price: 20000 EUR
Availability: InStock

20,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHARMILLES ROBOFIL 240 CC For Sale | gindumac.com

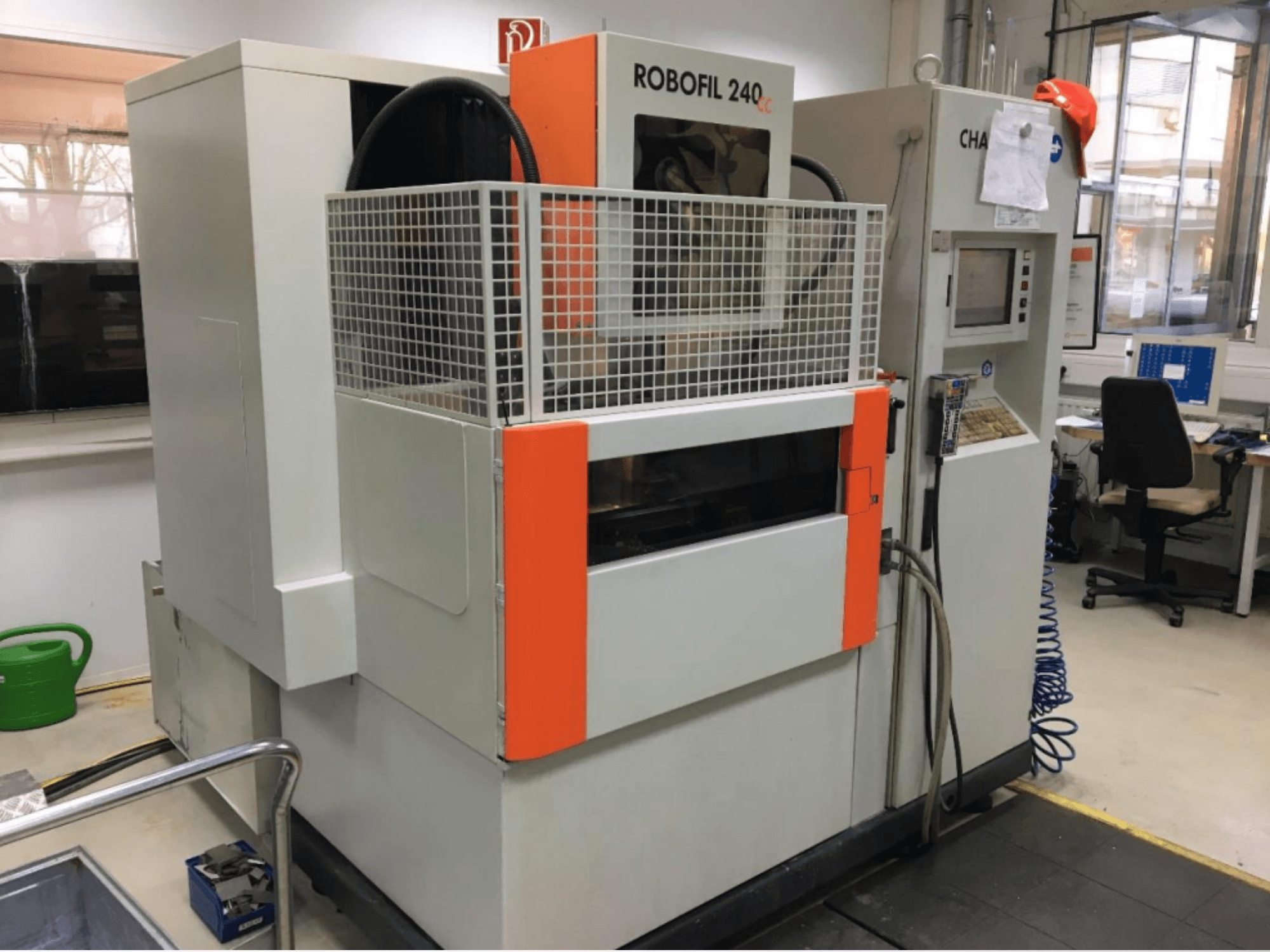

This 3-axis CHARMILLES ROBOFIL 240 CC was manufactured in 2003. It has a machine weight of 2100 kg and operates on a voltage of 400 V with a current of 18 A. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES ROBOFIL 240 CC machine we have for sale. Contact us for further details.

Overview

brand: CHARMILLES
year: 2003
MODEL: ROBOFIL 240 CC
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - CHARMILLES ROBOFIL 240 CC

Dimensions

Machine Height: 2000 mm
Machine Length: 2020 mm
Machine Weight: 2100 kg
Machine Width: 2050 mm
Table Length: 450 mm
Table Width: 680 mm

Movement

Number of Axes: 3
X-axis Travel: 350 mm
Y-axis Travel: 220 mm
Z-axis Travel: 220 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.15 mm

Additional Information

- Max. Workpiece Dimensions: 1000 x 550 mm

- Max. Workpiece Weight: 750 kg

- Dimensions: 2020 x 2050 x 2000 mm

- Electrical Phase: 3 ~ Phases

- Frequency: 50 / 60 Hz

- Voltage: 400 Volts

- Amperage: 18 A

- Power Capacity: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
