➤ Used Mitsubishi MV-4800 Wire EDM For Sale | gindumac.com

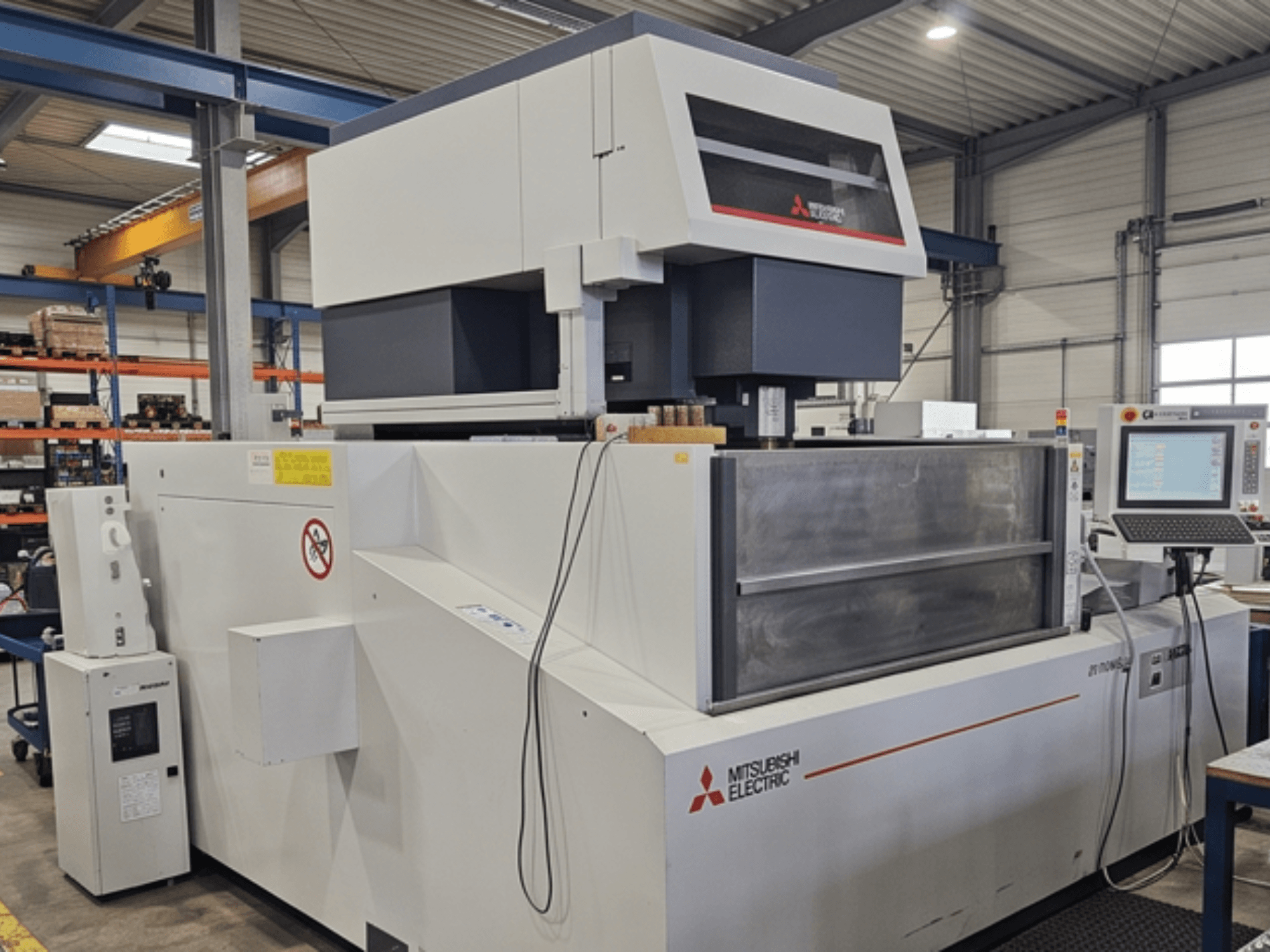

This 5-axis Mitsubishi MV-4800 wire EDM machine was manufactured in 2018. It features a travel capacity of 800 x 600 x 510 mm and can accommodate workpieces up to 1200 x 1020 x 505 mm with a maximum weight of 3000 kg. The machine is equipped with advanced control features, including a 15" touch screen and 3D CAD/CAM capabilities. If you are looking to get high-quality wire EDM capabilities, consider the Mitsubishi MV-4800 machine we have for sale. Contact us for further details.

Overview

brand: Mitsubishi
year: 2018
MODEL: MV-4800
application type: EDM
Location: Germany
machine type: Wire EDM Machine
control unit brand: MITSUBISHI

Technical Information - Mitsubishi MV-4800

Control Unit

Control Brand: MITSUBISHI
Control Model: MV-4800

Dimensions

Table Load: 3000 kg

Movement

Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 600 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.15 mm

Additional Information

- Travel (U, V): ±100 mm

- Maximum Workpiece Dimensions: 1200 x 1020 x 505 mm

- Maximum Workpiece Weight: 3000 kg

- Table Base: Closed mounting base, 4-side hardened frame table

- Drive System: Tubular direct drives in X/Y axes, Optical Drive System (ODS)

- Measuring System: Linear scales in X, Y, U, V axes

- Wire Threading: Intelligent AT - Automatic wire threading without water jet (for wire diameter 0.15 - 0.3 mm)

- Wire Station: 20 kg wire station

- Control Unit: MITSUBISHI ELECTRIC ADVANCE M700 with 15" Touch Screen

- Control Features: 3D CAD/CAM on board, 10 GB user hard drive, ESPERADVANCE dialog system, 3D Parasolid import, 3D graphic check, Hand pilot

- Control Interfaces: Ethernet TCP-IP, 2 x USB Port, prepared for mcAnywhere

- Generator & Processing Technologies:

- PFC (Precise Finish Circuit) high-speed sensing

- HSS-AE Anti-Electrolysis Generator

- ECONO CUT wire consumption reduction

- POWER MASTER process safety system

- CORNER MASTER³ radius shaping

- ORBIT MASTER circular machining

- DIGITAL AE II parallelism optimization

- SL-CONTROL for height steps

- TS-MASTER for homogeneous surface structures

- Equipment: Automatic fine hole search, Easy 3D-Setup, Wire alignment block, Wire chopper, Compressor cooler, E.KO IONISER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
