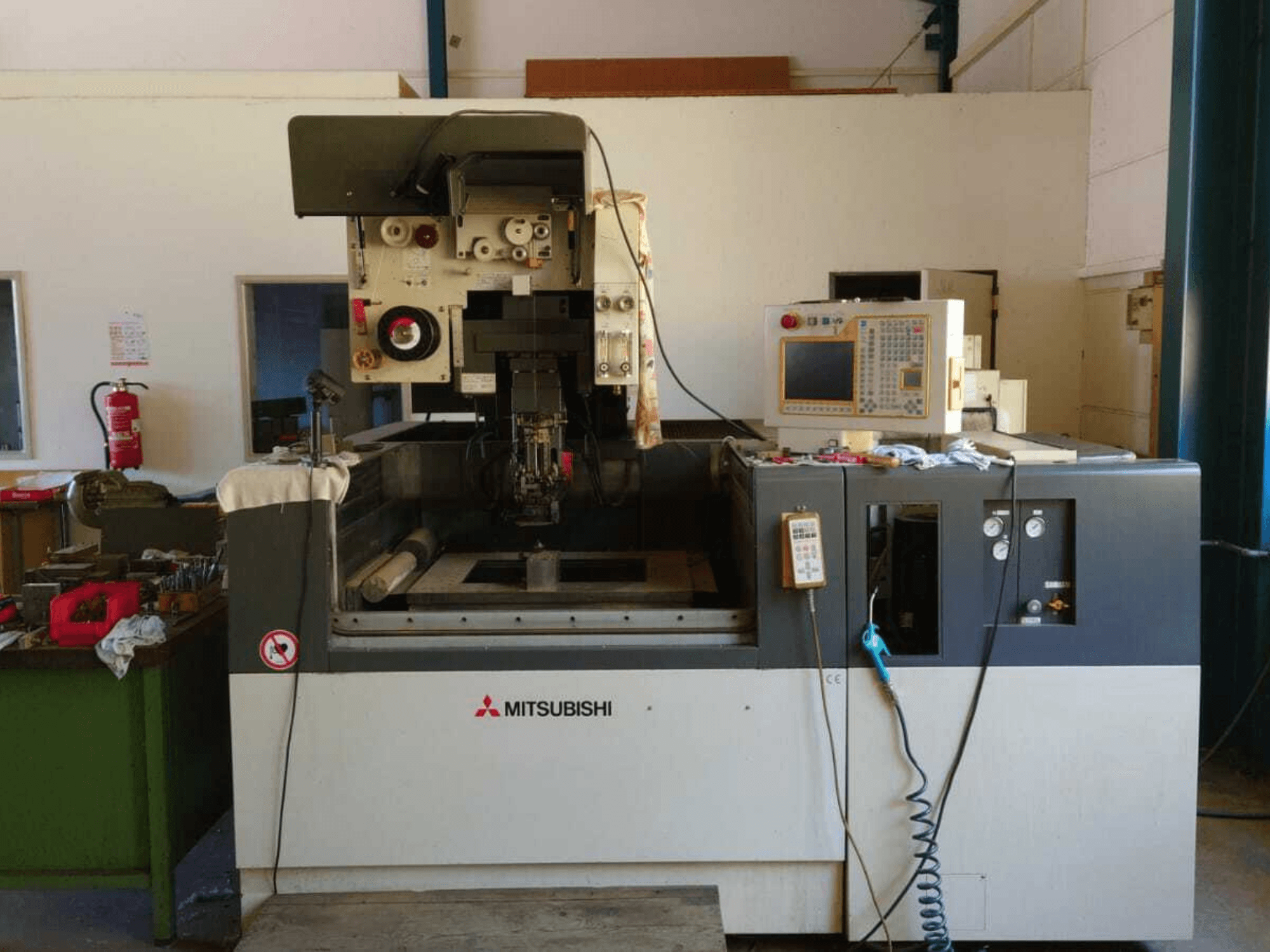

This 5-axis Mitsubishi FA20 wire EDM machine was manufactured in 2004. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 300 mm. The machine can handle workpieces up to 1050 mm x 800 mm x 295 mm and has a maximum workpiece weight of 1500 kg. If you are looking to get high-quality EDM capabilities, consider the Mitsubishi FA20 wire EDM machine we have for sale. Contact us for further details.
Overview
- brand: Mitsubishi
- year: 2004
- MODEL: FA20
- application type: EDM
- Location: Germany
- machine type: Wire EDM Machine
- control unit brand: MITSUBISHI
Technical Information - Mitsubishi FA20
Control Unit
- Control Brand: MITSUBISHI
- Control Model: CNC Control
Dimensions
- Machine Height: 2100 mm
- Machine Length: 2420 mm
- Machine Weight: 3500 kg
- Machine Width: 2710 mm
Movement
- Number of Axes: 5
- X-axis Travel: 500 mm
- Y-axis Travel: 350 mm
- Z-axis Travel: 300 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
- Max. Workpiece Dimensions: 1050 mm x 800 mm x 295 mm
- Max. Workpiece Weight: 1500 kg
- Certification: CE Marked
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
