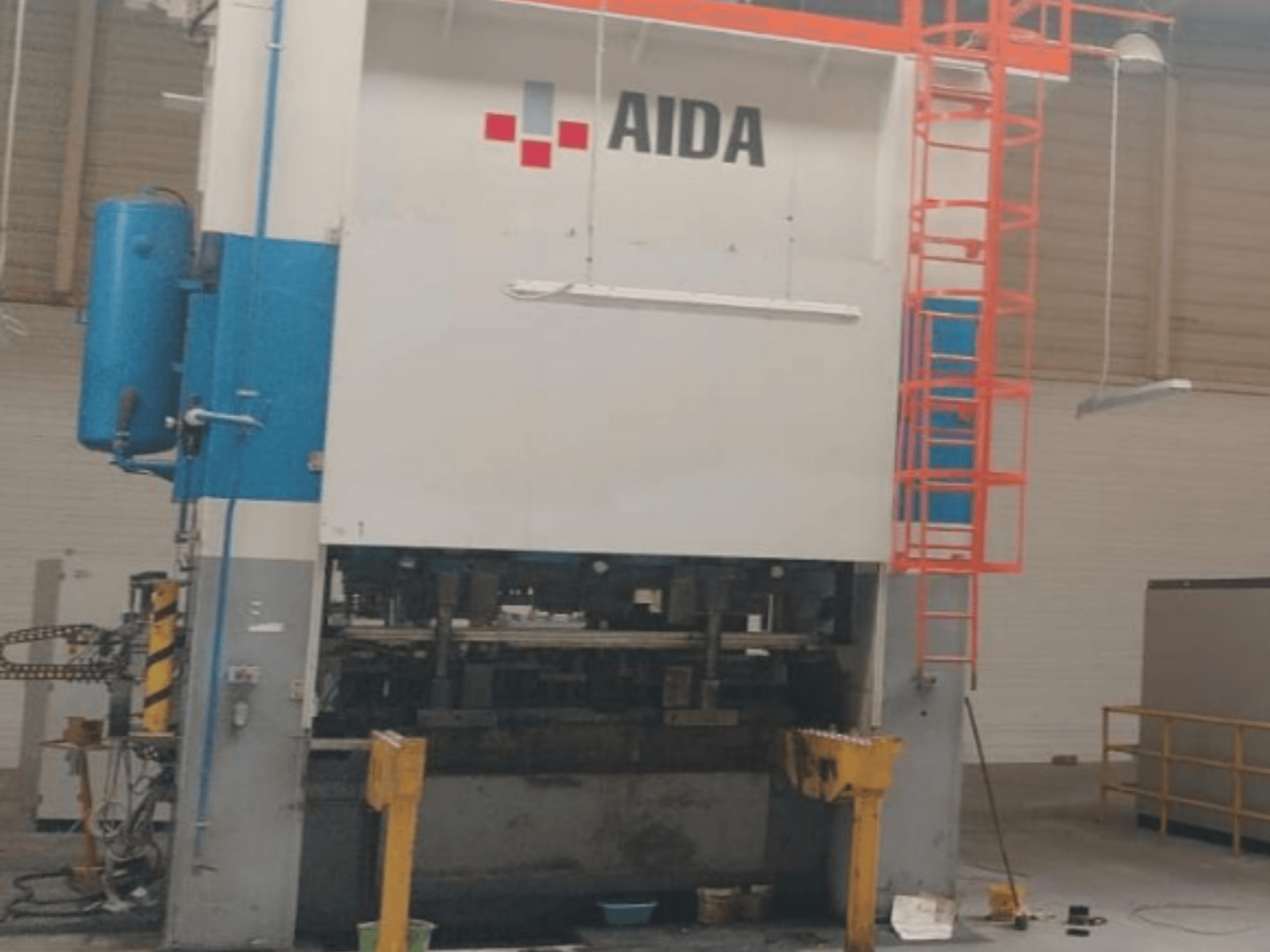

AIDA - 315/2MR/LD/TE3ES-STA-AID-2016-00001

Main technical data:

• Press capacity: 315 ton

• Rated press force: 3,150 kN

• Rated capacity point: 12.7 mm above BDC

• Normal crankshaft stop position: TDC

• Stroke length: 250 mm

• Slide adjustment: 160 mm

• Shut height: 700 mm

• Slide speed: 15–40 strokes/min

• Maximum flywheel speed: 628.5 rpm

• Maximum clutch engagements: 24/min

• Stopping time: 0.386 s

• Safety distance: 618 mm

Die and working area:

• Maximum die size: 2,250 × 750 mm

• Maximum die weight on slide: 10,200 kg

Machine structure:

• Frame design: double upright (straight-side) frame

• Drive system: double connecting rod (double pitman)

• Slide guidance: guided slide

• Motion type: mechanical crank press

• Slide movement: vertical reciprocating motion

• Main axis movement: rotary crankshaft drive

• Ram/slide adjustment: motorized

Cushion system:

• Type: integrated drawing cushion

• Maximum cushion force: 3,450 daN at 0.6 MPa

Auxiliary systems:

• Counterbalance cylinders: yes (counterbalance force 102 kN at 6 bar)

• Clutch & brake system: pneumatic

• Lubrication system: centralized automatic lubrication

• Safety system: integrated

• Operator protection: included

• Automation ready: yes

Performance and safety highlights:

• High-rigidity double-upright frame construction

• Double-pitman drive for improved slide parallelism and load distribution

• Pneumatic clutch-brake for reliable operation and fast stopping

• Integrated safety and operator protection systems

• Designed for integration with automatic feeding and transfer systems
