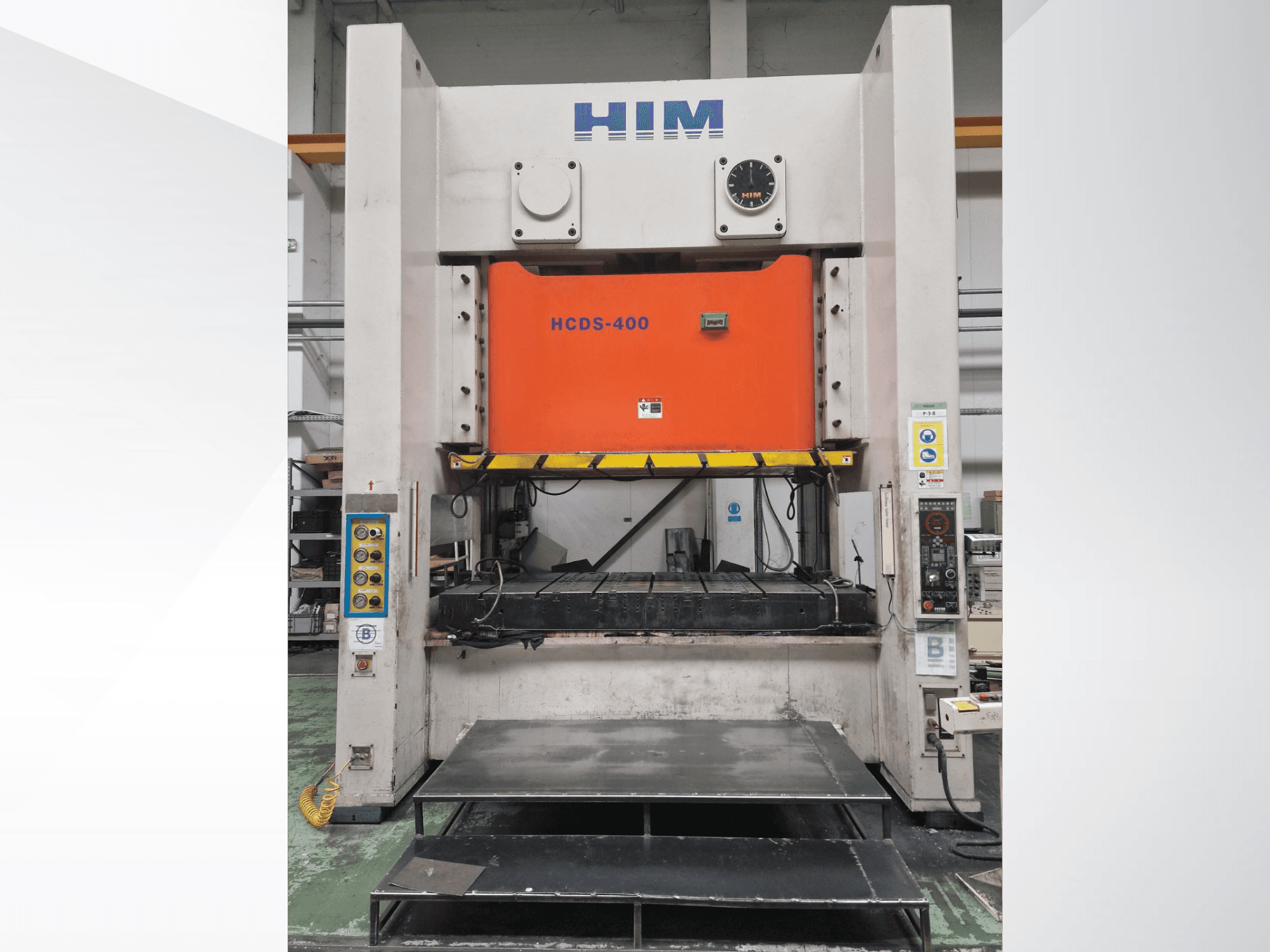

Front view of HIM HWAIL PRESS HCDS-400 mechanical stamping press with an orange stamping plate and control panel.
Front view of HIM HWAIL PRESS HCDS-400 mechanical stamping press with an orange stamping plate and control panel.

HIM HWAIL PRESS - HCDS-400HU-STA-HIM-2011-00001

118,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Mechanical stamping press manufactured in 2011. This HIM HWAIL PRESS HCDS-400 features a press capacity of 400 tons and a stroke length of 280 mm. It includes a slide area of 2600 x 1100 mm and a bolster area of 2700 x 1200 mm. If you are looking to get high-quality stamping capabilities, consider the HIM HWAIL PRESS HCDS-400 machine we have for sale. Contact us for further details.

Overview

  • brand: HIM HWAIL PRESS
  • year: 2011
  • MODEL: HCDS-400
  • application type: Stamping
  • Location: Hungary
  • machine type: Mechanical Stamping Press

Technical Information - HIM HWAIL PRESS HCDS-400

Dimensions

  • Machine Height: 4800 mm
  • Machine Length: 3550 mm
  • Machine Weight: 68000 kg
  • Machine Width: 2850 mm

Technical Specification

  • Max. Stroke: 280 mm
  • Stamping Force: 4000 Kn

Additional Information

  • Press capacity: 400 ton

  • Rated tonnage point above B.D.C.: 7 mm

  • Strokes per minute: 35 SPM

  • Stroke length: 280 mm

  • Die height: 550 mm

  • Slide adjustment: 120 mm

  • Slide area (L x W): 2600 x 1100 mm

  • Bolster area (L x W): 2700 x 1200 mm

  • Bolster thickness: 230 mm

  • Working height: 1200 mm

  • Side opening: 1100 x 700 mm

  • Main motor: AC 37 kW x 4 / VS 45 kW x 4

  • Slide adjustment motor: 2.2 kW x 4

  • Required air pressure: 5 kg/cm²

  • Die cushion capacity: 16 x 2 ton

  • Die cushion stroke: 130 mm

  • Pad area (L x W): 1400 x 650 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
