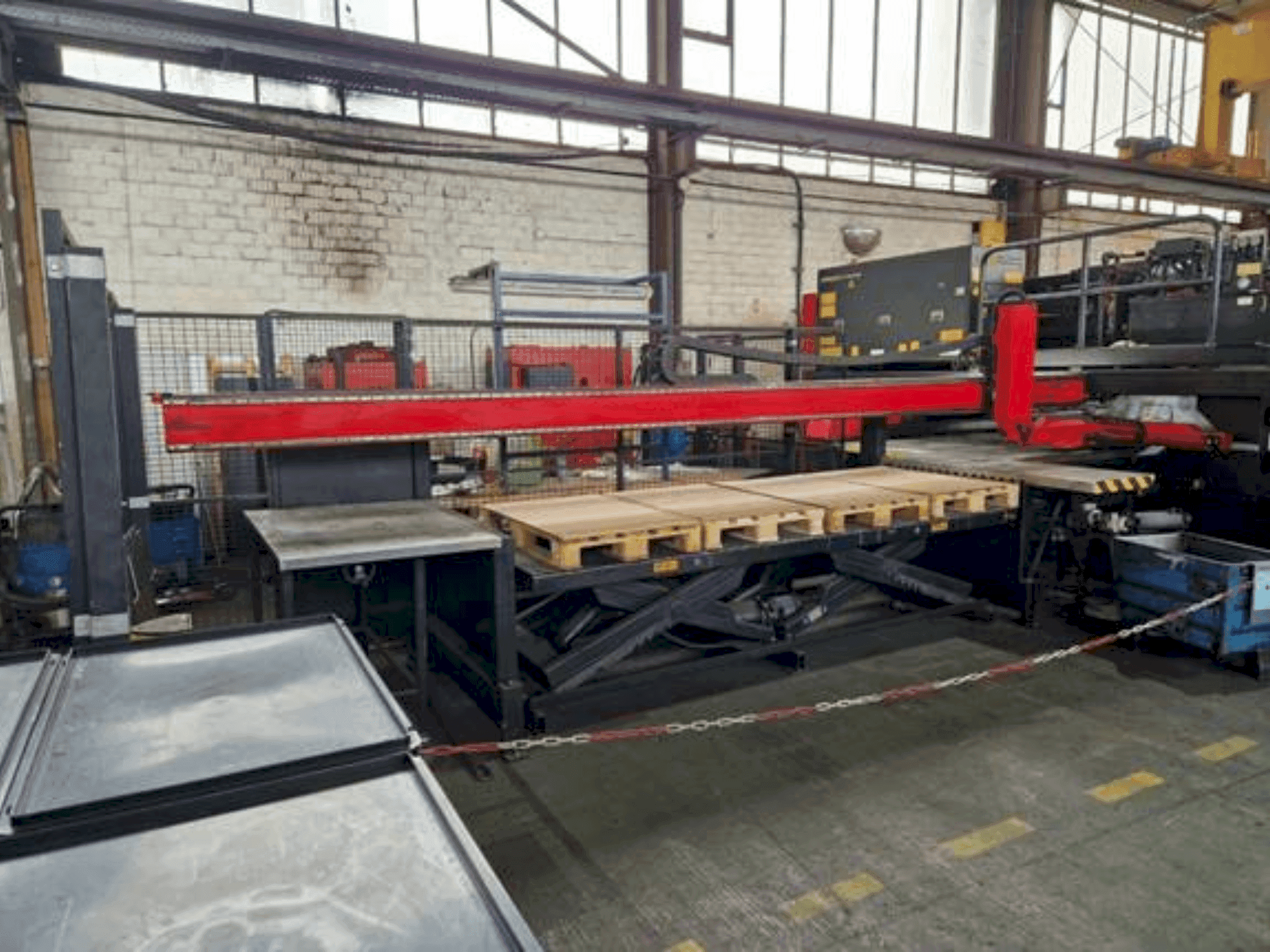

AMADA AP3-2610 V

Photo Gallery

AMADA - AP3-2610 VDE-CUT-AMA-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA AP3-2610 V For Sale | gindumac.com

This 3-axis AMADA AP3-2610 V was manufactured in 2000, featuring a unique punch-laser combination. It includes a cooling system, extraction system, unloading unit, and loading unit, all from Amada. Despite its high total operating hours, the laser resonator has only 7,368 hours. If you are looking to get high-quality cutting capabilities, consider the AMADA AP3-2610 V machine we have for sale. Contact us for more information about this machine.

Overview

brand: AMADA
year: 2000
MODEL: AP3-2610 V
production hours: 106000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine

Technical Information - AMADA AP3-2610 V

Movement

Number of Axes: 3

Additional Information

Machine Benefits

Technical Machine Benefits

The machine is currently out of service due to a defective servo valve on the high-pressure side.
The laser resonator has approximately 7368 hours of operation according to the hour counter.

Extra Information

Max. sheet dimensions 2500 x 1525/ Max. sheet thickness 6.4 mm/ Max. sheet weight approx. 280/ Machine travel range (X) x (Y) 2500 x 1520 mm/ Laser head travel range (Z) 300 mm/ Max. cutting speed (laser cutting) 15 m/min/ Max. feed rate/ X = 100 m/min/ Y = 80 m/min/ Z = 60 m/min/ T = 35 min-' (rpm)/ C = 60 min-' (rpm)/ Positioning accuracy +- 0.05 mm / 1000 mm/ Positioning repeatability +- 0.01 mm/ Punching accuracy +- 0.1 mm/ Pressing capacity 196 kN/ Press stroke Variable up to 50 mm/ Punching speed 34 (25.4 mm punching)/ Punching speed (8 mm punching) 410/ Turret mount 31 stations/ Auto-indexing device optional/ Air supply 1000 l/min / 250 l/min/ Operating air pressure 8.5 bar / 5 bar/ Electrical connection 200 V (+-10%), 50/60 Hz, 20 kVA, 3 phases/ Width 5077 mm/ Depth 5120 mm/ Height 2825 mm/ Weight 17 tons

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
