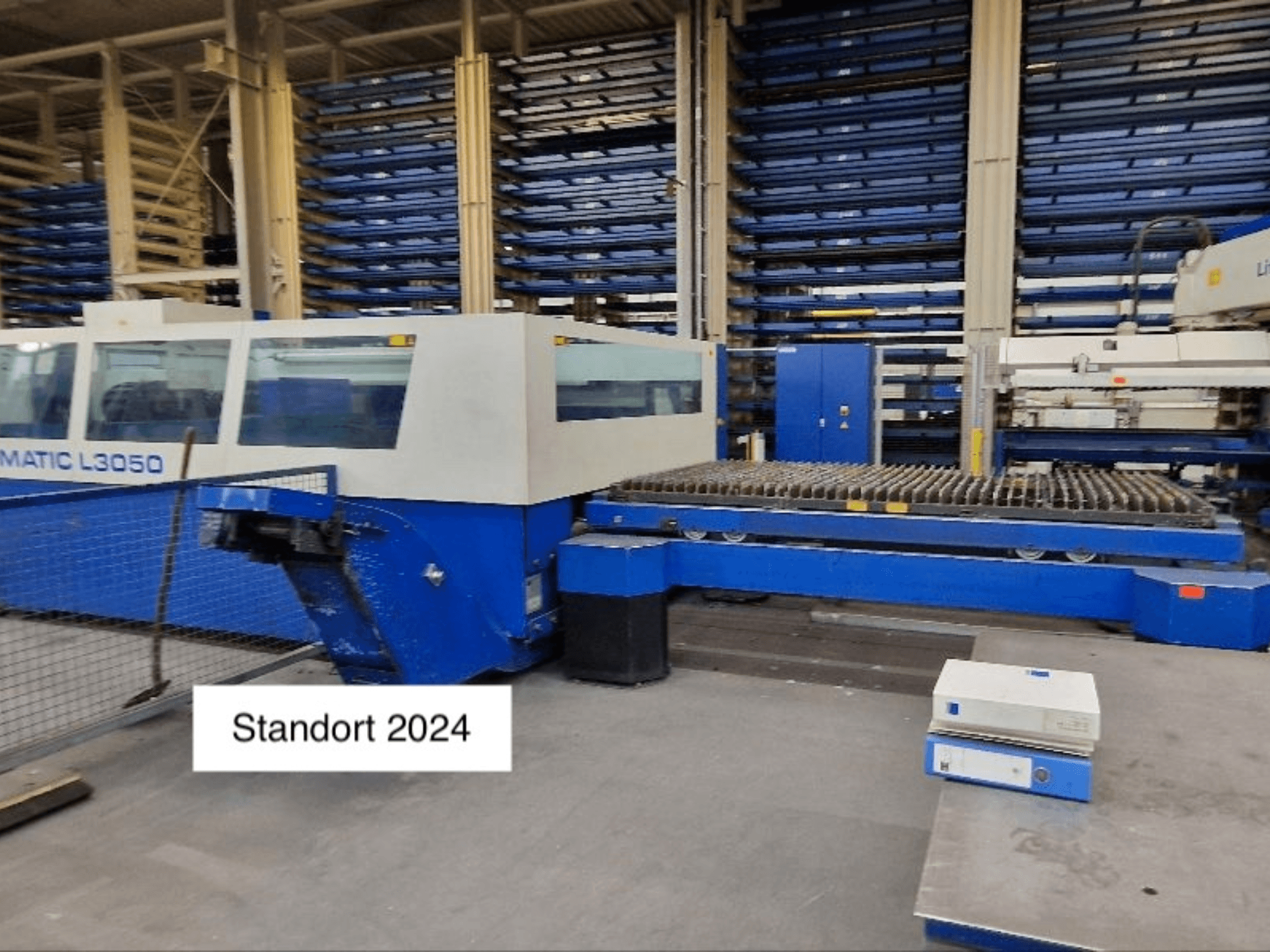

This 3-axis TRUMPF Trumatic L3050 was manufactured in 2004. It features a working range of 3,000 x 1,500 x 115 mm and a maximum workpiece weight of 900 kg. The machine is equipped with a powerful 6 kW CO2 laser, capable of cutting through materials up to 25 mm thick for iron and stainless steel, and 15 mm for aluminum. If you are looking to get high-quality laser cutting capabilities, consider the TRUMPF Trumatic L3050 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2004
- MODEL: Trumatic L3050
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - TRUMPF Trumatic L3050
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Control system: Siemens Sinumerik 840 D
Working area: 3000 × 1500 × 100 mm
Paint: white RAL 9002 / gentian blue RAL 5010
Enclosed machine frame with integrated laser unit
Laser unit: CO₂ laser TLF 5000, high-frequency excited
Cooling unit, logbook function
Automatic pallet changer
Longitudinal conveyor for small parts/waste
Drives: gantry drive combined with linear direct drives
Laser power control
HI-LAS high-pressure cutting
PMS plasma sensor system
High-speed processing with SprintLas
ContourLas for producing small holes
Programmable power cycles
Microweld
Programmable cutting gas pressure control
Laser cutting head with 5" lens and 7.5" lens
Quick-change system for cutting heads
Automatic sheet edge detection
APC capacitive height control and process control
PCS (Process Control System)
Positioning laser diode
Automatic focus adjustment (AutoLas Plus)
Spray device for safe thick sheet processing
Automatic shutdown
Working area lighting
Max. workpiece weight: 900 kg
Positioning speed (X/Y): 200 m/min
Simultaneous positioning speed (X+Y): 300 m/min
Maximum iron thickness: 25 mm
Maximum stainless steel thickness: 25 mm
Maximum aluminum thickness: 15 mm
Sinumerik 840D control:
Open PC-based control system
Easy operation
Online help
Diagnostic functions
Maintenance logbook
Technology data
Remote service
Shopfloor programming: ToPs 100 lite
Safety
Multi-beam light barriers
Fully enclosed beam guidance with nitrogen ventilation
Monitoring system
Multi-chamber extraction and compact dust collector
Protective enclosure
Software for Machine System
TruTops Laser postprocessor TCL 3050 – 1 unit
Control system software Cell machine TCL3050 (2nd license)
Additional equipment
TRUMPF LiftMaster loading and unloading unit (currently not installed)
Base unit incl. sheet separation device and thickness measuring system
Rack extension (R), interchangeable tines
Pallet handling extension (P)
Separation of thin sheets (1–2 mm)
Third position without unloading station
Unloading station
Stainless steel tines for low-scratch handling
LiftMaster base frame for warehouse connection and double loading/unloading carts
Safety devices: second light barrier circuit
Extended Machine Equipment
Cutting head with 3.75" lens for high-speed cutting
Additional cutting head with 10" lens for thick sheet processing
Automation Preparation (for future upgrade)
Preparation for LiftMaster (standard pallets)
Includes installation, commissioning, and training
Includes warranty, transport, and packaging
Network connection
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
