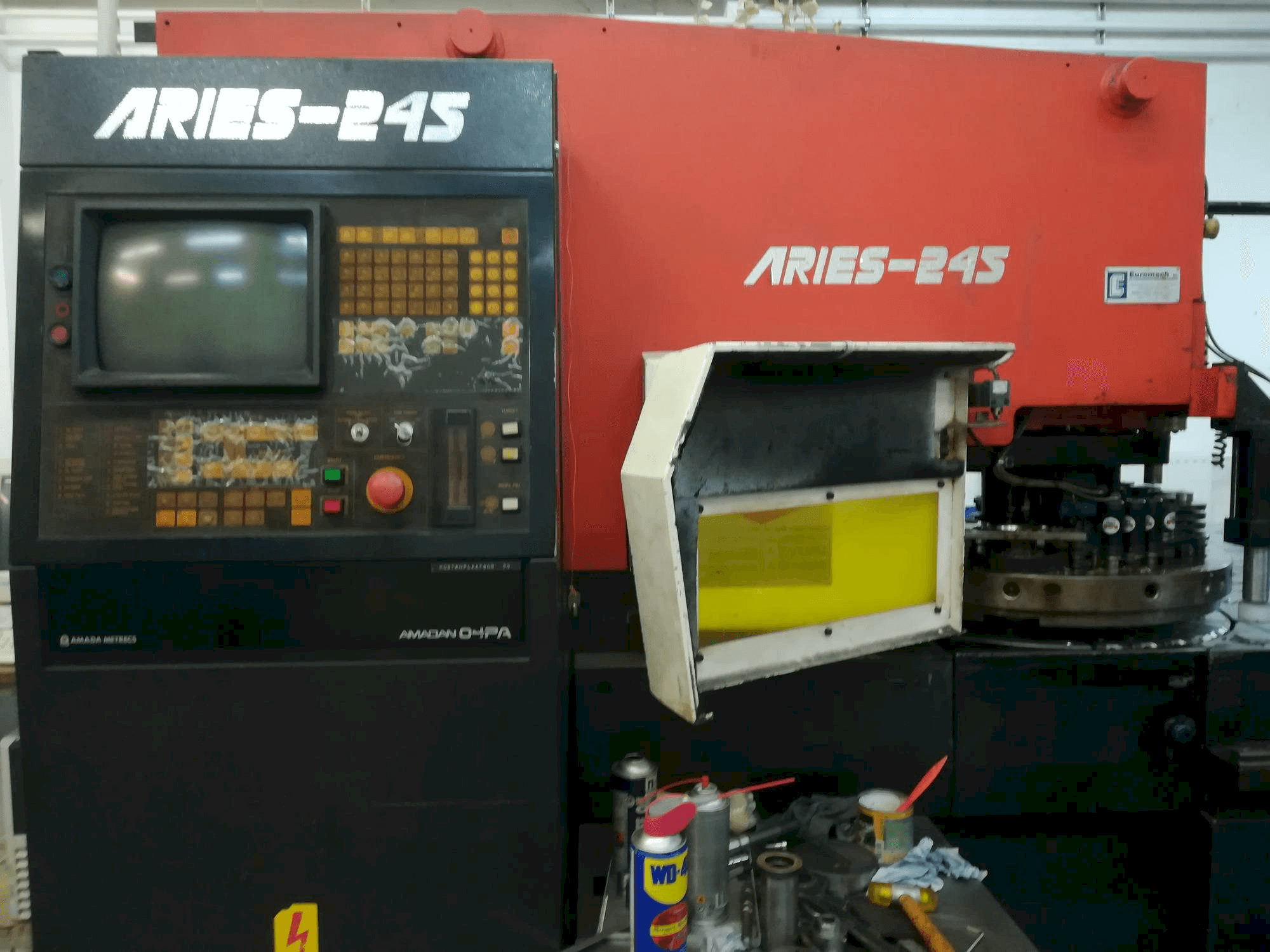

Front view of AMADA Aries 245 20Ton machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA Aries 245 20Ton

Photo Gallery

AMADA - Aries 245 20TonHU-PUN-AMA-1989-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
AMADA Aries 245 20Ton Punching Machine

This AMADA Aries 245 20Ton Punching Machine was built in the year 1989. It is equipped with a control unit of the same brand. This machine can perform with a press stroke 32 mm, a punching hit rate 180 hits/min at 25 mm, and a max worksheet thickness 4.5 mm.

Overview

brand: AMADA
year: 1989
MODEL: Aries 245 20Ton
application type: Punching
Location: Hungary
machine type: CNC Punch Press

Technical Information - AMADA Aries 245 20Ton

General Data

Measurements width: 2700 mm
Measurements depth: 3784 mm
Measurements height: 1950 mm
Machine weight: 7500 kg

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 1000 mm

Media

Power consumption: 11 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Press capacity: 20 metric tons
Max worksheet size (x x y): 2450 x 1000 mm
Punching accuracy: +- 0. 10 mm
Press stroke: 32 mm
No. Of press strokes: 300 strokes/min
Punching hit rate: 180 hits/min at 25 mm
Press motor: 3. 7 kw
Turret rotating speed: 20 rpm
Table feed rate: 40m/min

Machine History

Material thickness

4,5 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
