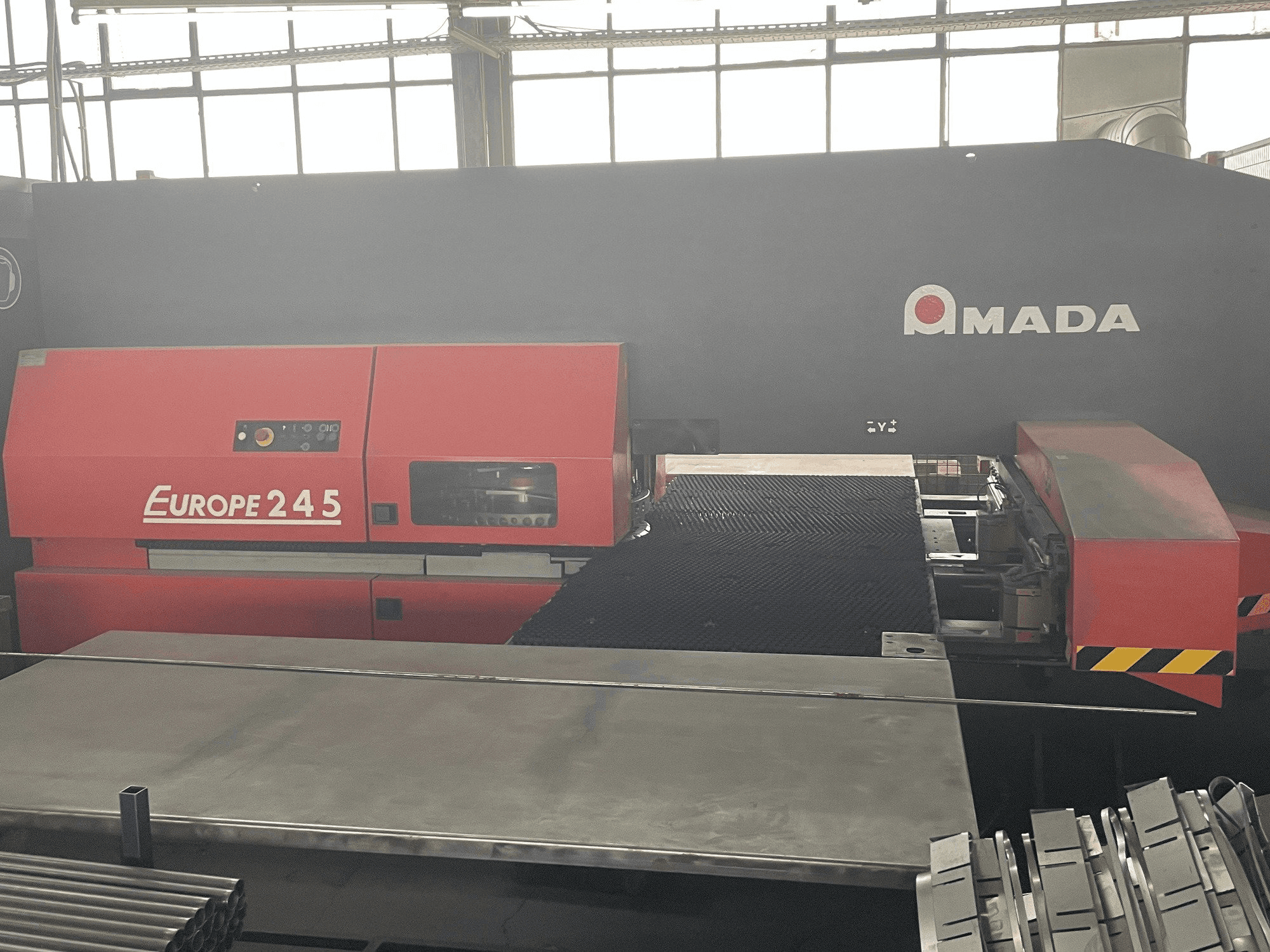

This AMADA Europe 245 Punching machine was manufactured in the year 2001 in France. It is equipped with a FANUC Series 18 i-P control unit. The machine has a punching force of 200 kN.
Overview
- brand: AMADA
- year: 2001
- MODEL: Europe 245
- application type: Punching
- Location: Germany
- machine type: CNC Punch Press
- control unit brand: FANUC
Technical Information - AMADA Europe 245
Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-P
Dimensions
- Machine Weight: 10000 kg
Technical Specification
- Punching Force: 200 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Number of pneumatic clamps/grippers : 2
- Number of simultaneously controlled axes : 3: x, y, c
- Speed of the turret : 25 rpm
- Number of strokes per minute, distance 25. 4 mm, cylinder stroke 6. 5 mm : 220 strokes/min.
- Punching stroke, distance 1 mm, cylinder stroke 6. 5 mm : 480 strokes/min.
- Minimum programmable step size: 0. 001 mm
- Number of tool stations: 27, 3 of which are rotating
- Max. Tool diameter : 88. 9 mm
- Turning stations : 2x1 1/4"; 1x2"
- Max. Sheet thickness for turning station : 3 mm, lower feed point : 4 programmable points work table : x=600, y=400 memory capacity : 64 (~63 programs) kb graphic display : 10,4" lcd stop time : 295 ms air pressure : 5 kg/cm2 (bar) air volume : 250 nl/mn oil volume : 160 l light curtain (3 beams) : standard in european countries installed power : 27 kw machine dimensions : l=4460 mm, l=2750 mm, h=2130 mm
Technical Machine Benefits
- Max stroke: 1290 mm
- Min separation distance: 1,3 m
- Witdh guard area: 70 m
- Max. Punching format without interception device and with head 31 stations : 1020 x 1290 (y-10; y1010 t2xx; y-50; y970 t3xx)
- Max. Punched sheet size with intercepting device : 1020 x 2540 mm
- Max. Punched sheet format with intercepting device + 1 turn (optional) : 1500 x 2540 mm
- Max. Sheet thickness on the brush table : 3 mm
- Max. Permissible weight on the table : 100 kg
- Punching accuracy : +-0. 1 mm
- Positioning accuracy : +-0. 07 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
