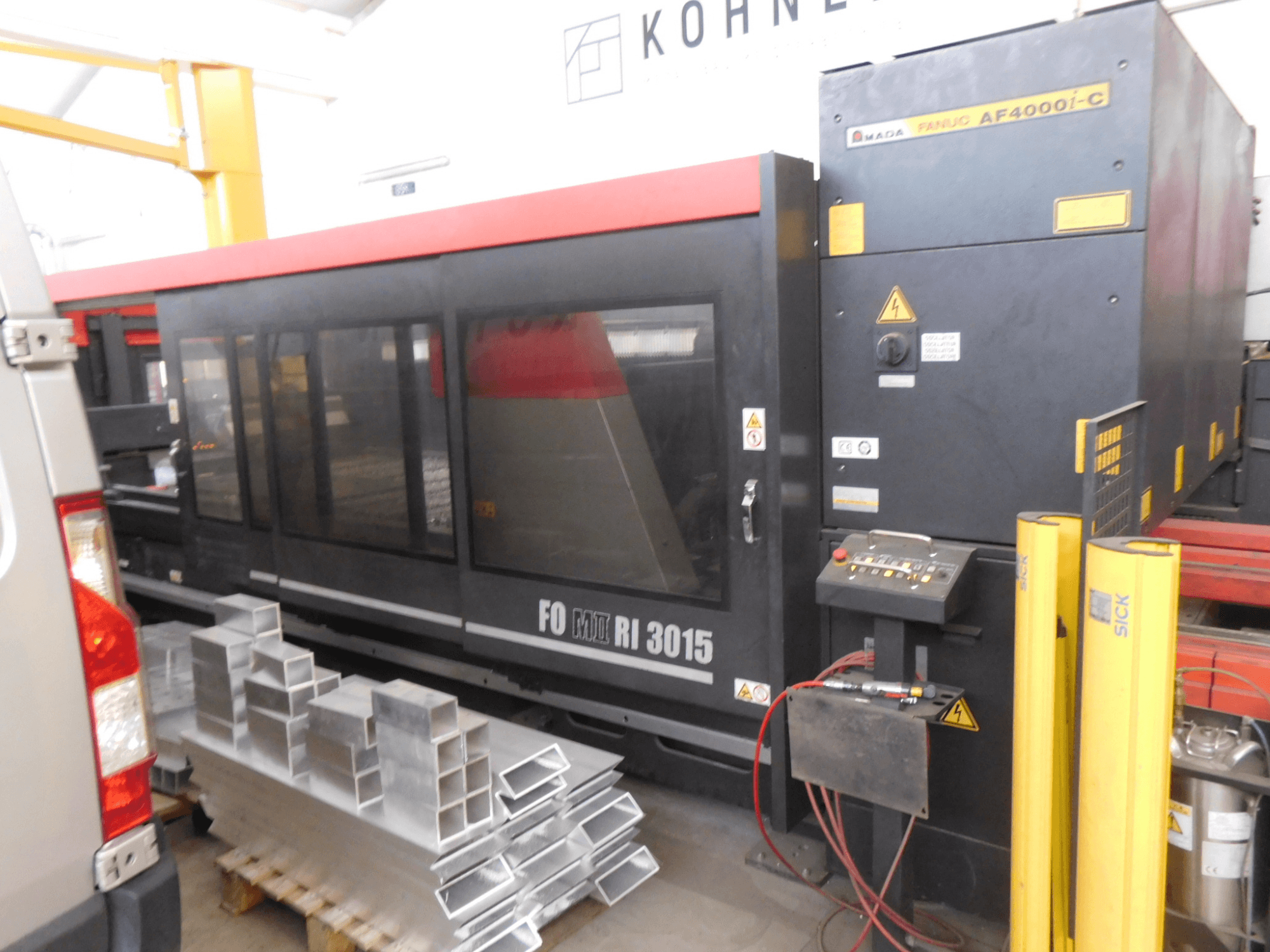

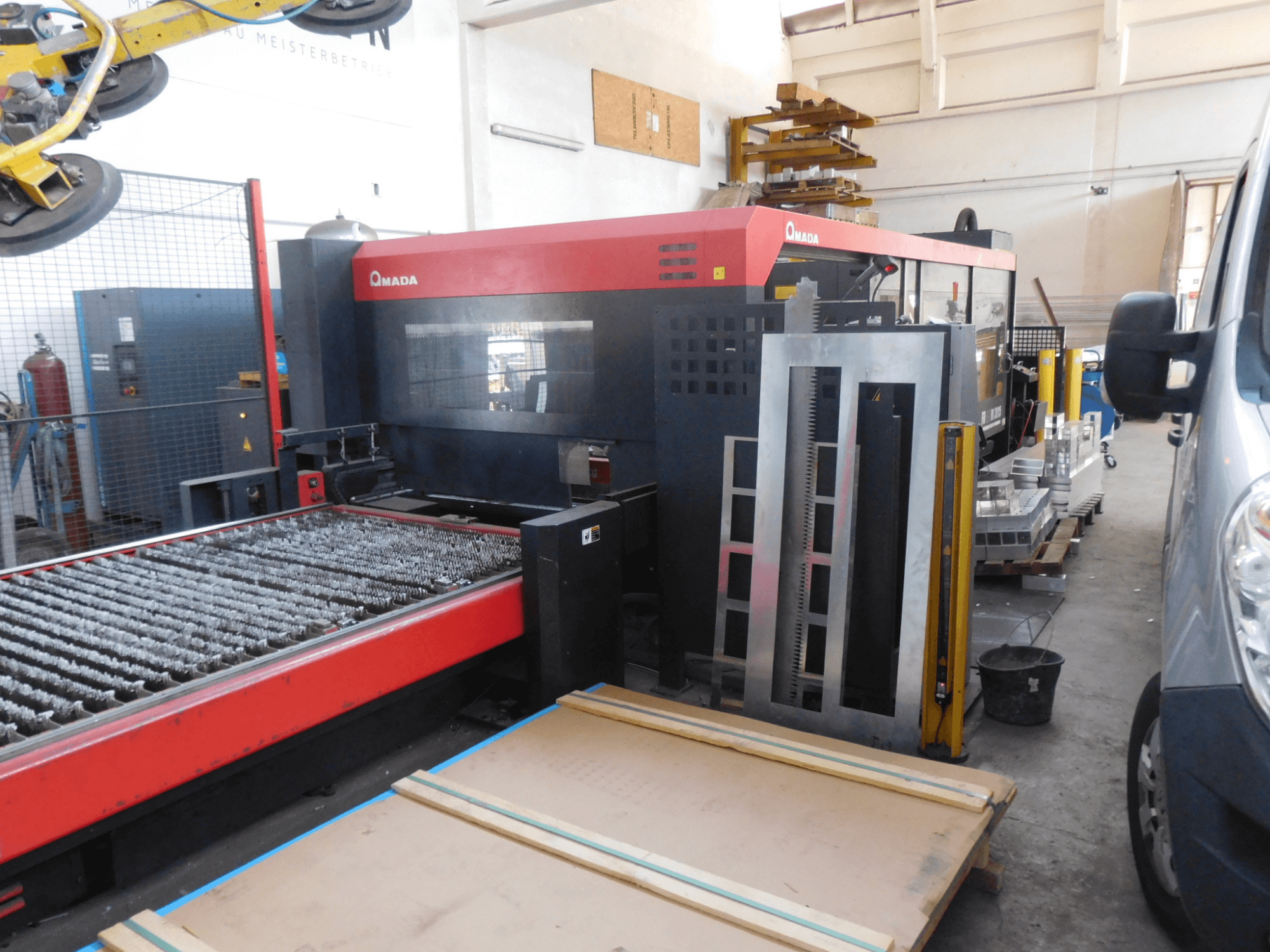

This 4 axis CO2 laser cutting machine was manufactured in 2013 and features a powerful 4000 W Amada Fanuc AF4000i-c laser source. With a 3070 x 1550 mm travel range and a rotary index unit for tube processing, it is also equipped with the AMNC 3i control unit and a pallet changer for enhanced productivity. If you are looking to get high quality cutting capabilities, consider the AMADA FO-3015 II RI machine we have for sale. Reach out for more information.
Overview
- brand: AMADA
- year: 2012
- MODEL: FO-3015 II RI
- application type: Cutting
- Location: Germany
- machine type: CO2 Laser Cutting Machine
Technical Information - AMADA FO-3015 II RI
Movement
- Number of Axes: 4
- X-axis Travel: 3070 mm
- Y-axis Travel: 1550 mm
Technical Specification
- Laser Power: 4 kW
Additional Information
Laser Type: CO2 Laser, AC-HF excited, fast axial flow
Laser Output: 4000 Watts (Continuous), 5000 Watts (Peak)
Optical system: Flying optics
Travel Range (X x Y x Z): 3070 x 1550 x 200 mm
Max. Table Load: 920 kg
Max. Material Thickness (Mild Steel): 20 mm
Positioning Speed: 80 m/min (X/Y), 60 m/min (Z), 113 m/min (simultaneous)
Positioning Accuracy: ± 0.01 mm / 500 mm
Positioning Repeatability: ± 0.005 mm
Control unit: AMNC 3i (21.5-inch screen)
Laser source type: AO4B-0815-B342 (YOM 2013, S/N L13X40476)
Laser stability: ± 2%
Laser gas consumption: approx. 10 l/h
Laser gas mixture:
CO₂: 5 ± 0.25%
He: 60 ± 3%
N₂: 35 ± 1.75%
Beam mode: approximately TEM₀₀
Beam divergence: less than 2 mrad
Pulse frequency: 1 – 2000 Hz
Environmental conditions: 5 – 35°C at max. 75% humidity
Temperature range (operating temp.): 25°C (± 1°C)
Laser Wavelength: 10.6 µm
Laser Gas Consumption: approx. 10 l/h
Power Consumption: 12-59 kW (average for entire system)
Rotary Index (RI): Integrated capability for tube/profile processing; RI unit present per documentation
Power requirement (main unit nameplate): 200V, 50/60 Hz
Machine Weight: 13,550 kg
Oscillator nameplate: Model AF4000i-C, weight 1200 kg
Main unit nameplate: Model FO3015IIRI
Additional equipment
Pallet changer: LST3015 RI (YOM 2017, S/N 30153398)
Power supply/Transformer: TG513 (S/N 987/13)
Cooling/Extraction unit: PC5011FOm24kw (S/N 7196850001)
VPSS 3i Tube Full Solution Pack software
Steel-Prisma table support
Rotary Index pipe cutting unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
