AMADA - Quattro AF1000EIN-LAS-AMA-2006-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ AMADA Quattro AF1000E | Laser Cutting Machine For Sale

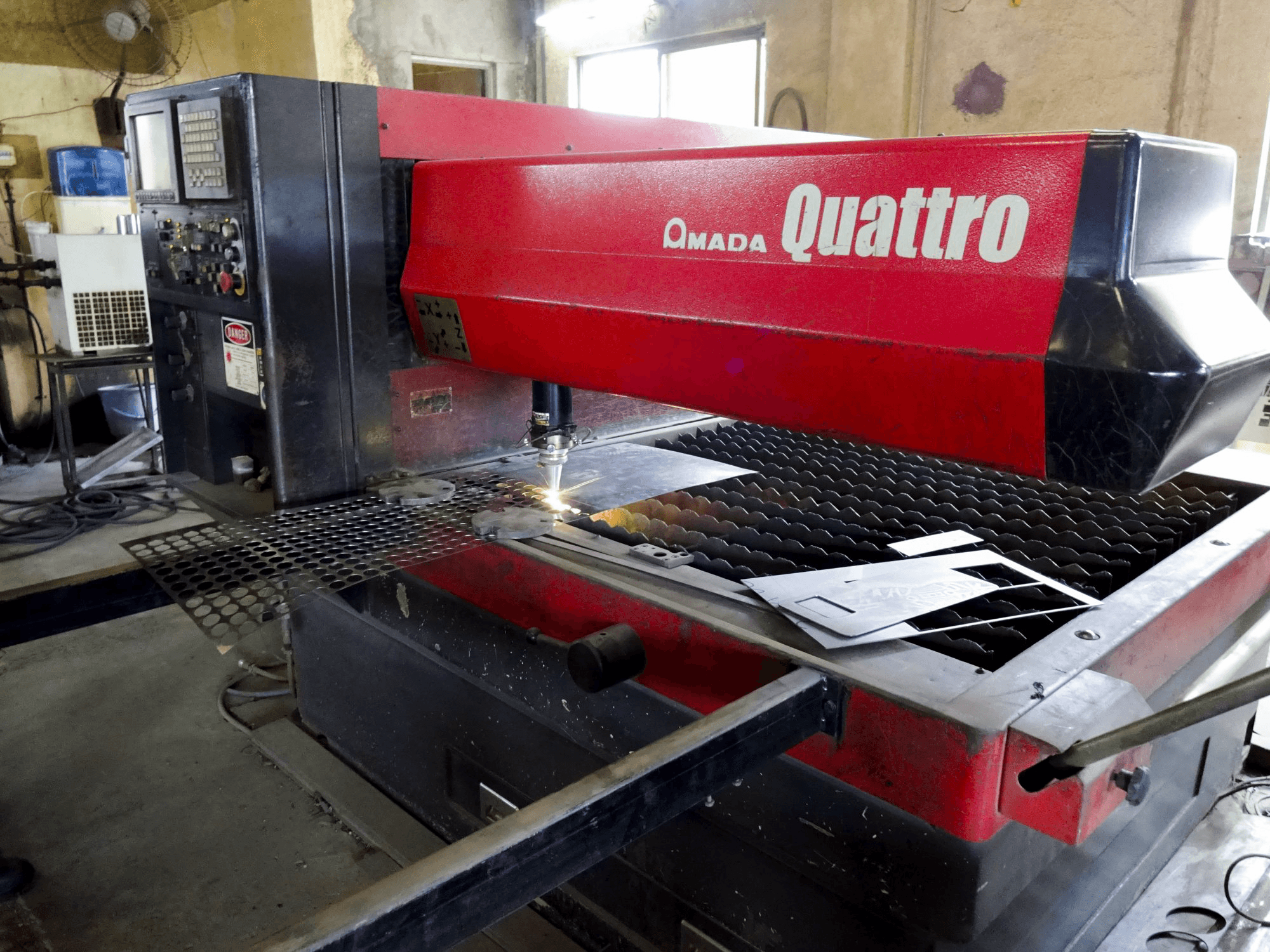

This AMADA Quattro AF1000E Laser Cutting Machine was manufactured in 2006 and has been operative for 19200 working hours ever since. In the past, this equipment has been used mainly for Job Shop tasks and has handled mild steel sheets of up to 2 mm in thickness. With a FANUC 160i-L Control unit, the model ensures a high productivity and efficiency: low foot print combined with minimal power consumption are two of its main features. On top, the Quattro AF1000E allows to process longer parts in the X direction.
Overview
- brand: AMADA
- year: 2006
- MODEL: Quattro AF1000E
- production hours: 19200
- application type: Cutting
- Location: India
- machine type: CO2 Laser Cutting Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - AMADA Quattro AF1000E
General Data
- Measurements width: 2500 mm
- Measurements depth: 3000 mm
- Measurements height: 1700 mm
- Machine weight: 3300 kg
Control Unit
- Model: 160i-L
- Brand: FANUC
Main drive
- Laserpower: 1 kW
- Laser type: Co2
- Laser brand: Fanuc
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 1250 mm
Max Material thickness
- Steel: 6 mm
- Stainless steel: 3 mm
- Aluminum: 2 mm
Media
- Main electronic connection: 200 V
- Power consumption: 25 kVA
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
