AMADA Vipros 255

Photo Gallery

AMADA - Vipros 255IN-PUN-AMA-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

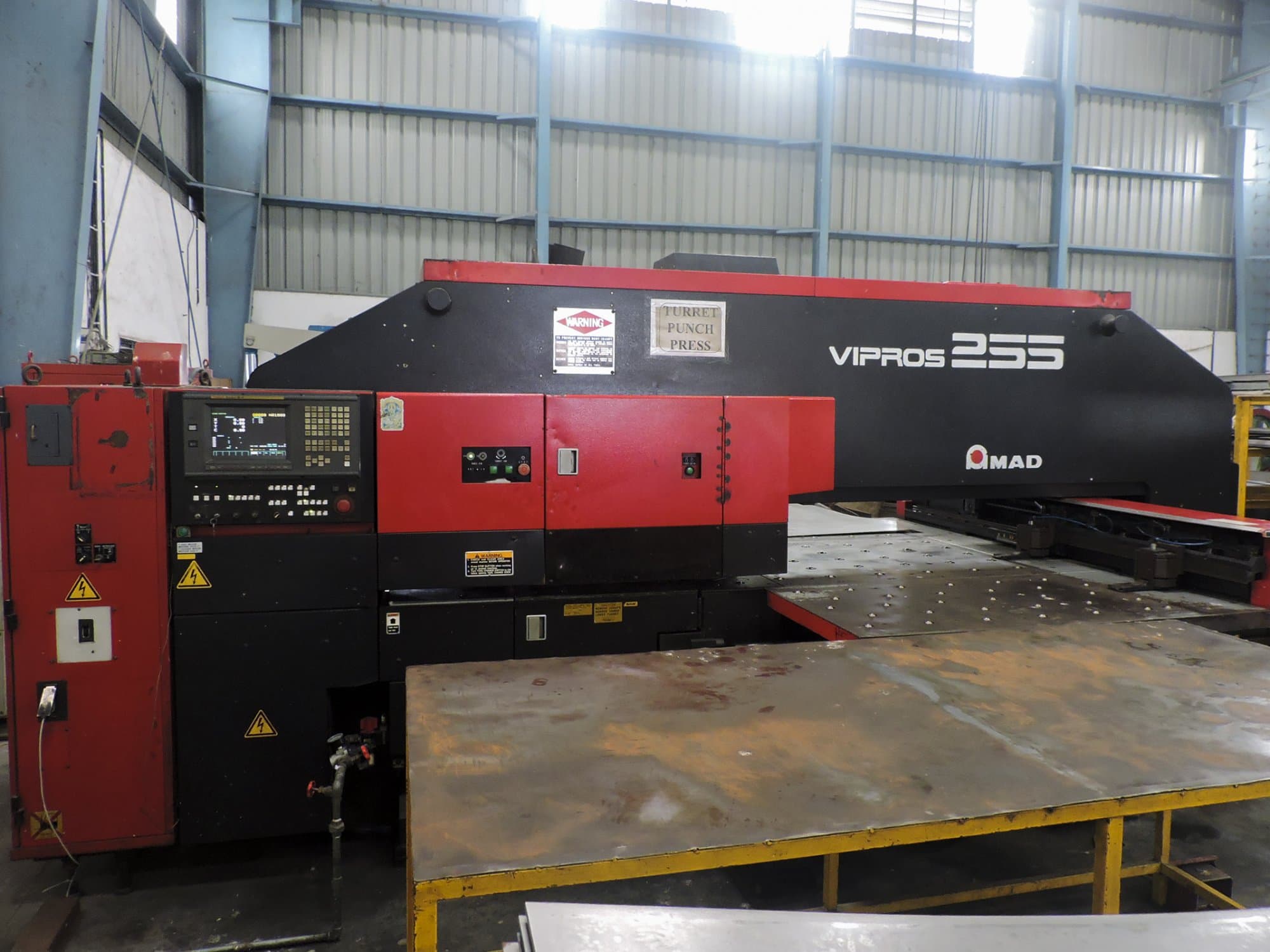

➤ AMADA Vipros 255 Turret Punching Machine For Sale

This AMADA Vipros 255 Turret Punching Machine is from 2005 and has gathered a total of 32400 production hours. Equipped with a FANUC 18-P Control unit with RS232 Interface, this young machine stands out through its big working table size and finds itself in an excellent condition. In the past, this machine has worked mostly on up to 2 mm thick mild steel, and several pieces of additional equipment, including a stabilizer, compressor, chiller and a set of turret tools, will be delivered with the machine.

Overview

brand: AMADA
year: 2005
MODEL: Vipros 255
production hours: 32400
application type: Punching
Location: India
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - AMADA Vipros 255

General Data

Measurements width: 2800 mm
Measurements depth: 5000 mm
Measurements height: 2200 mm
Machine weight: 9800 kg

Control Unit

Model: 18-P
Interface: RS232
Brand: FANUC

Main drive

Punching force: 196 kN
Maximum sheet thickness: 3 mm

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1250 mm

Tools

Number of index: 3
Number of stations: 31
Max tool diameter: 88.9 MM

Media

Main electronic connection: 400 V
Power consumption: 27 kVA
Air pressure: 5.5 bar
Oil tank: 150 L

Additional Equipment

- Stabilizer
- Compressor
- Chiller
- Set of turret tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
