AMADA - Vipros 368 Queen

2004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

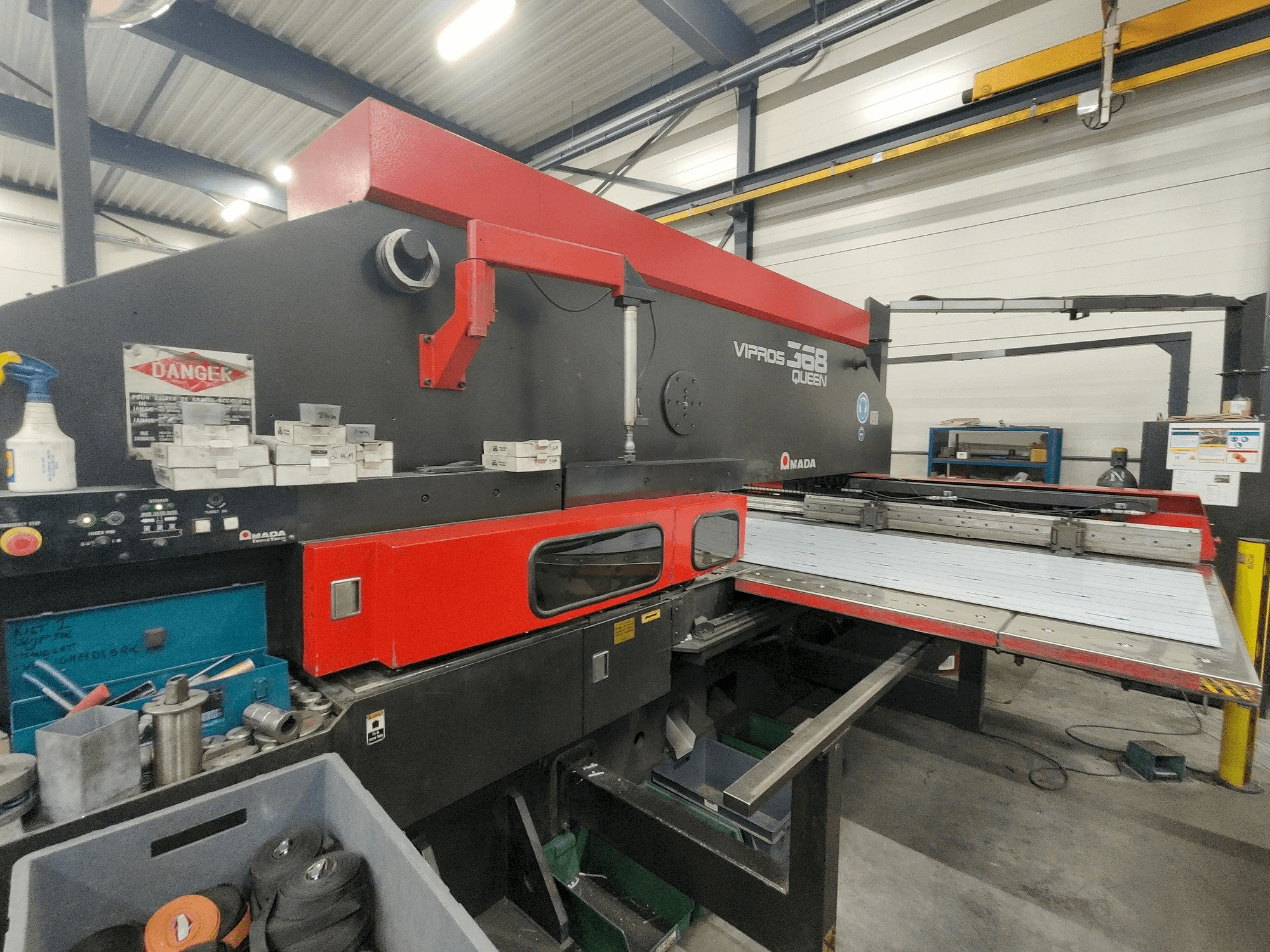

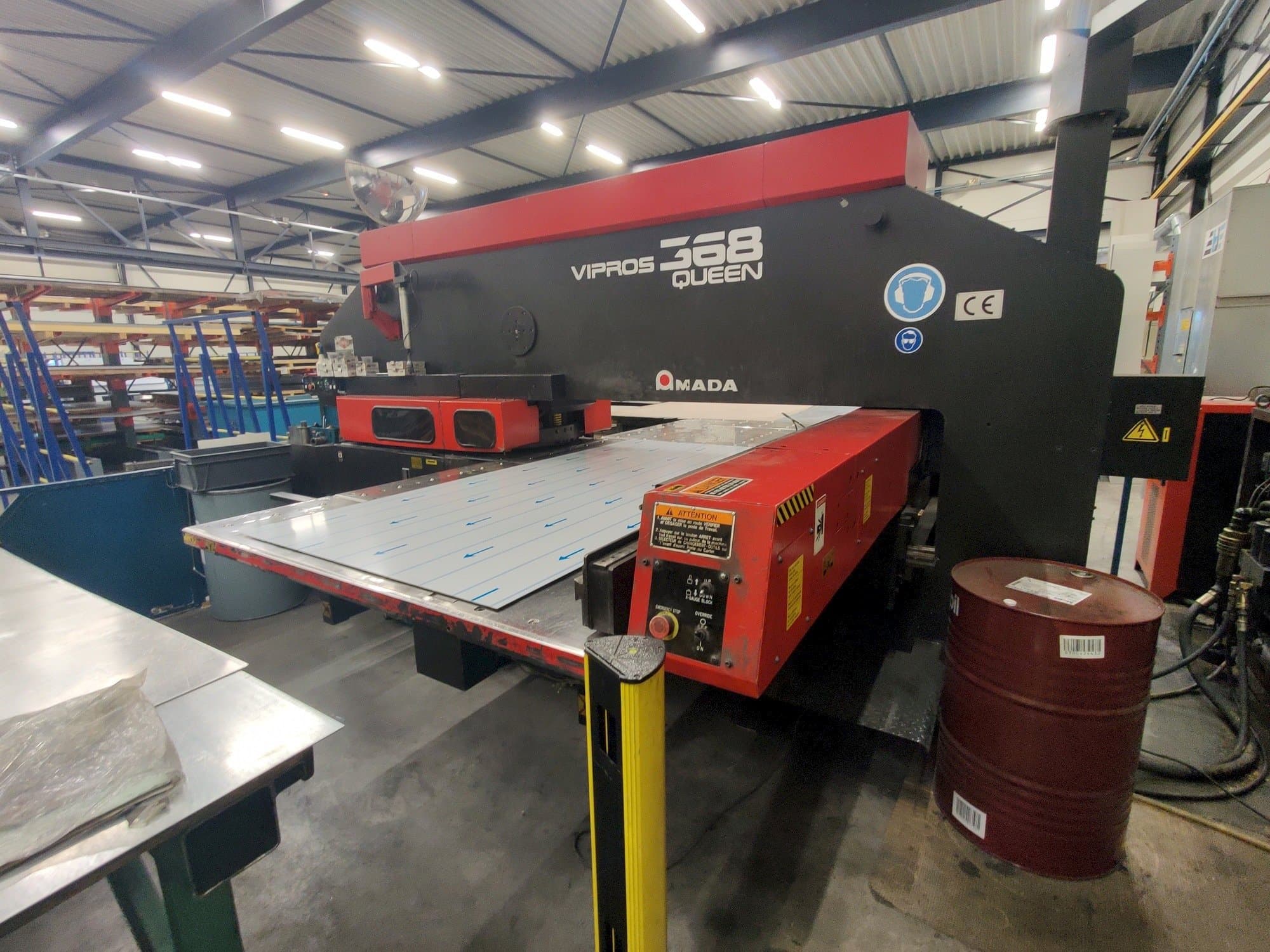

Amada Vipros 368 Queen Punching machine

This Amada Vipros 368 Queen Punching machine was made in 2004 in Japan. It is equipped with an Amada 04P-C control unit. The machine has a pressing force of 294 kN.

Overview

brand: AMADA
year: 2004
MODEL: Vipros 368 Queen
application type: Punching
Location: Netherlands
machine type: Punching Machine
availability: Sold
control unit brand: AMADA
GINDUMAC ID: NL-PUN-AMA-2004-00001

Technical Information

General Data

Measurements width: 4680 mm
Measurements depth: 4060 mm
Measurements height: 2310 mm
Machine weight: 14900 kg

Control Unit

Brand: AMADA
Model: 04P-C

Main drive

Pressing force: 294 kN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1270 mm

Table

Outer length: 4000 mm
Outer width: 1500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Sheet thickness: 6. 35 mm
- - Max. Sheet weight: 100 kg
- - Punching accuracy: 10. 1 mm
- - Strokes per minute: 8 mm
- - Max. Ram stroke length: 40 mm
- - Turret speed: 30 rpm
- - Approx 36 tools in turret
Qualitative Machine Benefits:
- - Tooling can come along
- - Excluding nesting software
- - Small leak on the oil pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
