ANAYAK VH-2200
ANAYAK - VH-2200
1998
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ANAYAK VH-2200 Milling machine

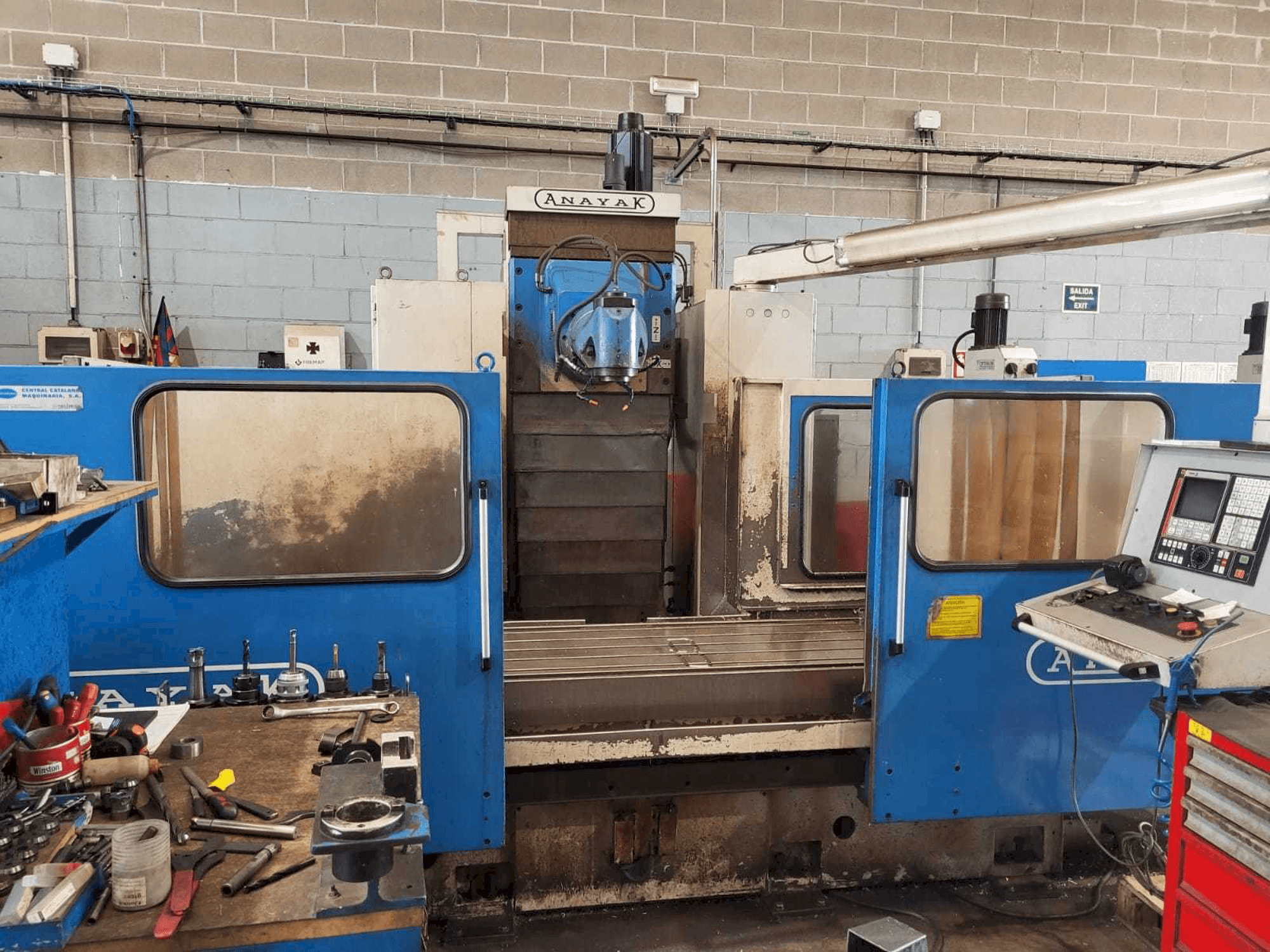

This ANAYAK VH-2200 Milling machine was made in 1998 in Spain and has 21901 production hours. It is controlled by a FAGOR 8025 control unit and has 3 axis. The machine has a spindle speed of 3000 rpm, and includes tools as additional equipment. Is in very good condition and well maintained.
Overview
- brand: ANAYAK
- year: 1998
- MODEL: VH-2200
- production hours: 21901
- application type: Milling
- Location: Spain
- machine type: Milling Machine
- availability: Sold
- control unit brand: FAGOR
- GINDUMAC ID: ES-MIL-ANA-1998-00003
Technical Information
General Data
- Measurements width: 4000 mm
- Measurements depth: 3500 mm
- Measurements height: 3000 mm
- Machine weight: 8000 kg
Control Unit
- Brand: FAGOR
- Model: 8025
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 3000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2000 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 800 mm
Workpiece
- Workpiece drm: 800 mm
- Workpiece x: 2000 mm
- Workpiece y: 800 mm
- Workpiece z: 800 mm
- Workpiece weight: 2000 kg
Table
- Outer length: 2100 mm
- Outer width: 700 mm
- TSlots size: 1
- Distance between: 800 mm
Tools
- Slots in storage: NO
- Max weight: 15 kg
- Max tool diameter: 200 mm
- Max tool length: 750 mm
- Type of tool holder: ISO-50
Additional Equipment
- - TOOLS
Additional Information
- Material type: Steel - aluminium
- material thickness: 200 mm
- Qualitative Machine Benefits:
- - Perfect conditions
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
