- ARBURG 320 S 350-150 Injection moulding machine

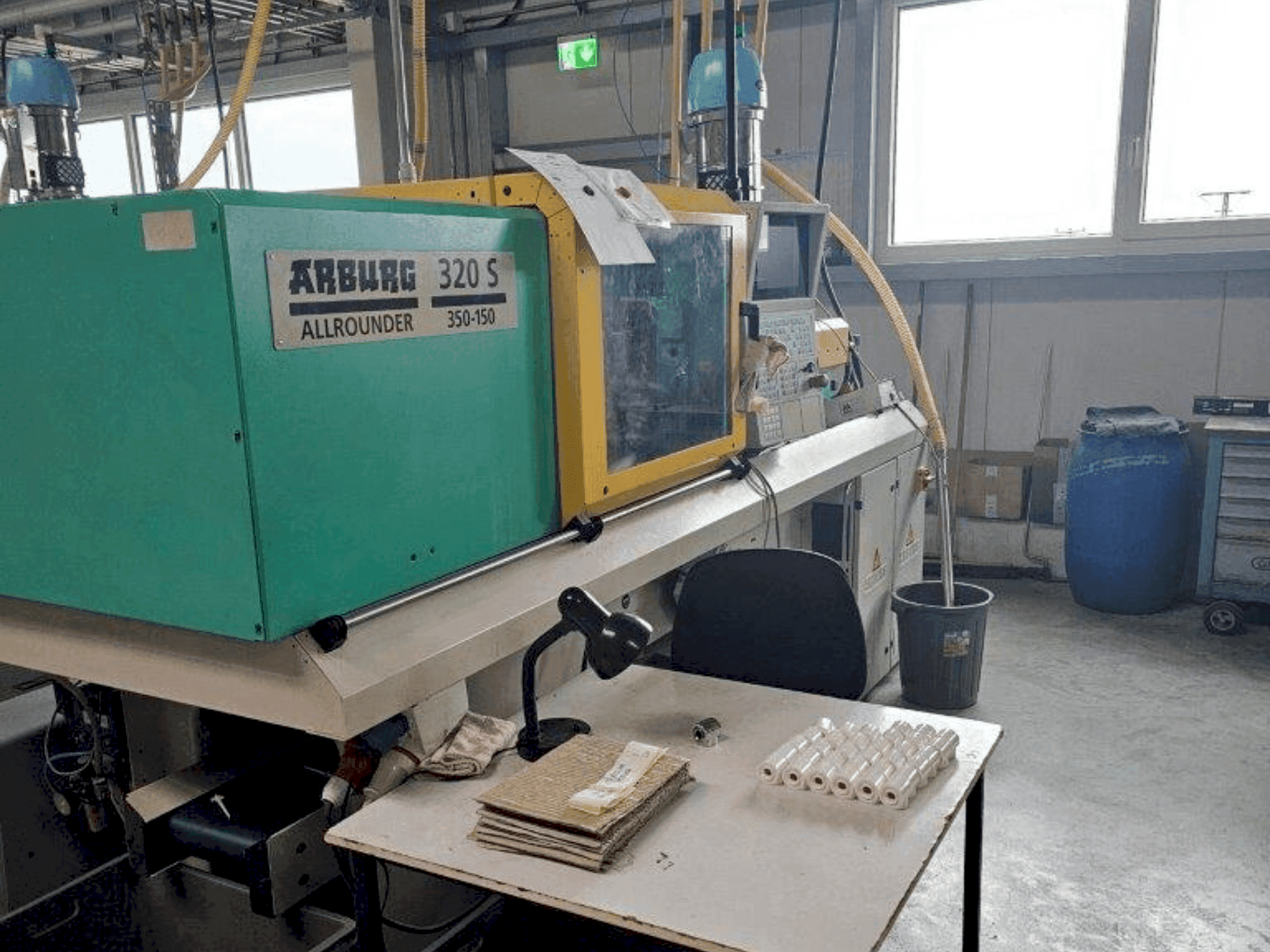

This ARBURG 320 S 350-150 Injection moulding machine was manufactured in 2001 in Germany. It has a clamping force of 350 kN and a screw diameter of 30 mm. The min. mold installation height is 172 mm and the platen size is 472 x 472 mm. In total it operated 73384 pump hours. See original tech specs sheet (DE) as PDF attached below.
Overview
- brand: Arburg
- year: 2001
- MODEL: 320 S 350-150
- production hours: 73384
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: ARBURG
Technical Information - Arburg 320 S 350-150
General Data
- Machine weight: 2250 kg
Control Unit
- Brand: ARBURG
- Model: SELOGICA 3.080
Injection Unit
- Screw diameter: 30 mm
- Stroke volume: 78 cm3 CM³
- Injection pressure: 2210 bar
Clamping unit
- Clamping force: 350 kN
- Max open daylight: 270 x 270 mm
- Distance between bars: 472 x 472 mm
- Mould height min: 175 mm
Additional Information
- Technical Machine Benefits:
- - Mold installation height min. 175 mm
- - Clear column spacing 270 x 270 mm
- - Mold mounting platens (w x h) 472 x 472
- - Drive power of the hydraulic pump 11 kw
- - Effective screw length l/d 20
- - Screw stroke max. 110 mm
- - Calculated stroke volume max. 78 cm3
- - Injection part weight max. 71 g/ps
- - Injection pressure max. 2210 bar
- - Injection flow max. 82 cm3/s
- - Oil filling 120 l // Pump hours 73,384 h
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
