➤ Used Arburg Allrounder 520S 1600-400 For Sale

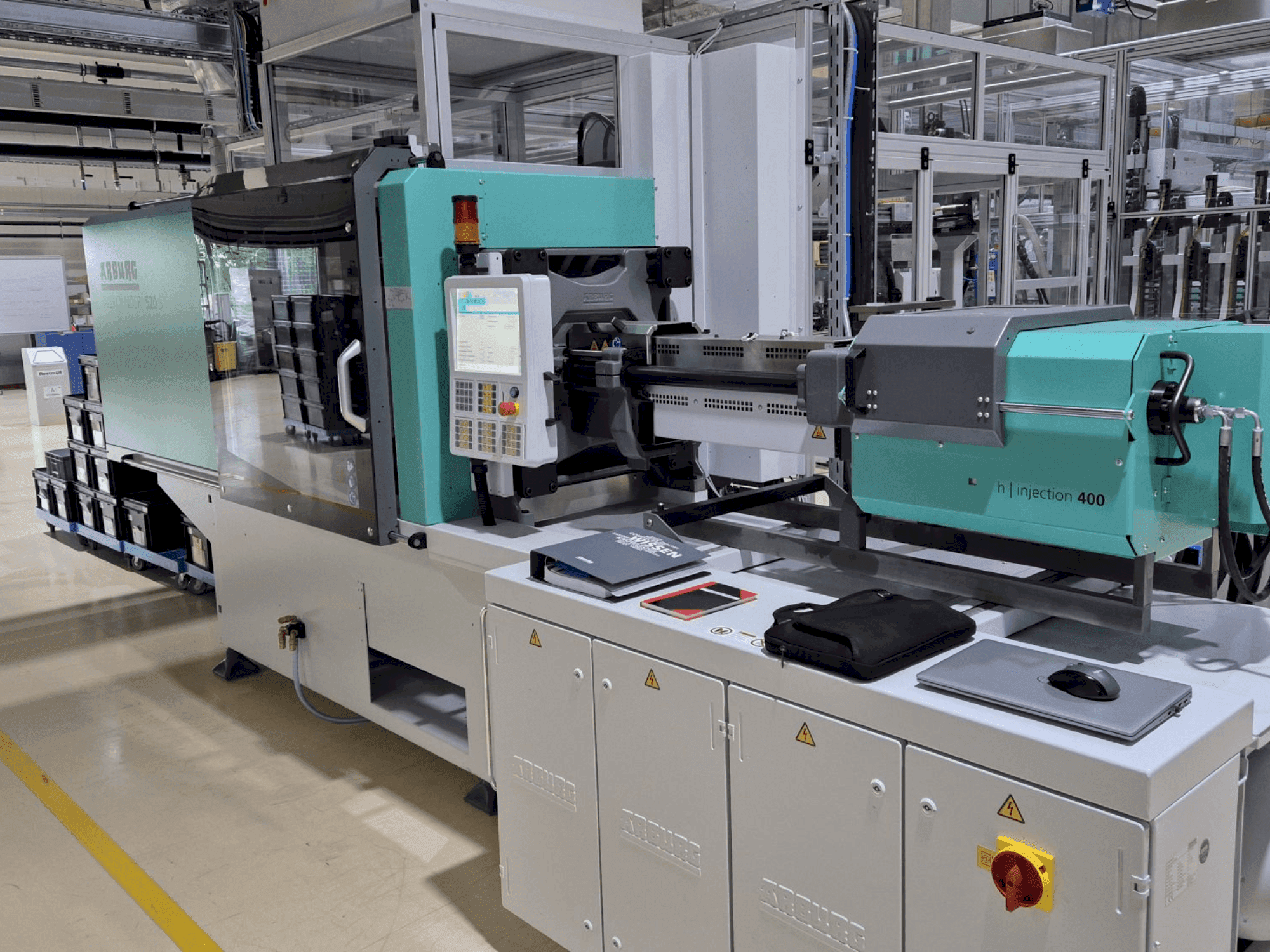

This 3-axis Arburg Allrounder 520S 1600-400 was manufactured in 2021. It features a screw diameter range of 35-45 mm and a clamping force up to 2000 kN. The machine includes a removal robot and an enclosure with a FilterFanUnit, ensuring clean operations. Ideal for precision plastic processing, it offers a mold clamping height of 250 mm and platen spacing of 825 mm. Contact us for more information about this machine.

Overview

brand: Arburg
year: 2021
MODEL: Allrounder 520S 1600-400
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg Allrounder 520S 1600-400

Main drive

Number of axis: 3

Clamping unit

Clamping force: 1300 / 1600 / 2000 kN

Additional Information

Additional equipment

Cooling water connection: Max. temperature: 30 °C, Min. Δp: 1.5 bar | DN 25

Machine Benefits

Technical Machine Benefits

Sound pressure level: 70 db(a) | ± 3

Extra Information

Screw Diameter: 290 unit: 30 / 35 / 40 mm 400 unit: 35 / 40 / 45 mm 800 unit: 45 / 50 / 55 mm Injection Pressure (Max.): 290: 2500 / 2000 / 1530 bar 400: 2500 / 2000 / 1580 bar 800: 2470 / 2000 / 1650 bar Shot Weight (Max. g PS): 290: 97 / 132 / 172 g 400: 141 / 184 / 232 g 800: 291 / 359 / 434 g Heating Output 290: 7.7 kW | 5 zones 400: 9.7 kW | 5 zones 800: 19.9 kW | 8 zones Net Machine Weight: 290: 5600 kg 400: 5900 kg 800: 6350 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
