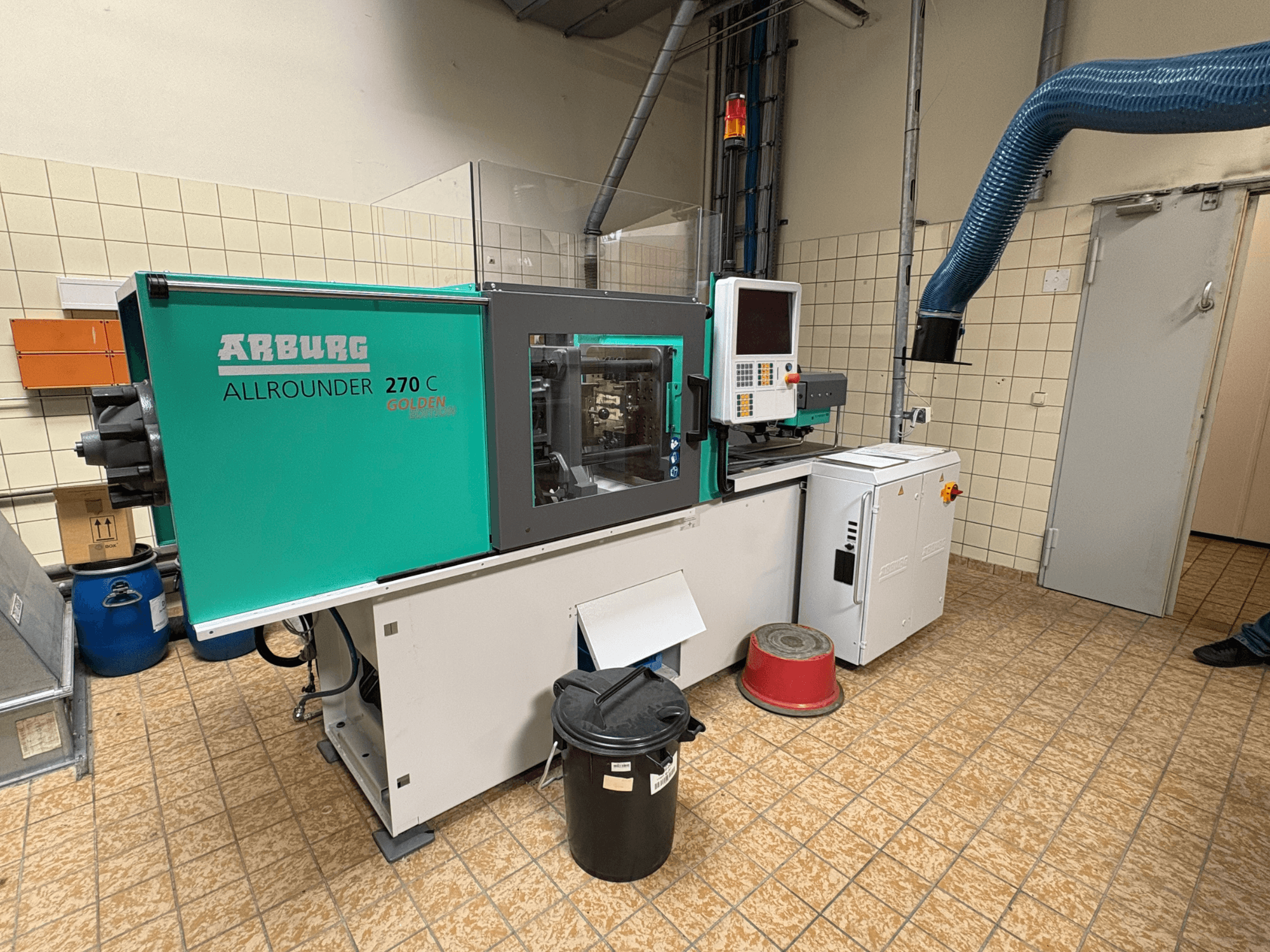

Arburg - ALLROUNDER 270 C 400-100DE-INJ-ARB-2019-00004

- Control System: SELOGICA direct

- Clamping Force: 400 kN

- Opening Force: 130 kN

- Opening Stroke: max. 350 mm

- Mold Mounting Height (min.): 200 mm

- Platen Distance (max.): 550 mm

- Distance Between Tie-Bars (H x V): 270 x 270 mm

- Size of Mold Platens (H x V): max. 446 x 446 mm

- Weight of Movable Mold Half: max. 180 kg

- Ejector Force / Stroke: max. 30 kN / 125 mm

- Dry Cycle Time (EUROMAP): 1.2 - 189 s-mm

- Injection Unit Size: 100

- Screw Diameter: 20 mm

- Effective Screw Length (L/D): 25

- Screw Stroke: max. 100 mm

- Calculated Stroke Volume: max. 31 cm³

- Shot Weight (PS): max. 29 g

- Material Throughput (PS / PA6.6): max. 5.5 kg/h / 2.8 kg/h

- Max. Injection Pressure: 2500 bar

- Max. Holding Pressure: 2500 bar

- Max. Injection Rate: 64 cm³/s

- Max. Screw Torque: 120 Nm

- Nozzle Contact Force / Retraction Stroke: max. 50 kN / 180 mm

- Heating Capacity: 4.95 kW

- Hopper Capacity: 1.8 L

- Operating Voltage: 400 V 3~ 50 Hz

- Control Voltage: 230 V ~ 50 Hz / 24 V DC

- Motor / Heating Rated Current: 42 A / 11 A

- Total Rated Current: 53 A

- Total Connected Load: 29 kW

- Pump Motor Power: 11 kW

- Hydraulic Oil Capacity: 165 L

- Net Machine Weight: 2,180 kg
