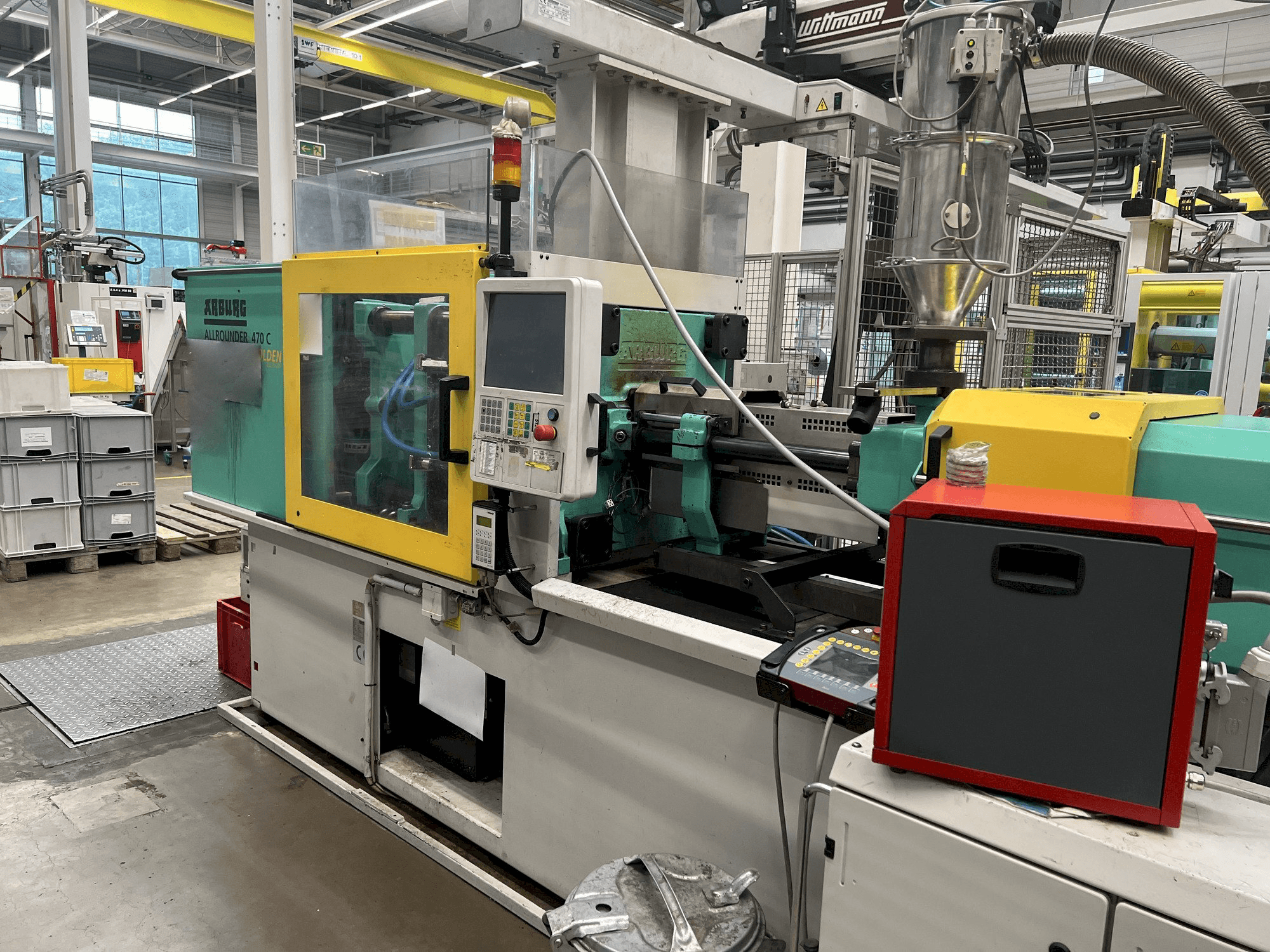

Front view of Arburg 470C 1500 - 400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 470C 1500 - 400

Arburg - 470C 1500 - 400DE-INJ-ARB-2006-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 470C 1500 - 400 Injection moulding machine

This Arburg 470C 1500 - 400 Injection moulding machine was manufactured in the year 2006 and has 76148 pump hours, and 63094 automatic hours. It is equipped with an ARBURG control unit and has 3 axis. The machine has a clamping force of 1500 kN and a screw diameter of 40 mm.

Overview

brand: Arburg
year: 2006
MODEL: 470C 1500 - 400
production hours: 76148
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg 470C 1500 - 400

Control Unit

Brand: ARBURG

Main drive

Number of axis: 3

Injection Unit

Screw diameter: 40 mm
Stroke volume: 201 cm^3 CM³
Injection pressure: 2000 bar

Clamping unit

Clamping force: 1500 kN
Opening stroke: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. Wkz installation height (mm) : 250
- - Clear tie bar spacing horizontal x vertical : 470x470
- - Centring ring Ø (ds/as) : 125/125
- - Core pulls: 1
- - Handling: 3-axis cnc robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
