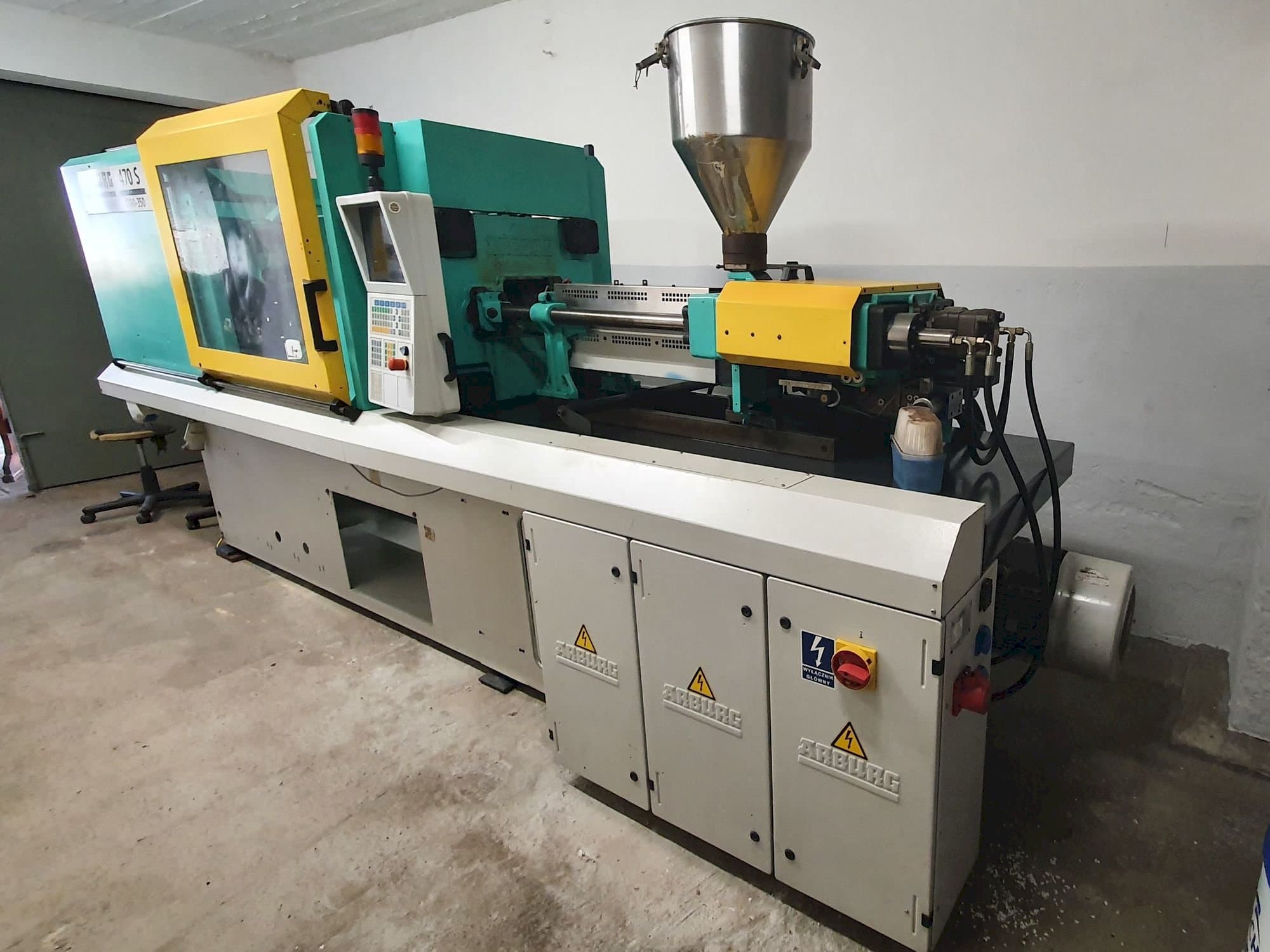

Front view of Arburg 470s ALLROUNDER 1300-350 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 470s ALLROUNDER 1300-350

Arburg - 470s ALLROUNDER 1300-350PL-INJ-ARB-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg 470s ALLROUNDER 1300-350 Injection Moulding

This Arburg 470s ALLROUNDER 1300-350 Injection Moulding Machine was made in 2002. It has been working for 52790 hours. This machine can perform with a clamping force of 1300 kN.

Overview

brand: Arburg
year: 2002
MODEL: 470s ALLROUNDER 1300-350
production hours: 52790
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg 470s ALLROUNDER 1300-350

General Data

Measurements width: 4180 mm
Measurements depth: 1730 mm
Measurements height: 2100 mm
Machine weight: 6100 kg

Clamping unit

Clamping force: 1,300 kN
Distance between bars: 850 mm
Mould height min: 275 mm
Ejector stroke: 175 mm
Ejector force for / back: 52 kN

Media

Main electronic connection: 3 x 400V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Centering d of the fixed plate: 125 mm
- - Table top dimensions vertical: 650 mm
- - Dimension of the table plates horizontally: 650 mm
- - Opening distance: 575 mm
- - Clearance between columns horizontally: 470 mm
- - Clearance between columns vertical: 470 mm
- - Table top dimensions vertical: 650 mm
- - Power connection: 69 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
