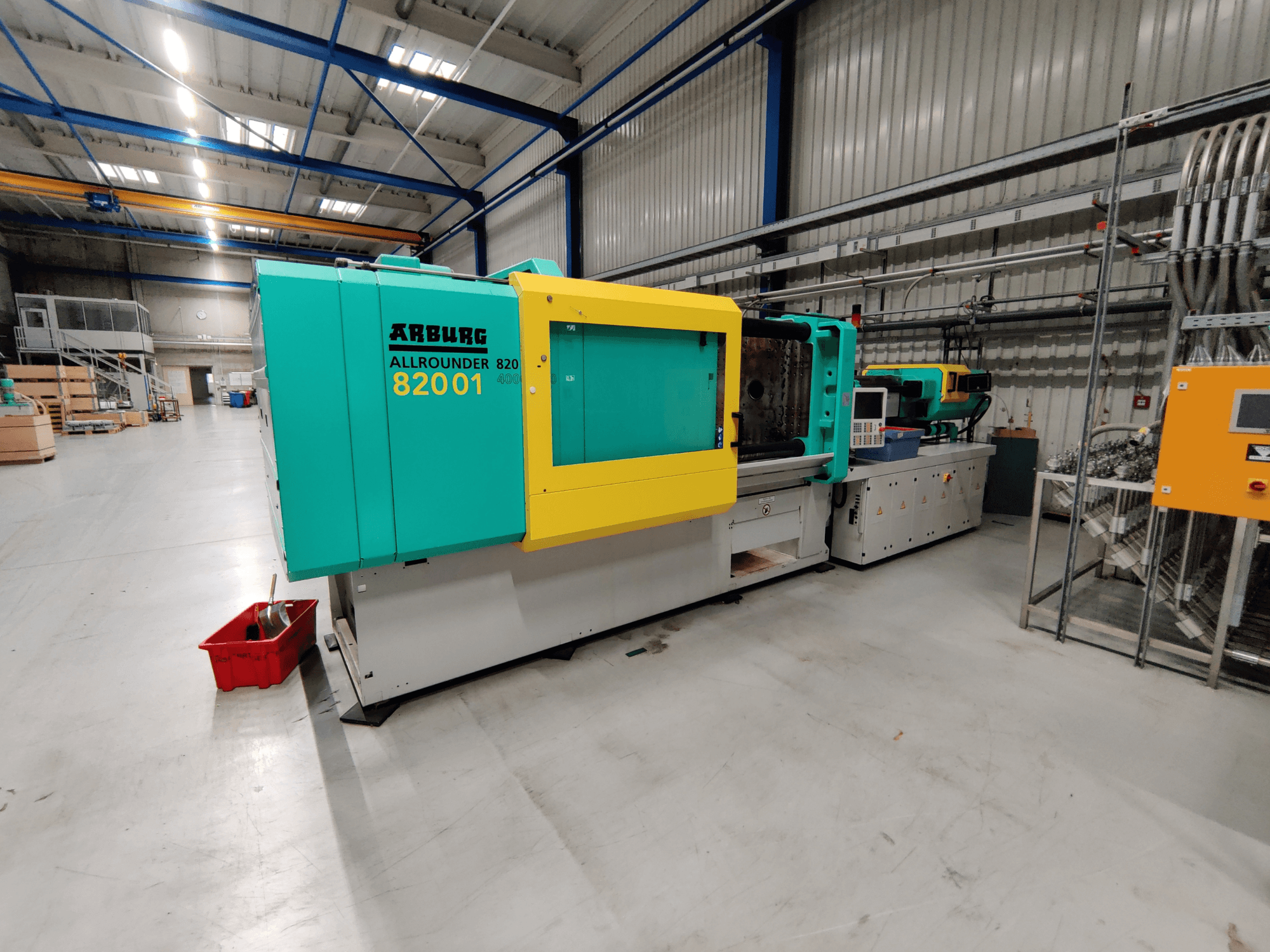

This 3-axis Arburg 820 S 4000-2100 hydraulic injection moulding machine was manufactured in 2016. It features a clamping force of 4000 kN, a platen size of 1171 x 1171 mm, and a maximum mould installation height of 850 mm. With a screw diameter of 70 mm and an injection unit of 2100, this machine is well-equipped for high-quality moulding capabilities. Consider the opportunity to buy this Arburg 820 S 4000-2100 hydraulic injection moulding machine. Contact us for further details.
Overview
- brand: Arburg
- year: 2016
- MODEL: 820 S 4000-2100
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Arburg 820 S 4000-2100
Dimensions
- Machine Length: 8000 mm
- Machine Weight: 22700 kg
- Machine Width: 2300 mm
Technical Specification
- Clamping Force: 4000 kN
- Screw Diameter: 70 mm
Additional Information
Control system: SELOGICA direct
Distance between tie bars: 820 x 820 mm
Platen size: 1171 x 1171 mm
Max. mould installation height: 850 mm
Max. opening stroke: 700 mm
Max. daylight: 1550 mm
Ejector force: 100 kN
Ejector stroke: 250 mm
Max. weight of movable mould half: 4500 kg
Injection unit: 2100
Heating zones: 6 + nozzle
Drive power (hydraulic pump): approx. 55 kW
Total installed power: 88.9–96.2 kW
Total connected load: 124 kW
Operating voltage: 400 V 3~ 50 Hz
Machine cycles: 4,157,591
Pump hours: 69,800 h
Automatic operation hours: 58,556 h
Machine options: 2x core pulls, AES Energy Saving System
Additional equipment
ARBURG Multilift Select 15 kg robot (2016, transverse)
Load capacity: 15 kg
Y-axis stroke extension: 1400 mm
C-axis: pneumatic 0/90°, 28 Nm torque
Vacuum equipment: 2 circuits (23 l/min each)
Gripper interface: 8 inputs / 4 outputs (programmable)
Valve equipment: 5/3-way valve
Safety: monitored adjustable workspace
Conveyor belt: 800 x 2500 mm
Air blow unit
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
