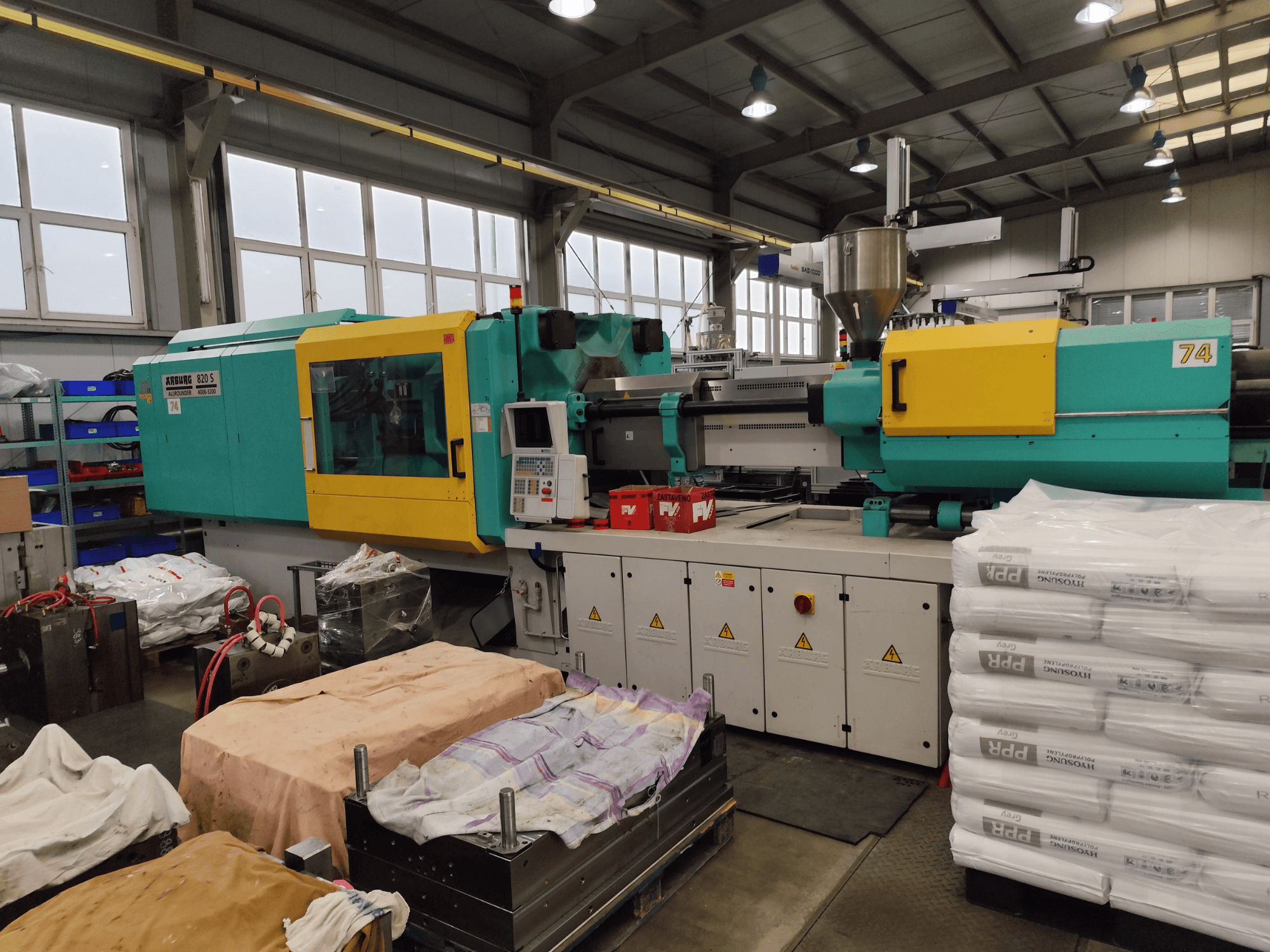

Injection molding machine by Arburg, front view, teal and yellow exterior, with tooling and materials nearby.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg 820S-4000-3200

Photo Gallery

Arburg - 820S-4000-3200CZ-INJ-ARB-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg 820S-4000-3200 For Sale | gindumac.com

This Arburg 820S-4000-3200 was manufactured in 2005. It features a clamping force of 4000 kN, a screw diameter of 90 mm, and a shot weight of 1860 g. The machine operates with a SELOGICA control system and has a total installed power of 96.2 kW. Consider the opportunity to buy this Arburg 820S-4000-3200 hydraulic injection moulding machine. Contact us for further details regarding this machine.

Overview

brand: Arburg
year: 2005
MODEL: 820S-4000-3200
production hours: 79600
application type: Injection Moulding
Location: Czech Republic
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 820S-4000-3200

Dimensions

Machine Weight: 22500 kg

Technical Specification

Clamping Force: 4000 kN
Max. Shot Weight: 1860 g
Screw Diameter: 90 mm

Additional Information

Opening force: 800 kN
Opening stroke: 700 mm
Mold height: 350 mm
Distance between platens: 1050–1550 mm
Clear tie-bar distance: 820 × 820 mm
Mold mounting platen size: 1171 × 1171 mm
Mold half weight: 4500 kg
Ejector force: 100 kN
Ejector stroke: 250 mm
Screw diameter: 90 mm
Shot volume: 2036 cm³
Shot weight (PS): 1860 g
Injection pressure: 1580 bar
Injection flow rate: 502 cm³/s
Injection flow rate with accumulator: 1964 cm³/s
Hydraulic pump drive power: 55 kW
Installed total power: 96.2 kW
Number of heating zones: 9
Control system: SELOGICA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
