Arburg Allrounder 221-75-350
Arburg - Allrounder 221-75-350
1985
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- Arburg Allrounder 221-75-350

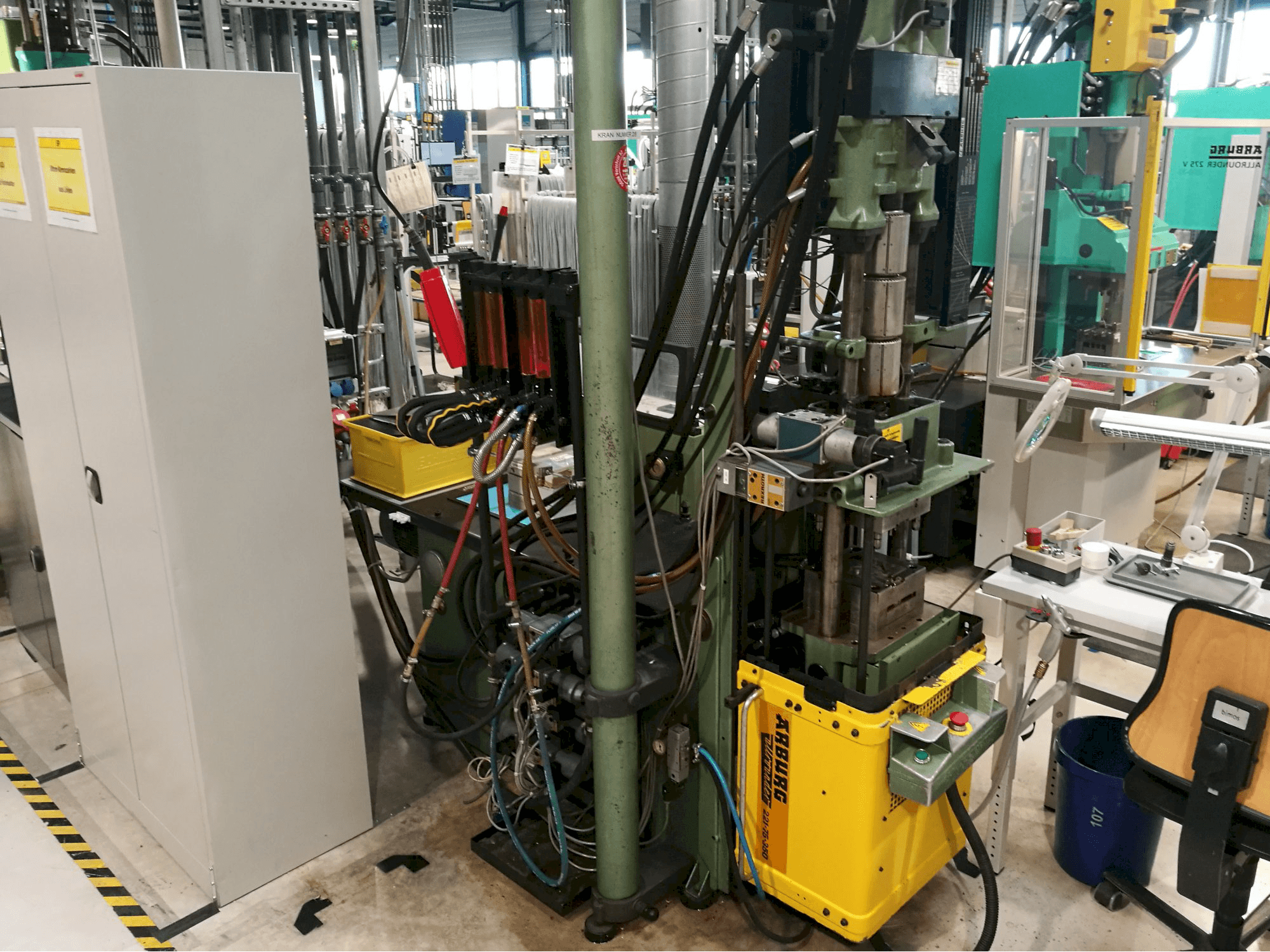

This Arburg Allrounder 221-75-350 from 1985 was made in Germany and counts with 38942 production hours. Equipped with an Arburg Polytronica Control unit, this machine has mainly worked for the medical technology industry in the past.
Overview
- brand: Arburg
- year: 1985
- MODEL: Allrounder 221-75-350
- production hours: 38942
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Arburg
- GINDUMAC ID: DE-INJ-ARB-1985-00001
Technical Information
General Data
- Measurements width: 2700 mm
- Measurements depth: 1200 mm
- Measurements height: 2100 mm
- Machine weight: 970 kg
Control Unit
- Brand: Arburg
- Model: Polytronica
- CNC main language: German
Injection Unit
- Screw diameter: 22 mm
- Stroke volume: 38 cm³
- Injection pressure: 1570 bar
- Screw speed: 400 rpm
- Heating capacity: 3.46 kW
- Nozzle pressure: 50kN
Clamping unit
- Clamping force: 350 kN
- Opening stroke: 200 mm
- Max open daylight: 475 mm
- Distance between bars: 221 mm
- Mould height min: 150 mm
- Mould height max: 300 mm
- Size of mold platens: 346 mm
- Ejector stroke: 100 mm
- Ejector force for / back: 17 kN
Media
- Main electronic connection: 380 V
- Power consumption: 11 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
