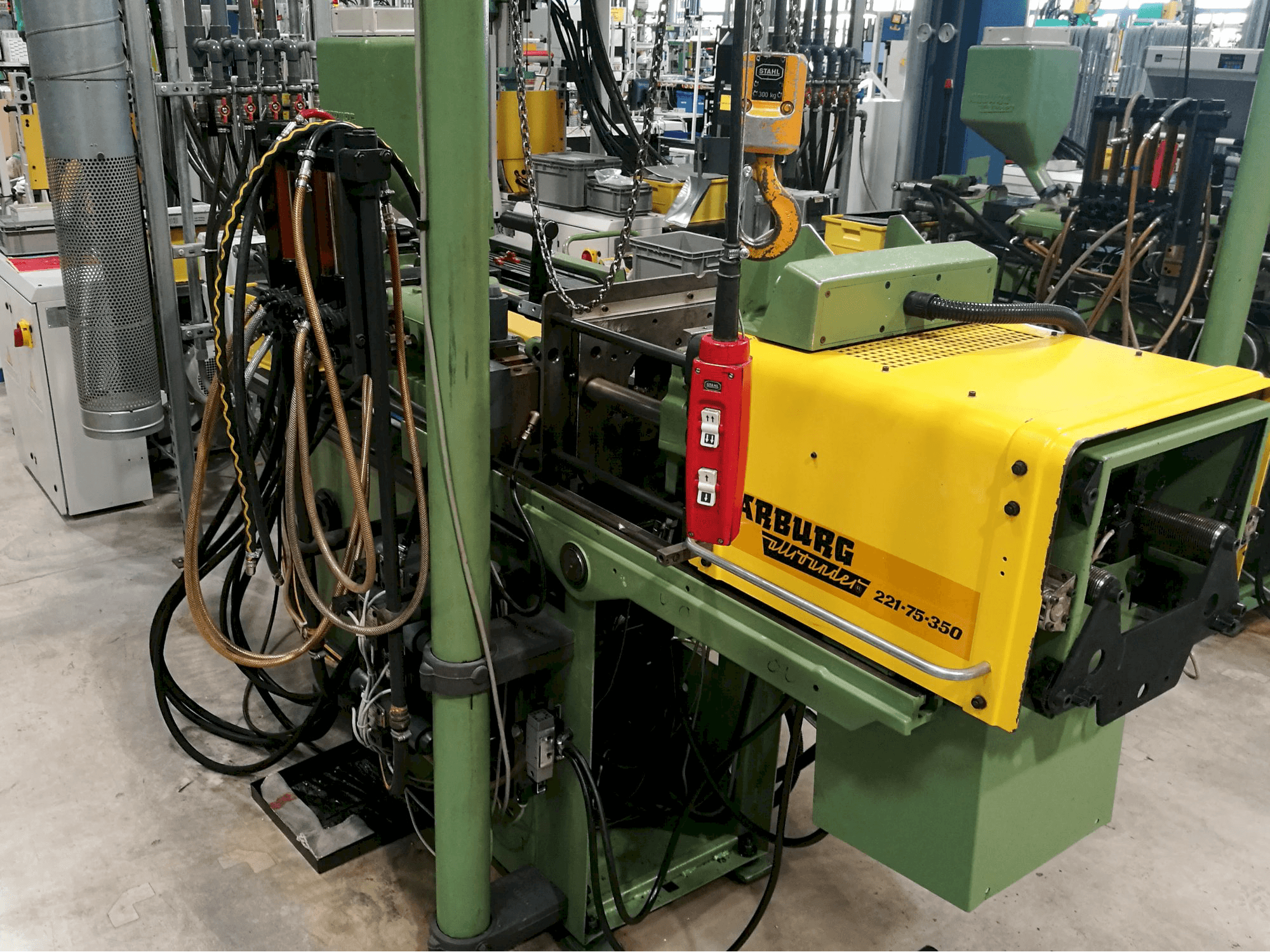

Right view of Arburg Allrounder 221-75-350 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 221-75-350

Arburg - Allrounder 221-75-350DE-INJ-ARB-1989-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 221-75-350 Injection Moulding Machine

This Arburg Allrounder 221-75-350 Injection Moulding Machine from 1989 was made in Germany and counts with a production time of 39075 hours. Operated through an Arburg Polytronica Control unit, this machine incorporates a clamping force of 350 kN.

Overview

brand: Arburg
year: 1989
MODEL: Allrounder 221-75-350
production hours: 39075
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg Allrounder 221-75-350

General Data

Measurements width: 2700 mm
Measurements depth: 1200 mm
Measurements height: 2100 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
CNC main language: German
Brand: ARBURG

Injection Unit

Screw diameter: 22 mm
Stroke volume: 38 cm³
Injection pressure: 1570 bar
Screw speed: 400 rpm
Heating capacity: 3.6 kW
Nozzle pressure: 50kN

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Max open daylight: 475 mm
Distance between bars: 221 mm
Mould height min: 150 mm
Mould height max: 300 mm
Size of mold platens: 346 mm
Ejector stroke: 100 mm
Ejector force for / back: 17 kN

Media

Main electronic connection: 380 V
Power consumption: 11 kW
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
