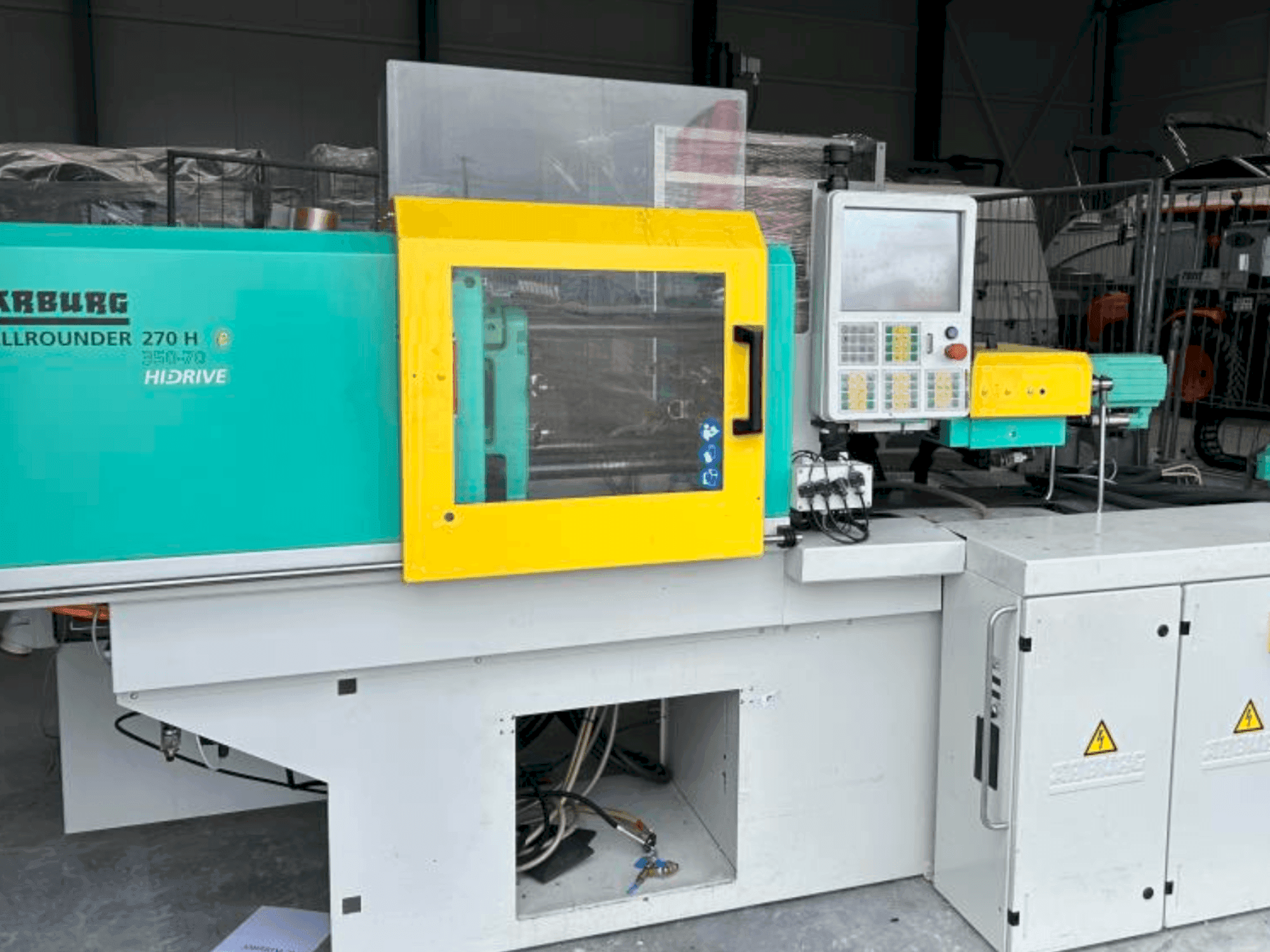

Front view of Arburg Allrounder 270 H 350-70  machine

Arburg - Allrounder 270 H 350-70DE-INJ-ARB-2011-00010

13,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Arburg Allrounder 270 H 350-70 was manufactured in 2011. It features a screw diameter of 30 mm, a maximum injection pressure of 2000 bar, and a nozzle lift-off stroke of 210 mm. With 20,000 operating hours, this hydraulic injection moulding machine includes machine handling. Consider the opportunity to buy this Arburg Allrounder 270 H 350-70 hydraulic injection moulding machine. Contact us for more information.

Overview

  • brand: Arburg
  • year: 2011
  • MODEL: Allrounder 270 H 350-70
  • production hours: 20000
  • application type: Injection Moulding
  • Location: Latvia
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Arburg Allrounder 270 H 350-70

Injection Unit

  • Screw diameter: 30 mm
  • Stroke volume: 85 cm³
  • Injection pressure: 2000 bar

    Additional Equipment

    • - Machine handling is included.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Operating voltage: 400 v
        • - Control voltage: 230 v
        • - Total rated current: 70 a
        • - Total connected load: 43 kw
        • - Screw torque: 250 nm
        • - Injection flow: 312 bar
        • - Nozzle lift-off stroke: 210 mm
        • - Nozzle contact force: 50 kn

      Extra information

      • - EUROMAP size specification 350-70/ Clamping unit: Clamping force 350 kN/ Mold retention force 0.5-40 kN/ Opening stroke 200 mm/ Mold installation height 150-350 mm/ Distance between clamping platens 350-550 mm/ Inter-tie bar spacing 270 x 270 mm/ Mold clamping platens (w x h) 380 x 380 mm/ Weight of moving tool half 200 kg/ Ejector force 16 kN/ Ejector stroke 60 mm/ Hydraulics, drive, other: Hydraulic pump drive power 3 kW/ Dry run time during opening stroke" Total installed power 0.7-189 s-mm/ Control cabinet: Safety regulations DIN EN 60204/ Socket combination (1 Schuko, 1 Cekon) 1x16 A/ Injection unit: Screw diameter 18 mm/ Effective screw length 24.5 L/D/ Screw travel 90 mm/ Calculated stroke 23 cm/ Shot weight 21 g PS/ Material throughput 4.1 kg/h/ Injection pressure 2500 bar/ Injection flow with accumulator 138 cm/ Back pressure positive/negative 350 bar/ Screw circumferential speed 49 m/min/ Screw torque 90 Nm/ Nozzle contact force 50 kN/ Nozzle lift-off stroke 150 mm/ Installed cylinder heating power / heating zones 3.75 kW/ Installed nozzle heating power 0.3 kW/ Granule hopper capacity 25 l/ Dimensions and weights of the base machine: Oil tank 115 l/ Net weight 2300 kg/ Electrical connection (pre-fuse) motor 50 A

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
